the control knob clockwise further. To reduce the blower speed,
rotate the knob counter clockwise and select a lower number.
10.9 Temperature Control
A/C LO A/C HI
A B
W12J08
MANUAL
A B
Auto Climate Contr ol System
W12J26

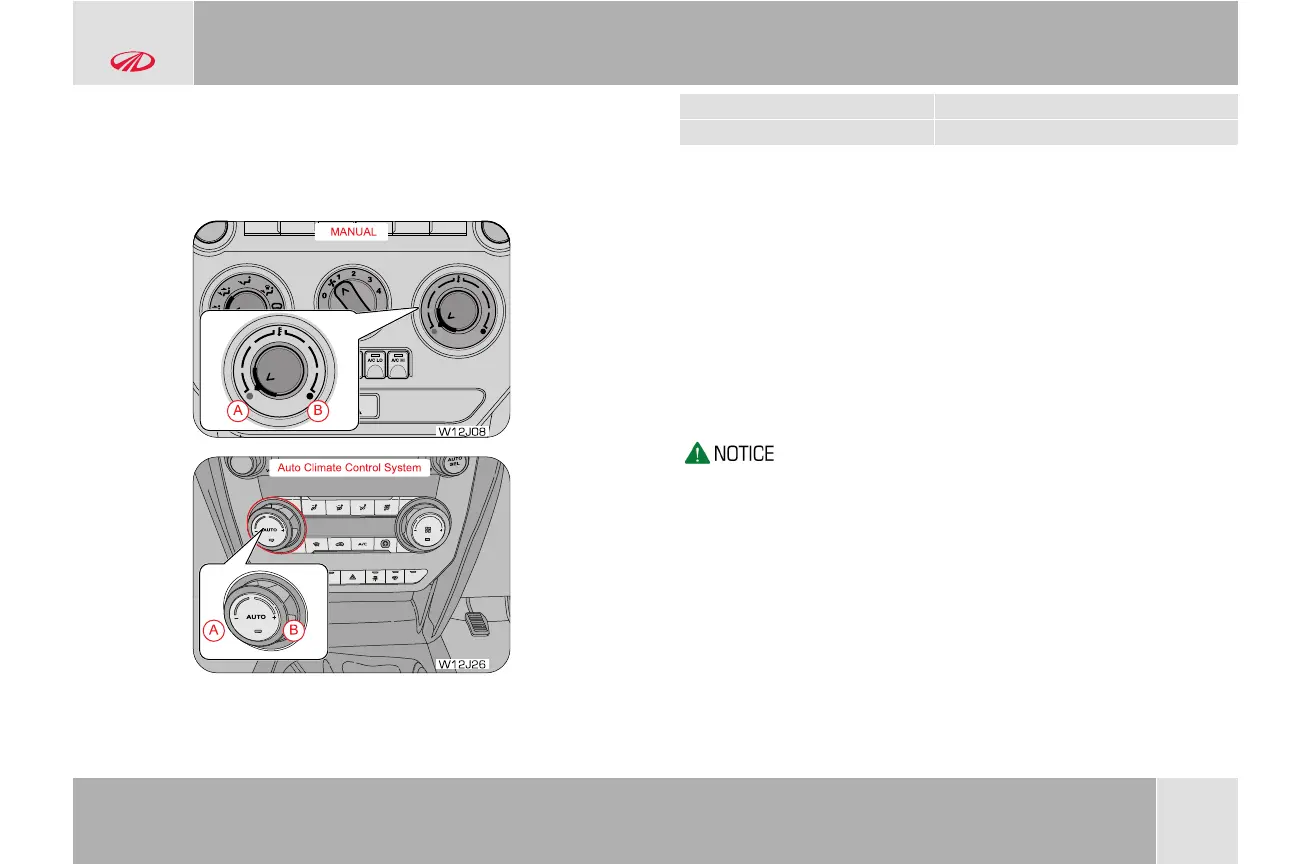

A Cool Air
B Hot Air
By operating the temperature control knob, temperature of air
being discharged from various vents can be adjusted to the desired
level. Engine coolant is utilized to heat, whereas the air conditioner
is used to cool the air inside the AC unit. Based upon selected
position of the temperature control dial, the desired discharged air
temperature can be obtained.
By rotating the dial counter-clockwise and setting it to the extreme
left position, cool air is discharged. When the dial is rotated
clockwise, the discharged air progressively starts getting warmer.
By rotating the dial further in the clockwise direction and setting it
to the extreme right position, hot air is discharged.
‘—’ represents cooling and ‘+’ represents heating.
10.10 Air Intake Mode Control
By operating the air intake control switch, either fresh air mode or
recirculated air mode can be selected.
