4-4
© Copyright Mahindra & Mahindra Ltd.012016
ENGINE !
Left Turn Indicator
Right Turn Indicator
Headlamp High Beam
Malfunction Lamp (OBD)
Check Engine Lamp
Door Ajar Lamp
High Temperature Lamp
Low Oil Pressure Lamp
Park/Low Brake Fluid Lamp
Security Lamp
Battery Charge Lamp
Seat Belt Warning Lamp
4WD High Lamp
Parking Lamp
4WD Low Lamp Front Fog Lamp
Water in Fuel Warning Lamp
Airbag Warning Lamp TPMS Warning Lamp Cruise Control Indicator
ABS Warning Lamp
Low Fuel Warning Lamp
4WD
LOW
o know more about warning & telltale lamps, download the handy “Scorpio” app
from Google playstore or Appstore
Glow Plug Lamp

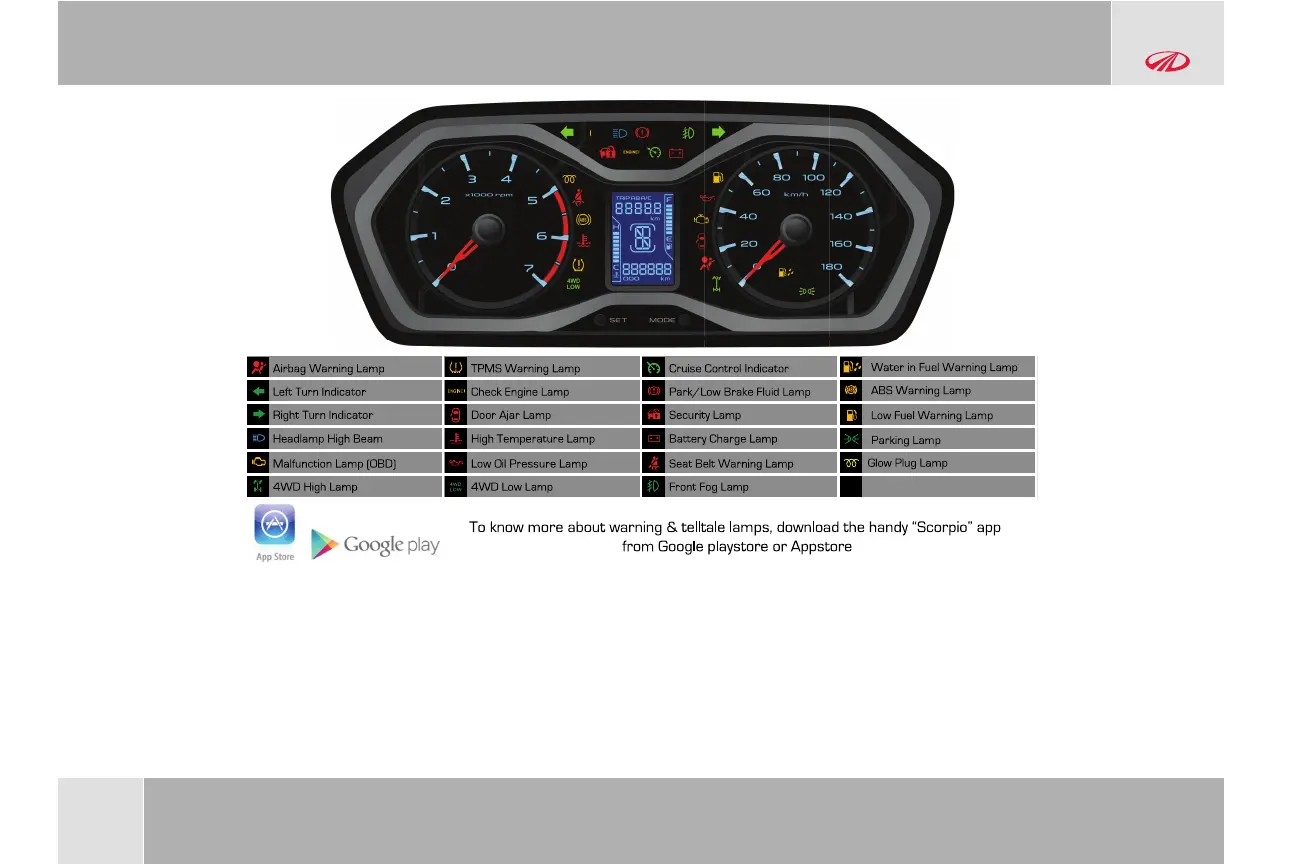

4.4 Warning Lamps
The phenomenon of warning lamps flashing momentarily when ignition is turned ON is called pre-check. This is self check done by the cluster
at every ignition ON.
INSTRUMENT CLUSTER OVERVIEW
