Terminology
• One driving cycle -A cycle between one start to the next starting of
the engine, i.e. IGN Key: OFF ð ON ð START ð OFF
•
1
s
t
Ignition ON - Unit is powered UP for the first time and the
ignition is turned ON
•
Message -All the messages will be announced through the front
right speaker, by disconnecting the speaker from the audio
system, even when the audio system is playing

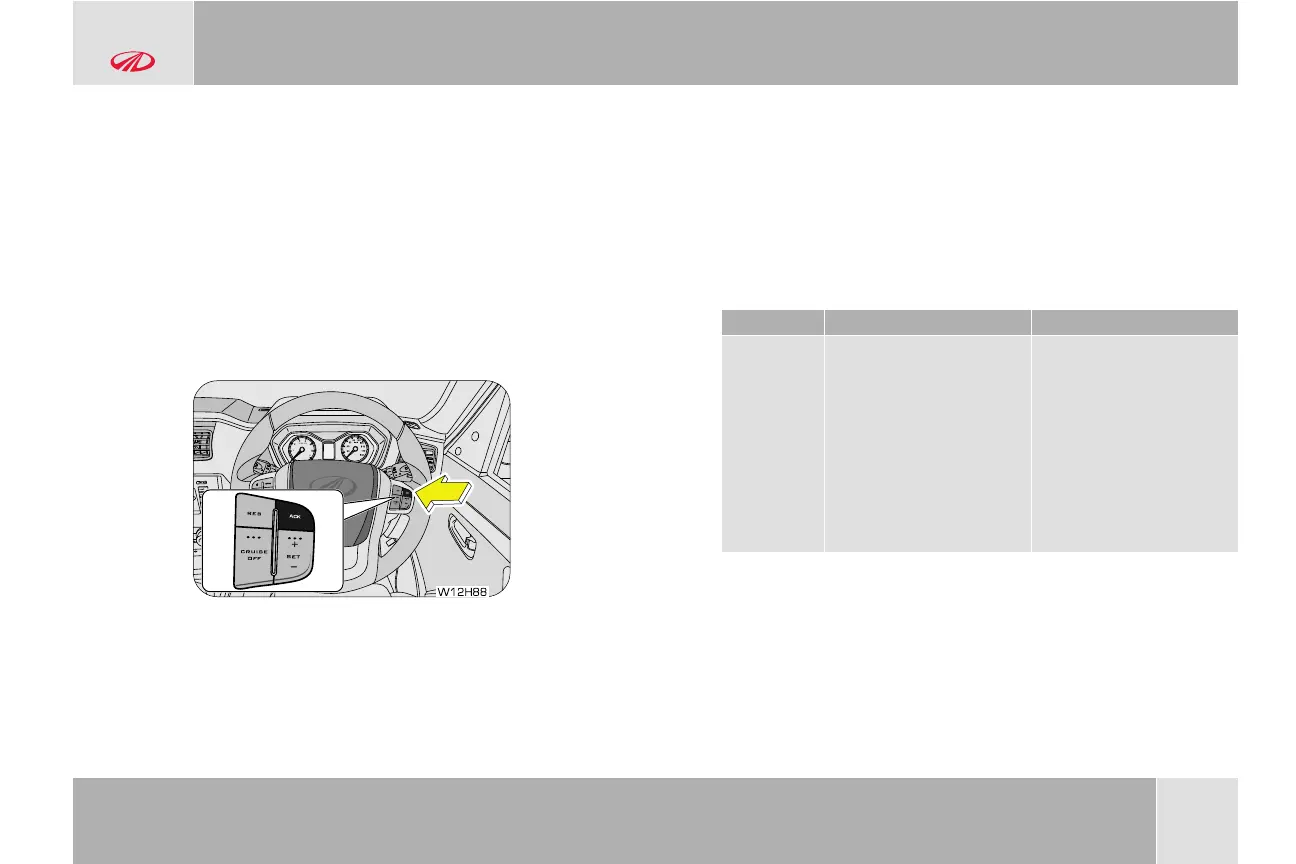

To acknowledge a message or an alert press the “ACK” button on
the steering wheel switch bank.
W12H88
20
40
60
80
km/h
100
120
140
160
180
-
+
-
+
SOUR
CE
AUTO
SE
L
H
O
M
E
N
AVI
DI
SC -I
N
R
ES
AC
K
SET
CR
UISE
OF
F
1
2
3
4
x1000 rpm
5
6
7
E
A
R
ACK
8.36.1 Logic Requirement for VMS in Infotainment
The infotainment system will receive the required signals, will
analyze the signal and announce the respective warning along with
visual alert in infotainment display screen.
Receiver: Infotainment System (IS ECU)
1. Door Ajar Alert (Voice alert – Common for all doors/visual
alert shown in display)
Condition
Required Action in IS ECU
Alert
Condition 1:
Any door
open and
vehicle
Speed >10
kmph
Condition 2:
Condition 1
+ 300 m of
vehicle
Travel
• If condition 1 is TRUE
announce the
warning once
• If condition 2 is
TRUE announce the
warning once
Both voice and visual (If
acknowledged no
repetition of alert in the
same ignition cycle even if
fault is not removed. Alert
will be announced in the
next driving cycle if fault
still continues.)
2. Low brake fluid alert (Voice alert announced/visual alert
shown in display)
FEATURES AND CONTROL
