Mahindra 2016 Scorpio - Page 137

8-46
© Copyright Mahindra & Mahindra Ltd.012016
40 c
m
BLIND ZONE
4
0 cm
BLIN
D
ZONE
W12H55
W12H62

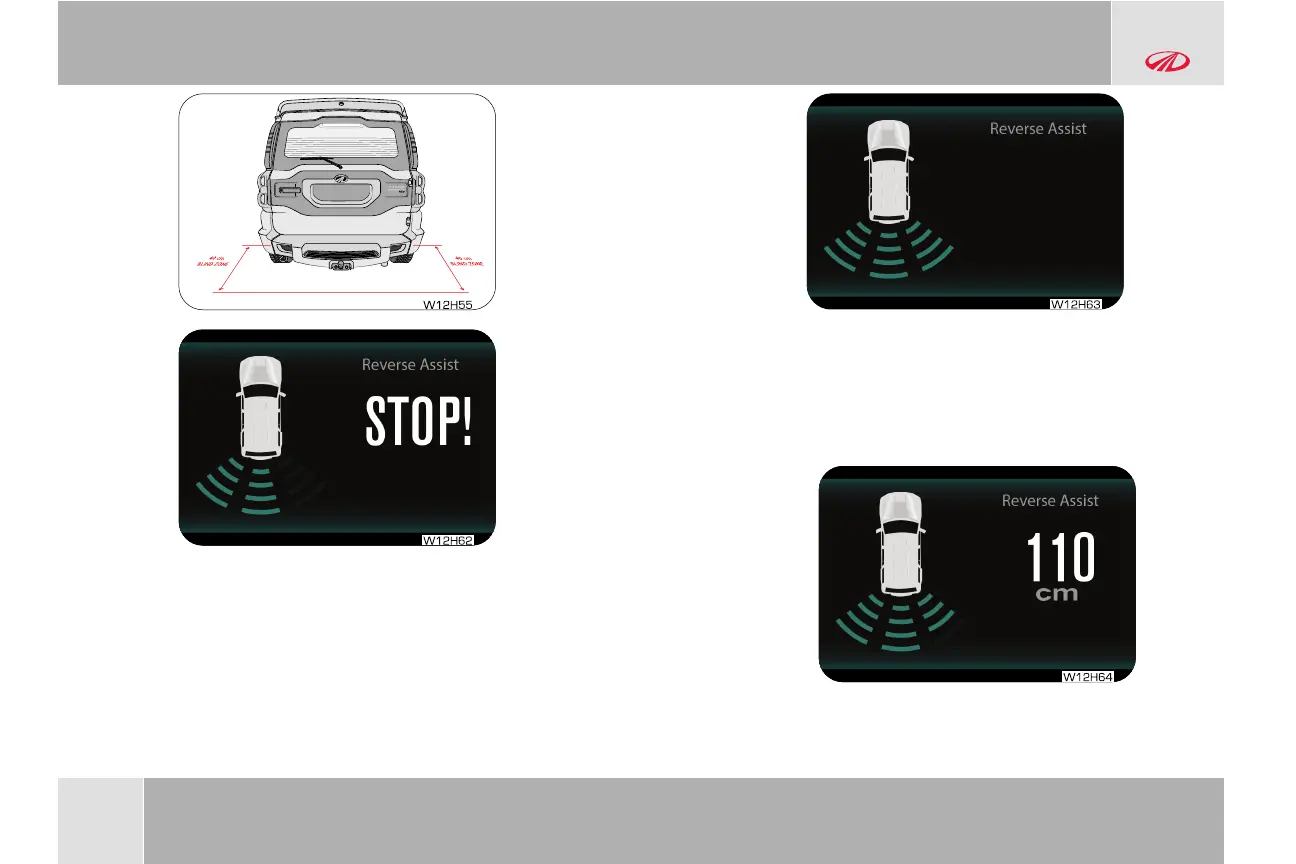

Operation of RPAS
1. Start the vehicle (IGN is turned ON)
2. Change the gear to reverse (engage the reverse gear). The
RPAS will be displayed on the infotainment screen.
W12H63
3. Start moving the vehicle in the reverse direction
4. Display bars in the respective direction will glow according to
obstacles in its path
• If the obstacle is between 100 to 120 cm, bar 4 will be
turned ON
W12H64
• If the obstacle is between 75 to 100 cm, bar 3 & 4 will be
turned ON
FEATURES AND CONTROL
