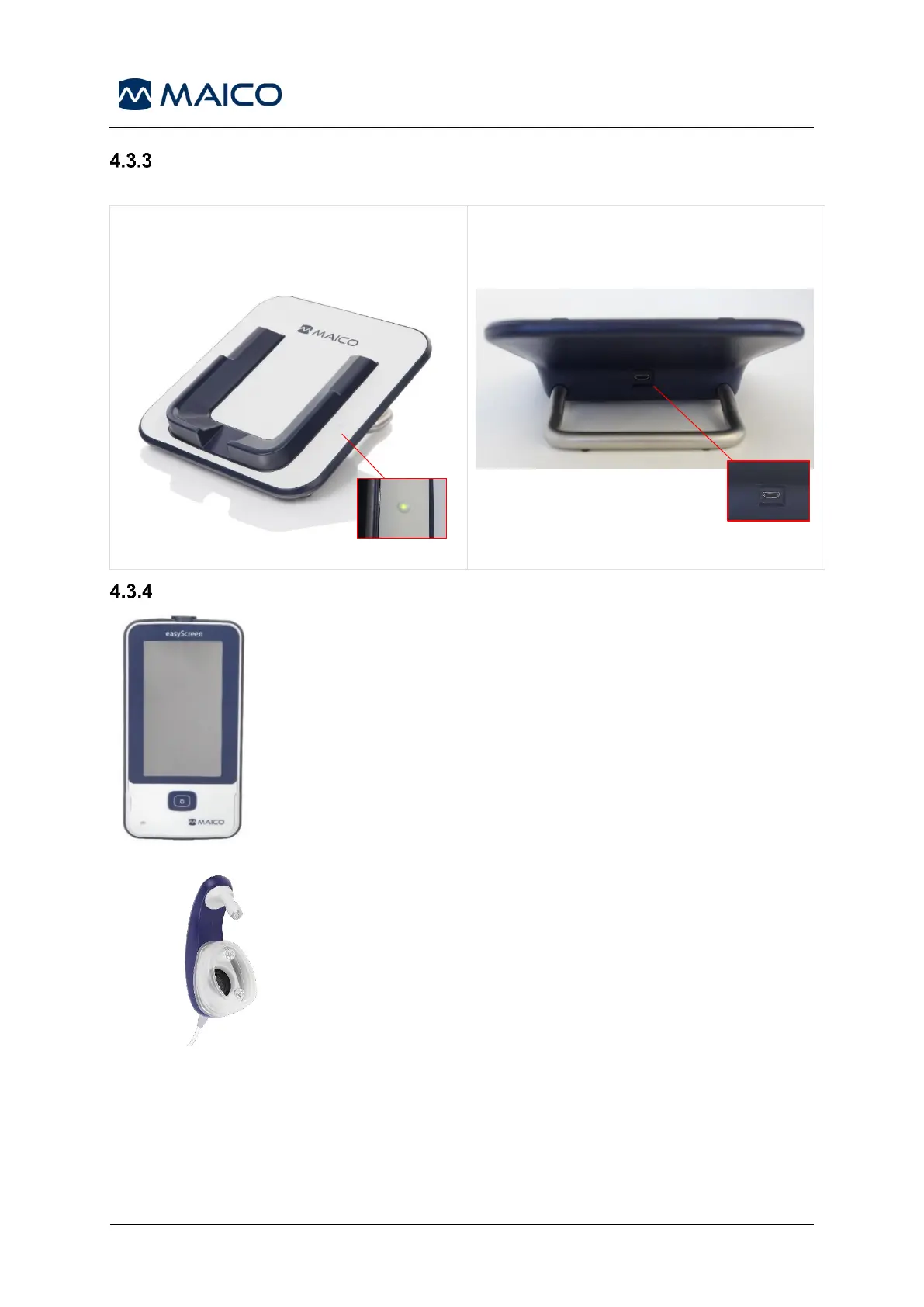

Connections and Light Indicator on the Cradle
Cradle features are shown below.
The LED (1) indicates the power status of
the cradle (on = connected to power
supply, off = not connected) (Figure 15).
Figure 16 shows the power supply
connector.
Figure 15
Figure 16
Display and Further Components
Figure 17
Display
The display on the easyScreen is a resistive touch screen
that allows operation with gloves (Figure 17). It responds
to the pressure of touching the icons. This can be
accomplished with a finger or a pointing device. Care
should be taken not to scratch the surface of the touch
screen overlay.
Figure 18
easyScreen BERAphone
®
The BERAphone
®
has reusable, stainless-steel
electrodes, transducer and preamplifier integrated in one
unit so that no disposables are needed. A button let you
start the test and LED’s provide feedback about the
selected ear, impedance and test status. The spring-
loaded electrodes adapt to the shape of the haead and the
forehead electrode can be rotated or replaced by a longer
electrode for smaller baby heads.
