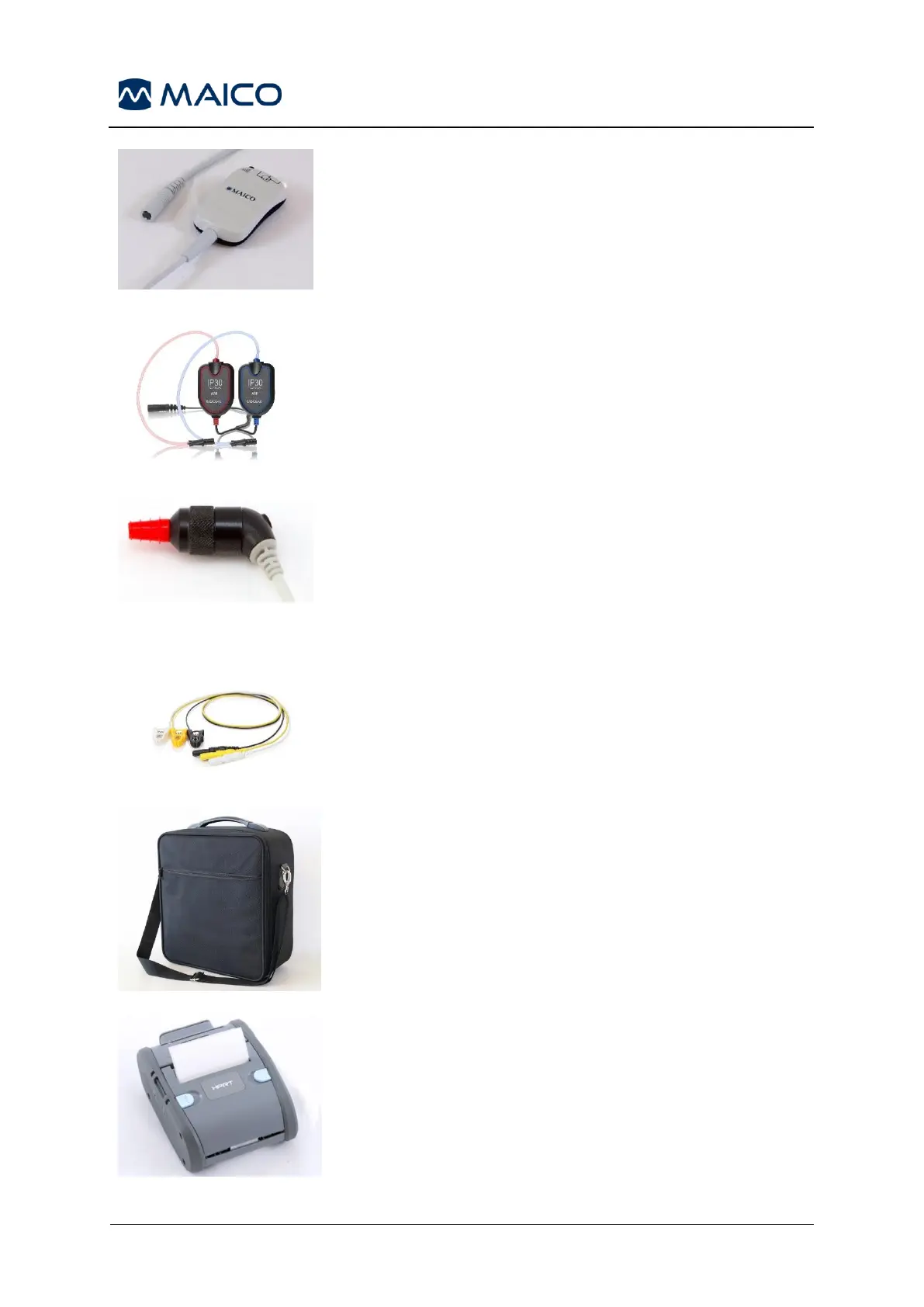

Figure 19
Preamplifier Cable (for ABR Only)
The preamplifier cable connects to the top of the easyScreen
when using some of the available transducers. It is not used
with the BERAphone
®
. Electrode lead wires and the acoustic
transducer connect to the jacks at the top of the preamplifier
cable for performing ABR screenings (Figure 19).
Figure 20
Insert Earphone Cable (for ABR Only)
The insert earphone cable connects to the jack on the top
edge of the preamplifier cable. For testing, the insert
earphone EarCup
TM
adapters at the end of the red and blue
tubes are inserted into the foam edge of the EarCups
TM
. If
eartips are used, disposable eartips are attached to the
clear eartip adapters at the end of the tubes (Figure 20).
Figure 21
OAE Ear Probe (for ABR and OAE)
The OAE ear probe must be used for OAE screening.
However, it can also be used as the transducer to deliver
the acoustic stimulus for ABR screening as well. In this
case the OAE probe connects to the preamplifier cable. For
testing connect a disposable eartip of the proper size for
the patient’s ear onto the probe tip (Figure 21)
Figure 22
Electrode Lead Wires (for ABR)
Electrode lead wires are provided with the system
purchase when ABR is included and the preamplifier is
needed. The color-coded plugs connect to the jacks on the
top of the preamplifier cable (Figure 22).
Figure 23
Carry Case
The carry case provides a means for storing, protecting
and transporting the easyScreen and all of its components
(Figure 23).
Figure 24
Label printer
The wireless thermal printer Sanibel MLP2 (Figure 24)
allows the direct printing of labels from the easyScreen.
Pairing to the easyScreen is required in preparation for
wireless printing (see section 5.14).
