Maico easyScreen User Manual

Operation Manual easyScreen
8508935 Rev. 4
31
04/04/2019
4.4 System Assembly
General
The easyScreen will require some assembly before use including one of the following
depending on your system purchase and test method:
• Connecting the BERAphone
®
for ABR
OR
• Connecting the ABR preamplifier cable, ABR transducer and electrode lead wires
OR
• Connecting the OAE probe to easyScreen for OAE testing
Connecting the BERAphone
®
, Preamplifier Cable or OAE Probe to
easyScreen

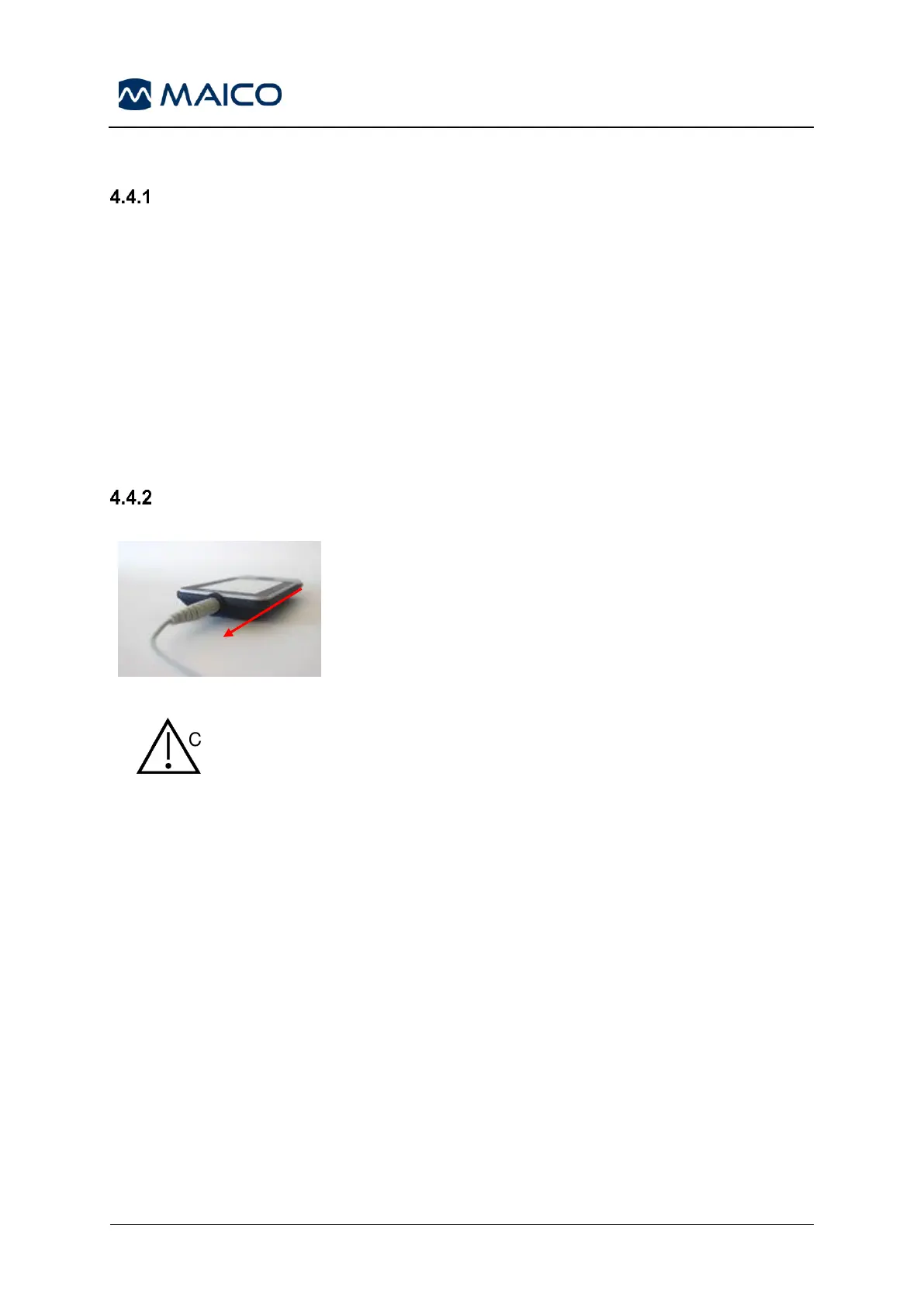

Figure 25
Align the dot on the plug at the end of the BERAphone
®
cable, the preamplifier cable or OAE probe with the socket
at the top of the easyScreen which also has a small dot to
assist with alignment. Insert the plug and push it securely
into place (Figure 25).
The plug contains a series of small metal pins that insert into
corresponding jacks in the socket. Be careful that the plug and
socket are properly aligned so that the pins are not bent or broken
during insertion. Do not twist the connector in the socket.
Align the plug at the end of the preamplifier cable with the
socket at the top of the easyScreen with the dot on the
preamplifier connector on the top. Insert the plug and push
it securely into place.
CAUTION
