Operation Manual easyScreen
8508935 Rev. 4
34
04/04/2019
Handling of BERAphone
®
and Cradle

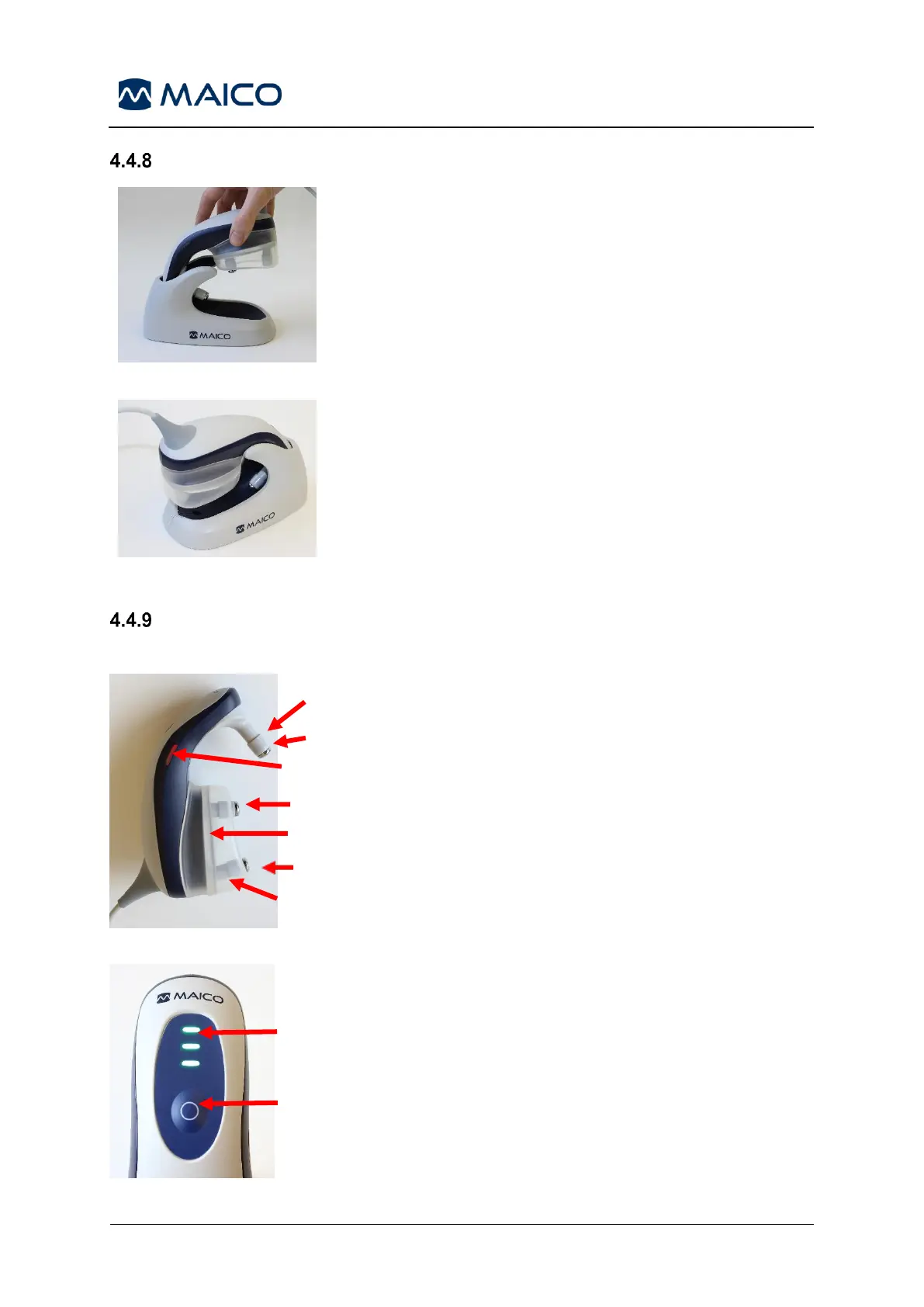

Figure 35
Place the BERAphone
®
into the cradle so that top part is
inserted first between the insertion guides. Then lower the
ear cushion portion into the cradle (Figure 35).
Figure 36
The left and right insertion guides hold the BERAphone®
centered in the cradle (Figure 36). To remove it, lift the
lower part of the BERAphone
®
first.
The cradle can be mounted to a table or other flat surface
with two screws.
Components of the BERAphone
®
The BERAphone
®
components are as follows (Figure 37 and Figure 38):
Figure 37
Figure 38
Acoustic speaker
Active test ear (right) LED (blue LED on opposite side for left ear)
Mastoid electrode
Vertex electrode 180° rotatable
Ground electrode
Gel protector on stainless steel electrode
Semi-transparent silicone ear cushion
LEDs test feedback during impedance & ABR measurement
Button Starts, Pauses, Stops test
