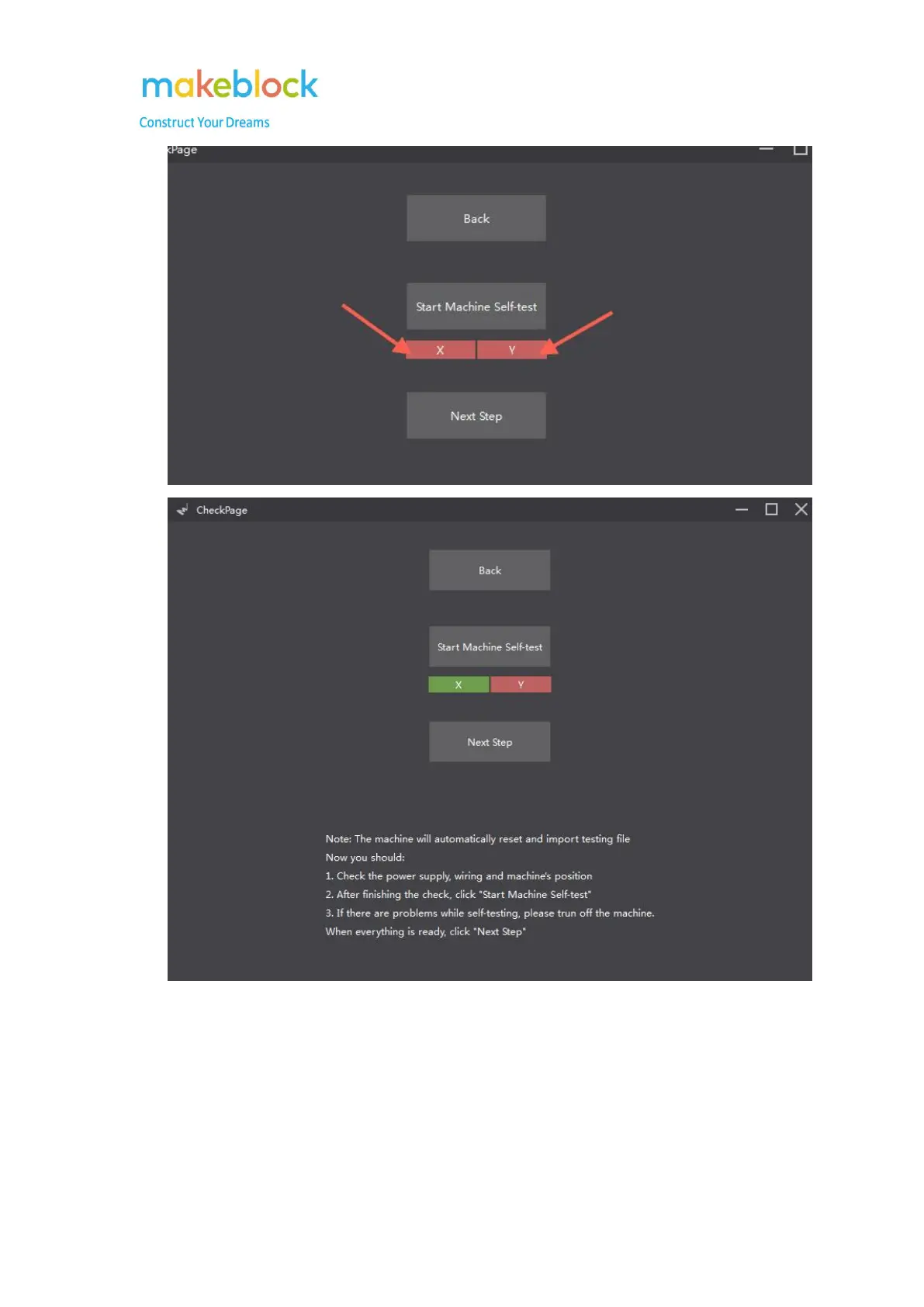

If the X icon turns green while pressing Y-axis limit switch, which means both X-axis and
Y-axis limit switch connecting to the wrong pins. Please check if the X-Axis limit switch
connects to A6 on MegaPi, and Y-Axis limit switch connects to A7 as picture shown below.
