Malaguti PHANTOM MAX 250 - Main Components

12
EN
Fig. 6
Fig. 6.1
17
15a
12
11
13
9
4
16
6
5
10
183
1
2
7
8
14
20
21
22
23
24
19
15b
25

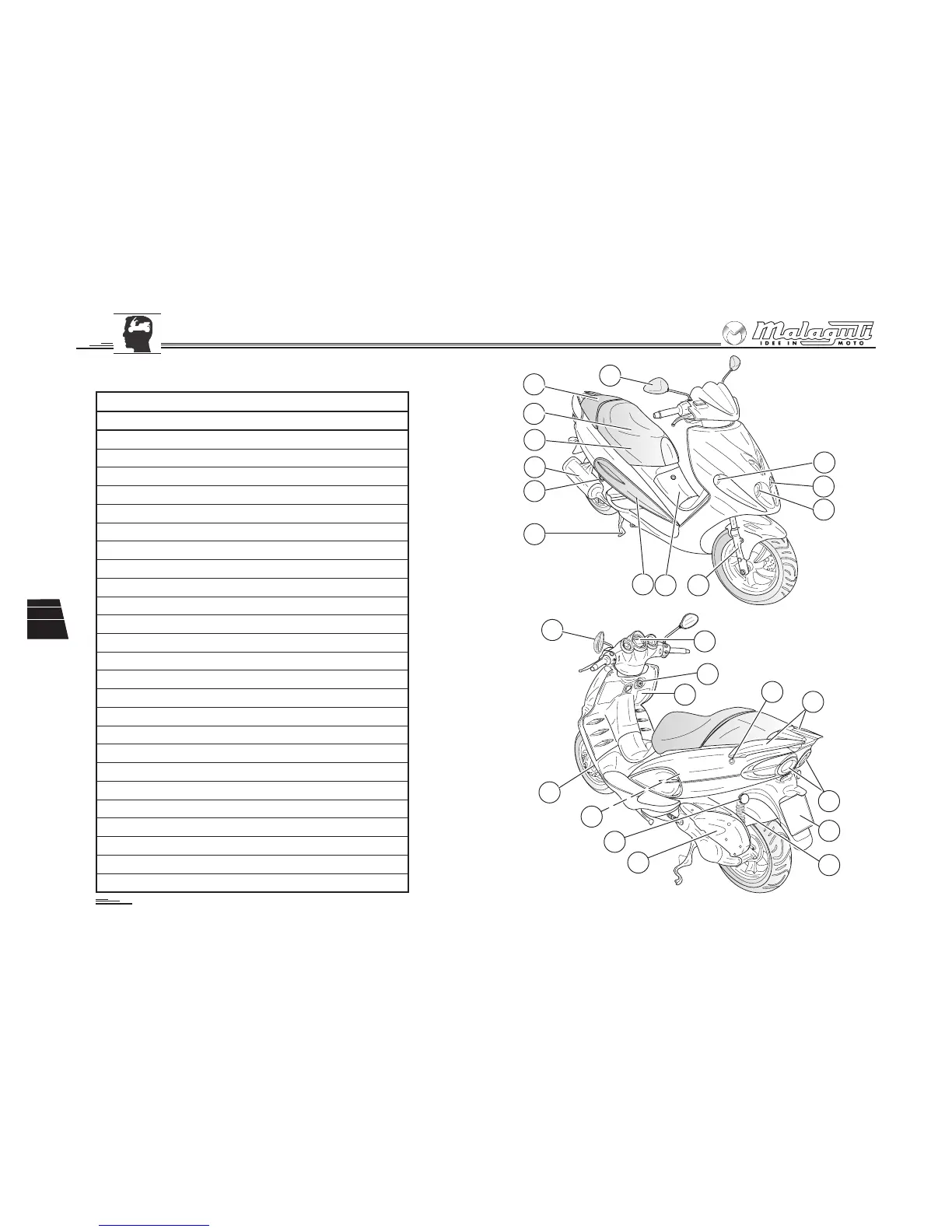

2.2 MAIN COMPONENTS
N. Description P.
1 Digital dashboark 15
2 Key switch 22
3 Fuel tank cap 8
4 Helmet compartment 13
5 Battery 48
6 Seat -
7 Tail lamp 46
8 Number-plate bracket -
9 Exhaust pipe -
10 Centre stand 23
11 Antitheft hook 13
12 Spark plug 39
13 Right rear-view mirror 9
14 Adjustable shock absorbers 40
15a Low beam headlight 45
15b High beam headlight 45
16 Front indicators 46
17 Front disk brake calliper -
18 Fork -
19 Front ticket compartment 14
20 Air filter -
21 Carburettor -
22 Left rear-view mirror 9
23 Saddle lock 13
24 Passenger’s handle -
25 Rear indicators 46
