Man D2862 LE221 - COMMON RAIL SYSTEM; Common Rail System Overview and Component Identification

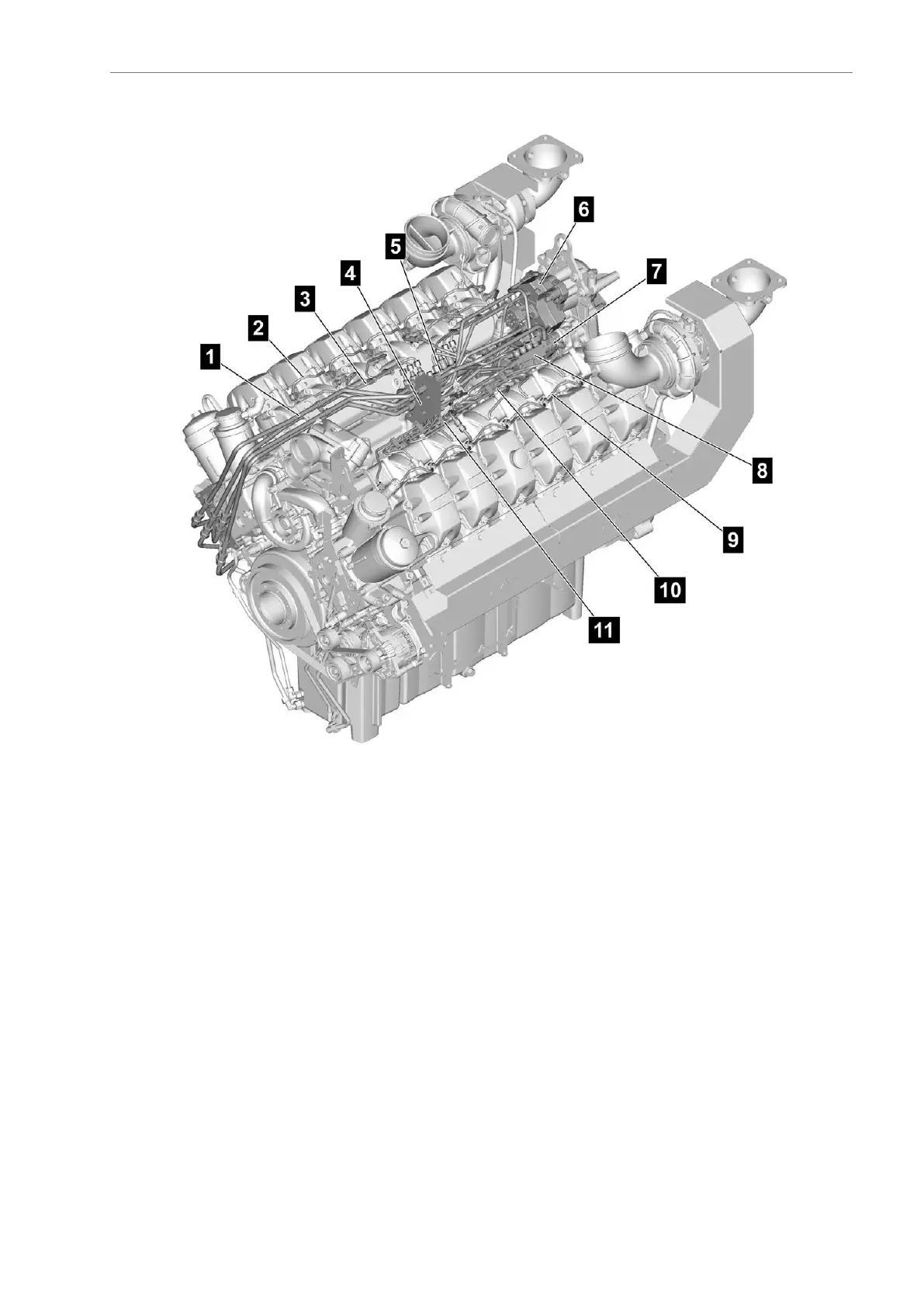

COMMONRAILSYSTEM
COMMONRAILSYSTEM
(1)Fuelline
(2)Leakageoilline,injectors
(3)High-pressurelines
(4)Distributor
(5)Rightrail
(6)High-pressurepump,slave
(7)High-pressurepump,master
(8)Collector
(9)Leakageoilline,injectors
(10)High-pressurelines
(11)Leftrail
AE63stedition105
