COOLINGSYSTEM

Removing,installingthecoolingsystem

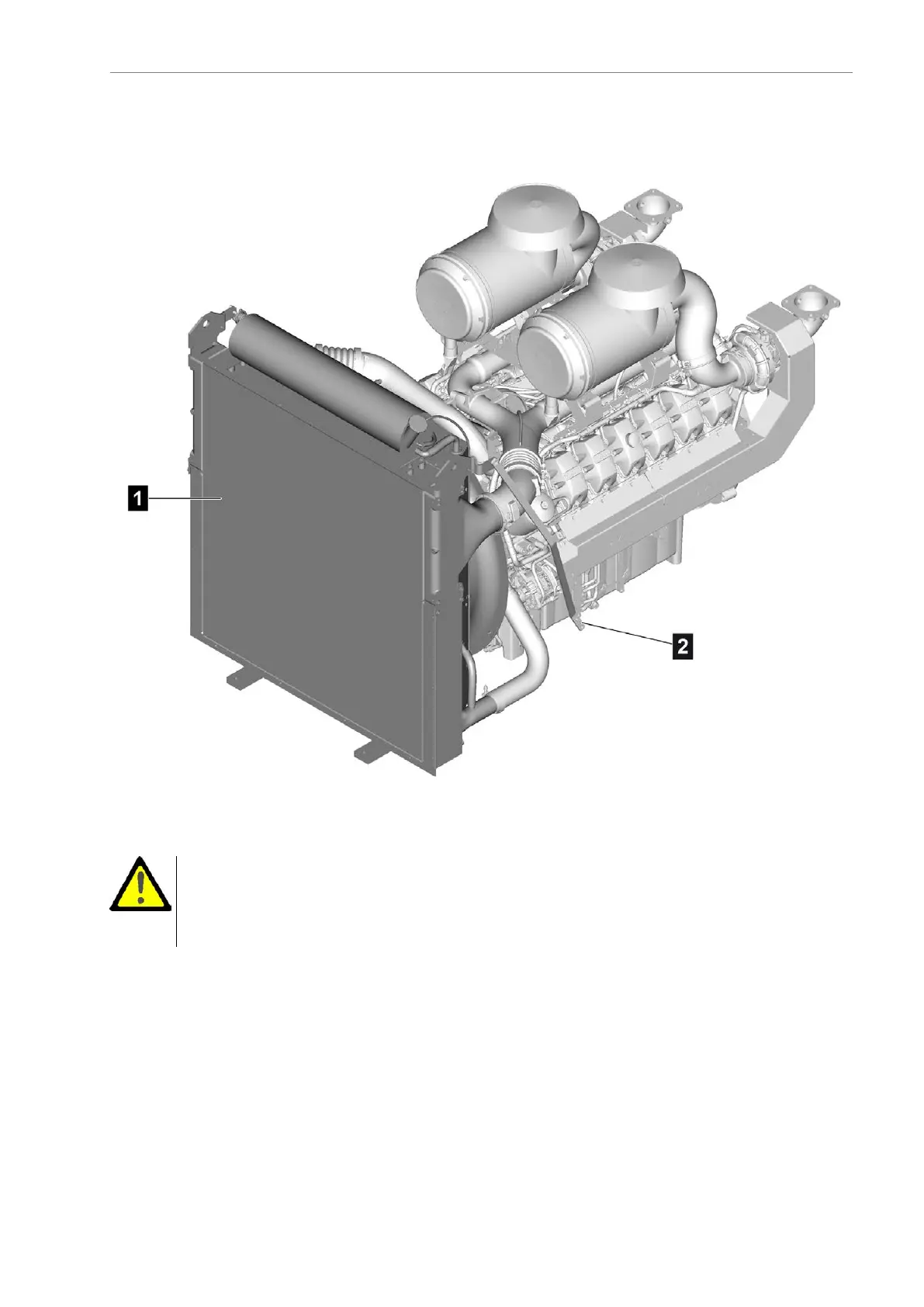

(1)Coolingsystem(2)Radiatorstrut

Importantinformation

WARNING

Componentdamageduetoincorrectlytightenedscrew/boltconnections

•Ifimpactwrenchesareused,thesemayonlybeusedforpretighteningtomax.50%ofthe

speciedtighteningtorque

•Finaltighteningmustalwaysbeperformedmanuallyusingatorquewrench

AE63stedition55
