Man D2862 LE221 - Dismantling and Assembling the Oil Module

ENGINELUBRICATION
Dismantlingandassemblingtheoilmodule
Additionaljobs
–Drainingthecoolant,seeOperator'sManual
–Drainingtheengineoil,seeOperator'sManual
–Removing,installingthecoolingsystem,see55
–Removing,installingthefanV-belt,see85
–Removing,installingtheramfan,see61
–Removing,installingtheintermediateange,see63
–Removing,installingthefantensioningpulley,see89
–Removing,installingthefancarrierwithfanbearing,see91
–Removing,installingthecoolantpumpcoolantmanifold,see73
–Removing,installingthecoolantpump,see77
–Removing,installingoilmodules,see269

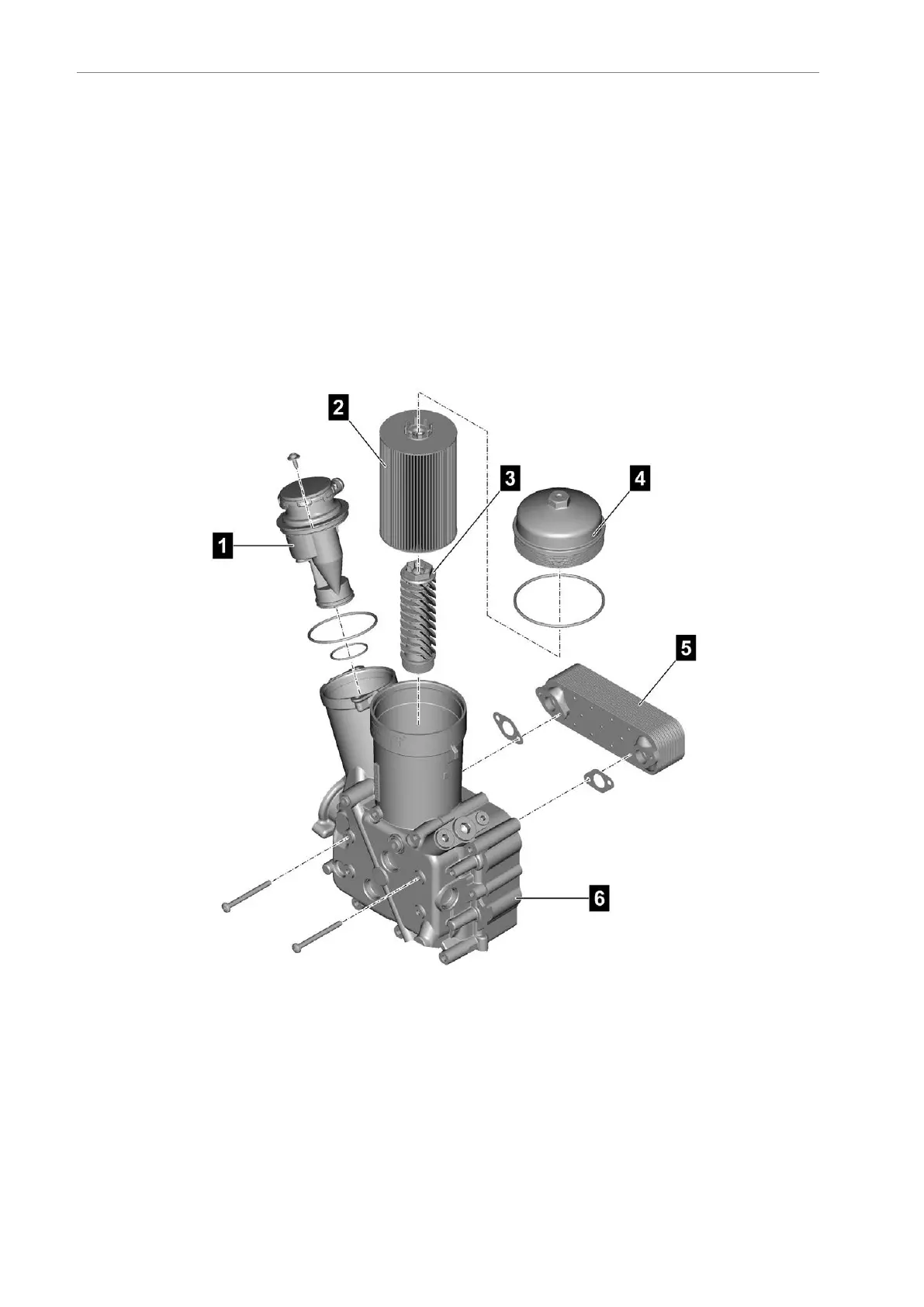

(1)Oilseparator
(2)Oillterinsert
(3)Supportdome
(4)Oilltercover
(5)Oilcooler
(6)Oilmodule
Technicaldata
Oilltercover.................................................................................................................................45Nm
Supportdome................................................................................................................................25Nm
274AE63stedition
