TURBOCHARGING
CHARGEAIRMANIFOLD
Removing,installingthechargeairmanifold
Additionaljobs
–Removing,installingthecombinationairlter,see187
–Removing,installingenginecontrolunits,see27
–Removing,installingthecombinationairlterholder,see193
–Removing,installingtheenginewiringharness,see25
–Removing,installingtheramfan,see61

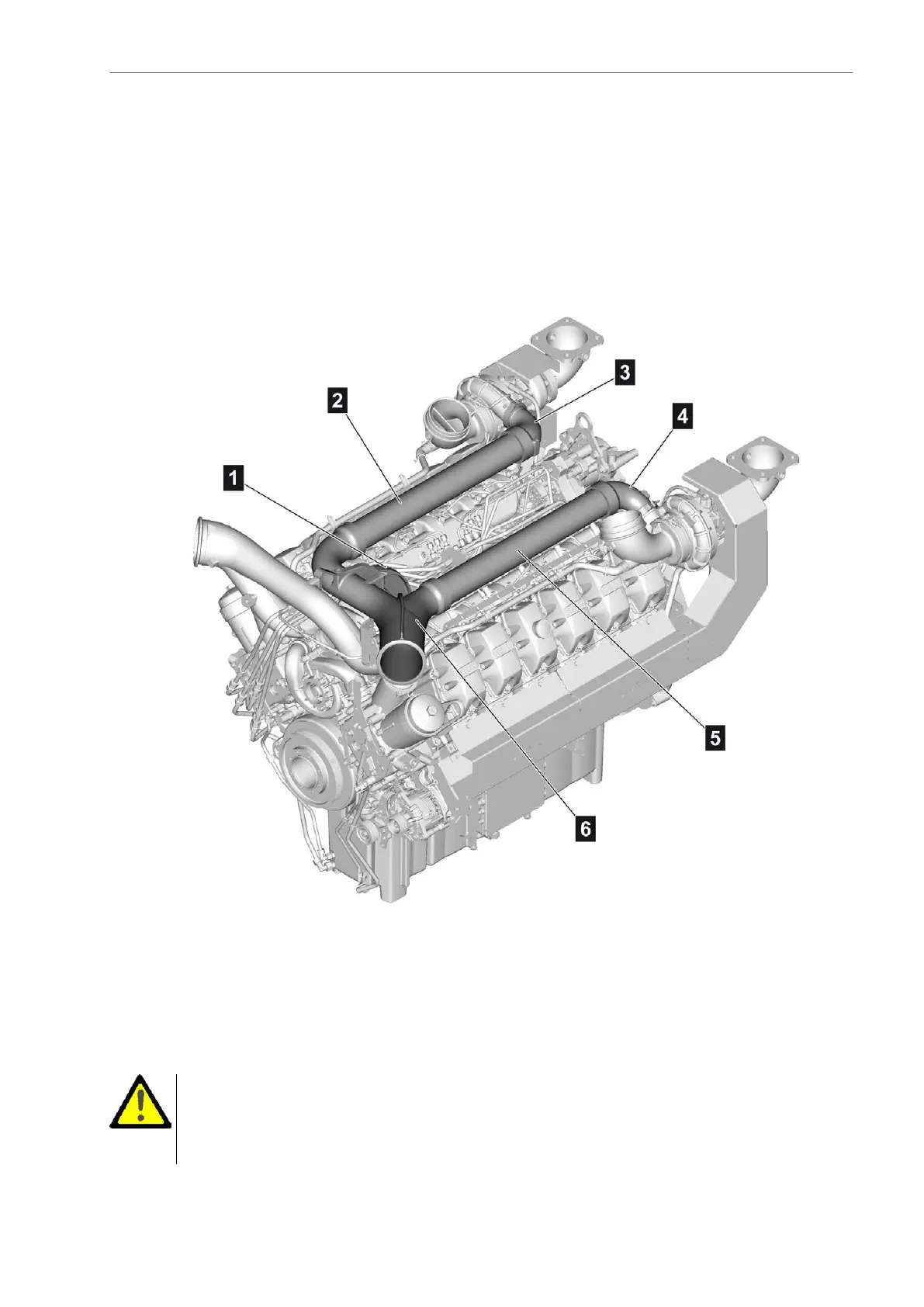

(1)Bracketforchargeairmanifold
(2)Insertpiperight
(3)Chargeairmanifold
(4)Chargeairmanifold
(5)Insertpipeleft
(6)Chargeairmanifold
Technicaldata
T-pinclamp....................................................................................................................................15Nm
Importantinformation
WARNING
Componentdamageduetoincorrectlytightenedscrew/boltconnections
•Ifimpactwrenchesareused,thesemayonlybeusedforpretighteningtomax.50%ofthe
speciedtighteningtorque
•Finaltighteningmustalwaysbeperformedmanuallyusingatorquewrench
AE63stedition181
