Man D2862 LE221 - Fan V-Belt; Removing, Installing the Fan V-Belt

ADD-ONUNITS
FANV-BELT
Removing,installingthefanV-belt
Additionaljobs
–Removing,installingthecoolingsystem,see55
–Removing,installingtheramfan,see61

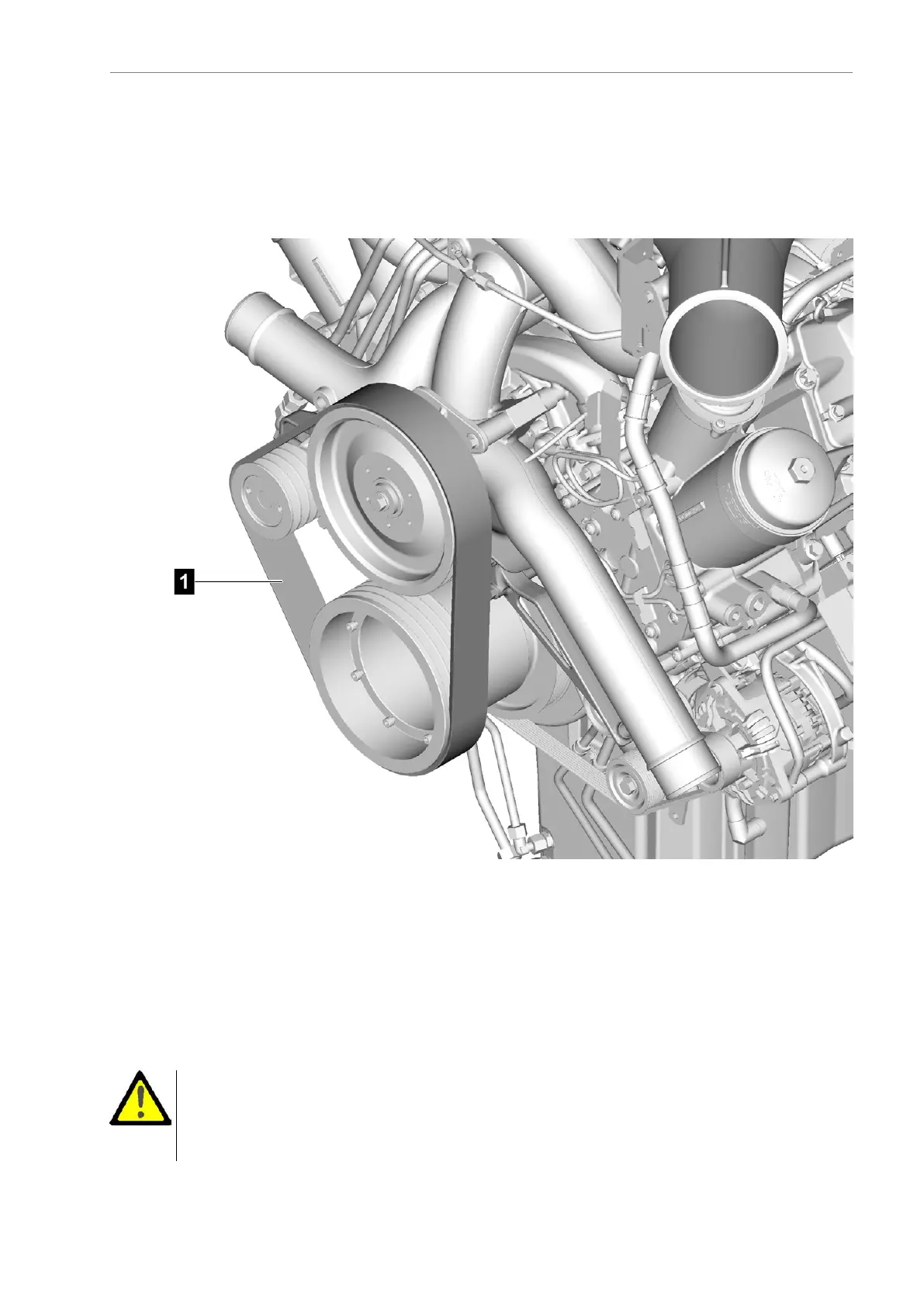

(1)Fanpoly-V-belt
Technicaldata
Fanpoly-V-beltmountingbolt................................M12x1.5x100.....................................................20Nm
Poly-V-beltpulleymountingbolt............................M12x1x80-10.9................................................117Nm
Fanpoly-V-belttension
Section1.......................................................................................................................................225Hz
Section2.......................................................................................................................................220Hz
Importantinformation
WARNING
Componentdamageduetoincorrectlytightenedscrew/boltconnections
•Ifimpactwrenchesareused,thesemayonlybeusedforpretighteningtomax.50%ofthe
speciedtighteningtorque
•Finaltighteningmustalwaysbeperformedmanuallyusingatorquewrench
