COOLINGSYSTEM

RAMFAN

Removing,installingtheramfan

Additionaljobs

–Removing,installingthecoolingsystem,see55

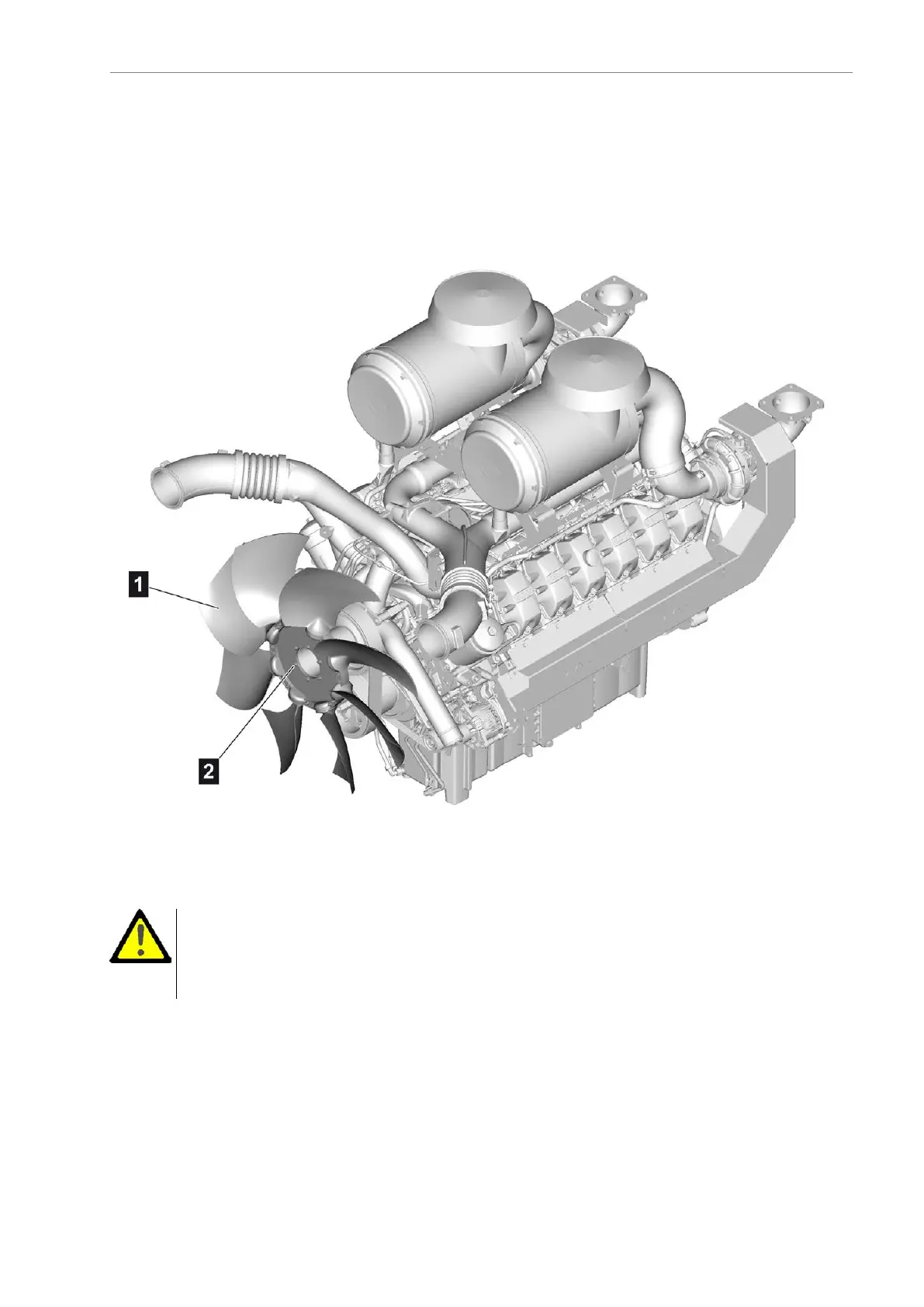

(1)Ramfan(2)Mountingbolt

Importantinformation

WARNING

Componentdamageduetoincorrectlytightenedscrew/boltconnections

•Ifimpactwrenchesareused,thesemayonlybeusedforpretighteningtomax.50%ofthe

speciedtighteningtorque

•Finaltighteningmustalwaysbeperformedmanuallyusingatorquewrench

AE63stedition61
