CRANKMECHANISM
PISTONSANDCONNECTINGRODS
Removing,installingapistonwithitsconnectingrod
Additionaljobs
–Removing,installingtheturbocharger,see173
–Removing,installingtheoilsump,see281
–Removing,installingtheoilinjectornozzles,see279
–Removing,installingthecylinderheadcover,see213
–Removing,installinginjectorwithnozzle,see115
–Removing,installingtherockerarmmechanism,see217
–Removing,installingthecylinderhead,see223
–Checkingandsettingthevalveclearance,see238

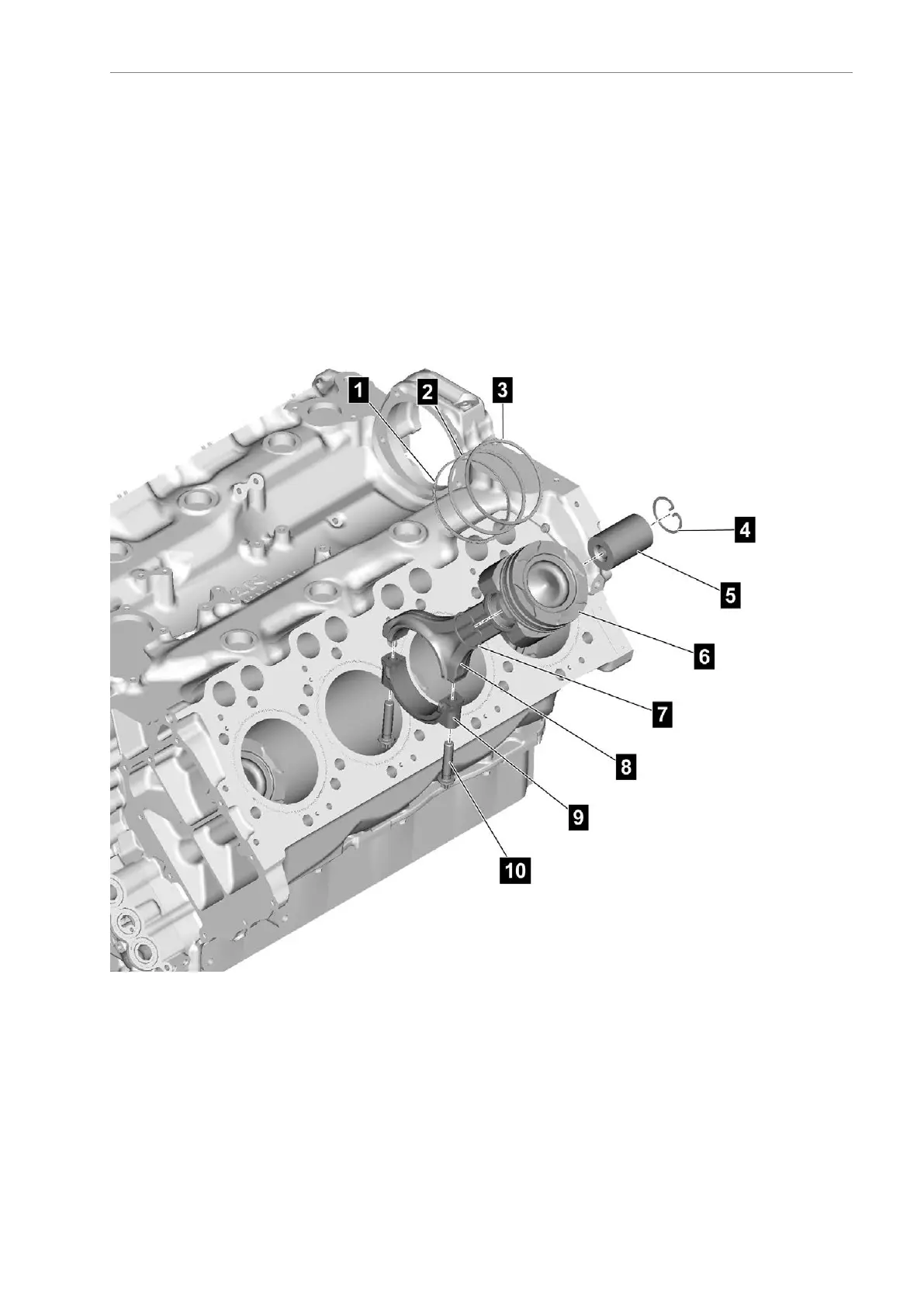

(1)Double-bevelledring
(2)Taper-facering
(3)Keystonering
(4)Internalcirclip
(5)Pistonpin
(6)Piston
(7)Internalcirclip
(8)Connectingrod
(9)Connectingrodbearingcap
(10)Connectingrodbearingbolt
Technicaldata
Connectingrodbearingbolt..................................M14x1.5x66-10.9..........................Initialtorque100Nm
Connectingrodbearingbolt..................................M14x1.5x66-10.9............................Finaltightening90°
Connectingrods
Connectingrodlength,smallendbushcentre–connectingrodbearingcentre...............282.45–282.5mm
Connectingrodbearingdimensions
Connectingrodbearingnormaldimension..................................................................96.047–96.099mm
AE63stedition323
