TURBOCHARGING
Removingthechargeairmanifold

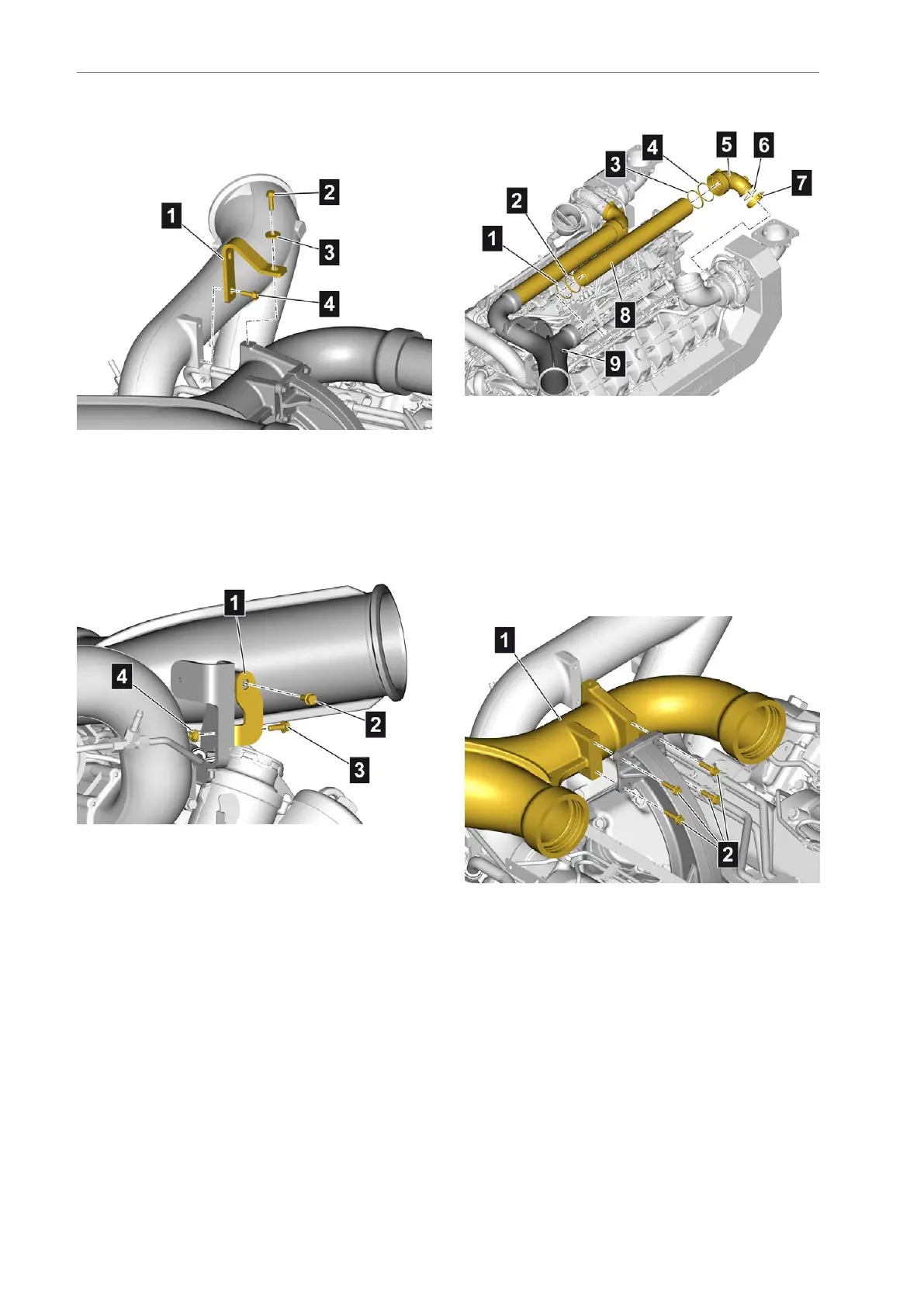

Detachingthechargeairmanifoldholder
•Unscrewthemountingbolt(2)andremovewith
thewasher(3)
•Unscrewthemountingbolts(4)
•Removetheholder(1)
Detachingthechargeairmanifoldholder
•Unscrewthemountingbolt(2)
•Unscrewthemountingnut(4)
•Pulloutthemountingbolt(3)
•Removetheholder(1)
Detachingthechargeairmanifold
•LooseningtheT-pinclamp(7)
•Pulloffthechargeairmanifold(5)andremovewith
T-pinclamp(7),O-rings(4),(6)andguideband(3)
•Pulltheinsertpipe(8)outofthechargeair
manifold(9)andremovewithO-ring(1)andguide
band(2)
•Repeattheprocedurefortheotherchargeair
manifold
•Cleanthesealingsurfaces
Detachingthechargeairmanifold
•Unscrewthemountingbolts(2)
•Removethechargeairmanifold(1)
