ENGINELUBRICATION

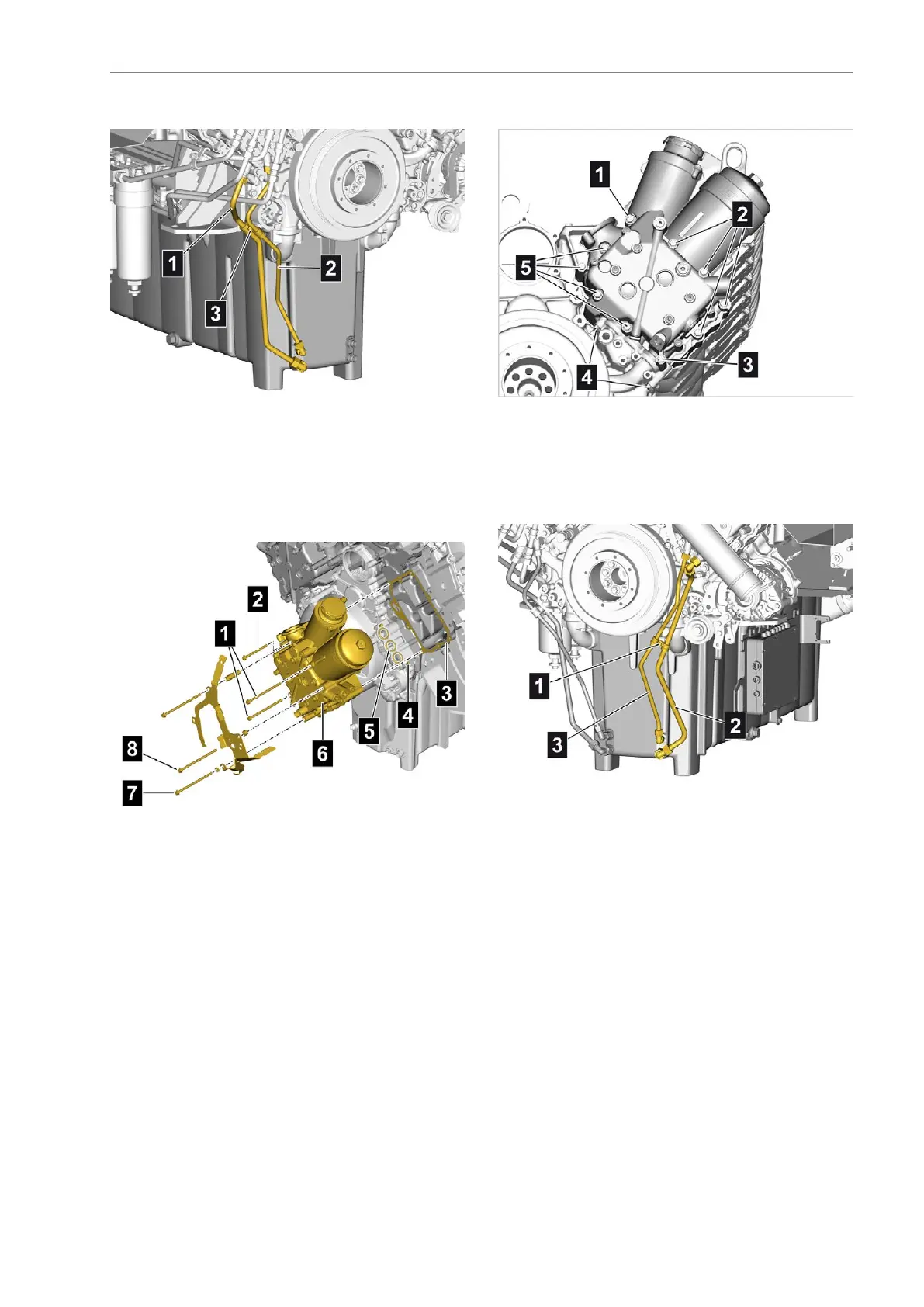

Installingtherightoilreturnline
•Positiontheoilreturnlines(1)and(2)sothatthey
arestrain-free
•Tightentheunionnutsfortheoilreturnlines(1)
and(2)
•Mountthefastening(3)
Installingtheleftoilmodule
•Cleanthesealingsurfaces
•InsertnewO-rings(5)
•Positiontheoilmodule(6)withanewseal(3)
•Positionthewiringharnessholderwithbushas
marked
•Screwinthemountingbolts(1),(2),(7)and(8)as
marked
Tighteningdiagramforleftoilmodule
•Tightenthemountingbolts(4)
•Unscrewthemountingbolts(4)60°
•Tightenthemountingbolts(1),(2),(3)and(5)
•Tightenthemountingbolts(4)
Attachingtheleftoilreturnline
•Positiontheoilreturnlines(2)and(3)sothatthey
arestrain-free
•Tightentheunionnutsfortheoilreturnlines(2)
and(3)
•Mountthefastening(1)
AE63stedition273
