Man D2862 LE221 User Manual

COMMONRAILSYSTEM

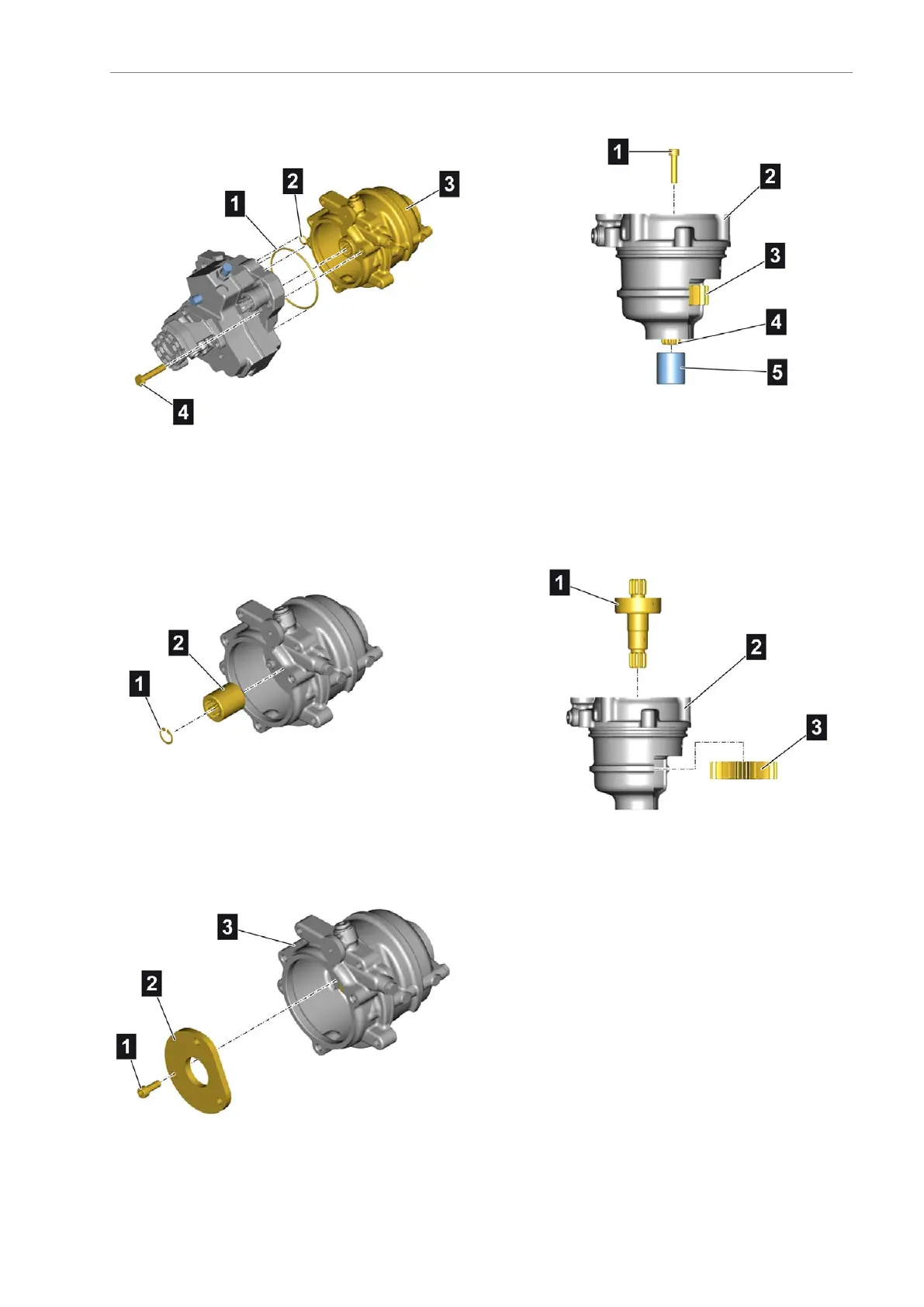

Removingthehigh-pressurepump
Detachingthedrivehousing
•Unscrewthemountingbolts(4)
•Removethedrivehousing(3)
•RemovetheO-rings(1)and(2)
Removingthedriversleeve
•Removethedriversleeve(2)
•Unclipthecirclip(1)andremoveit
Removingthethrustwasher
•Unscrewthemountingbolts(1)
•Removethethrustwasher(2)fromthedrive
housing(3)
Removingthedrivegear
•Insertthedriveshaft(4)withdrivehousing(2)into
thedriversleeve(5)
•Clampthedriversleeve(5)inavicewithprotective
jaws
•Unscrewthemountingbolts(1)fromthedrivegear
(3)
Removingthedriveshaft
•Pullthedriveshaft(1)outofthedrivehousing(2)
•Removethedrivegear(3)
AE63stedition137
