COMMONRAILSYSTEM

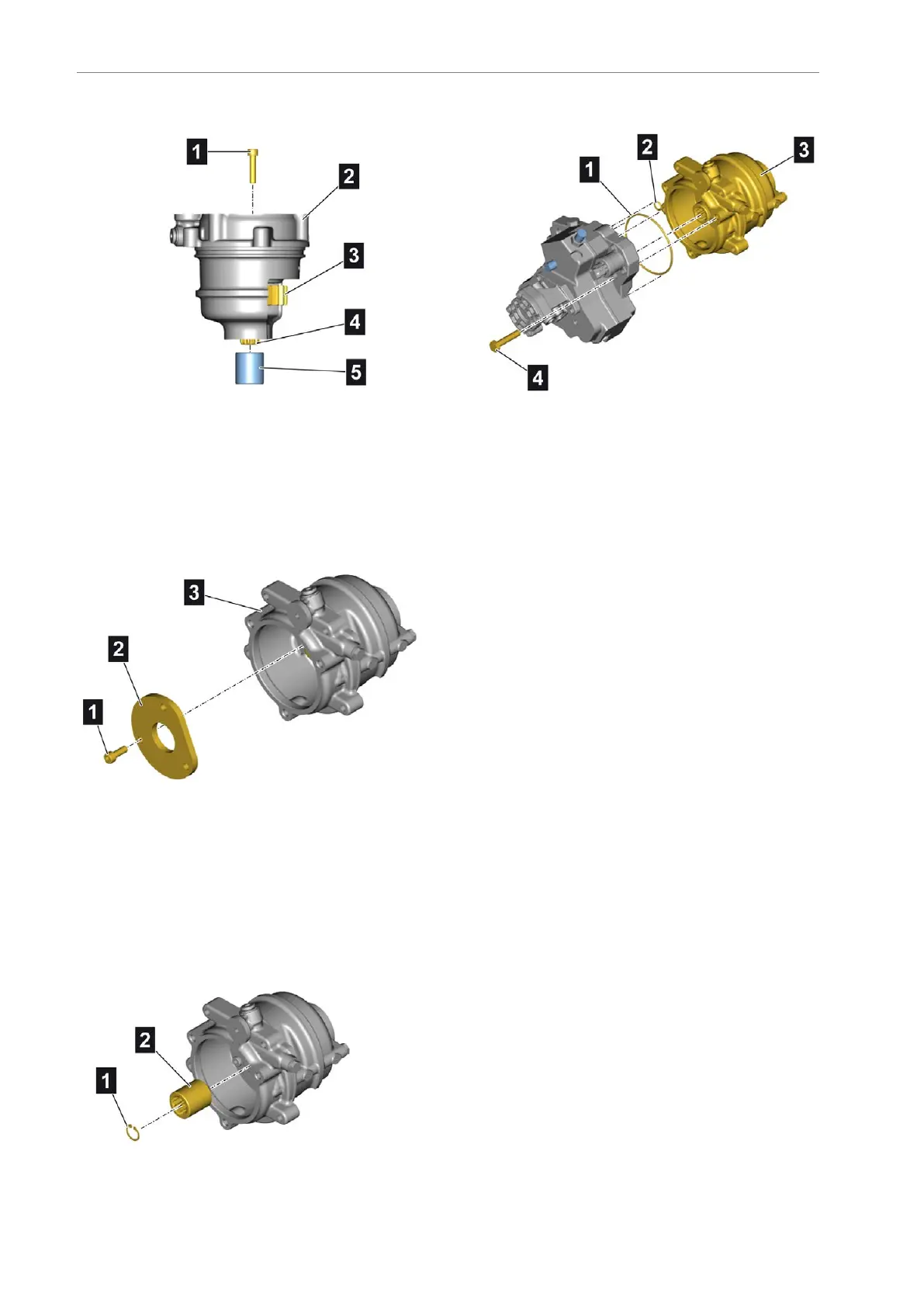

Installingthedrivegear
•Insertthedriveshaft(4)withdrivehousing(2)into
thedriversleeve(5)
•Clampthedriversleeve(5)inavicewithprotective
jaws
•Screwinandtightenthemountingbolts(1)inthe
drivegear(3)
Installingthethrustwasher
•Insertthethrustwasher(2)intothedrivehousing
(3)
•Screwinandtightenthemountingbolts(1)
Installingthedriversleeve
•Attachthecirclip(1)inthedriversleeve(2)
•Insertthedriveshaftintothedriversleeve(2)
Attachingthedrivehousing
•Insertthedrivehousing(3)withnewO-rings(1)
and(2)
•Screwinthemountingbolts(4)andtightenthem
to60Nm
