COMMONRAILSYSTEM

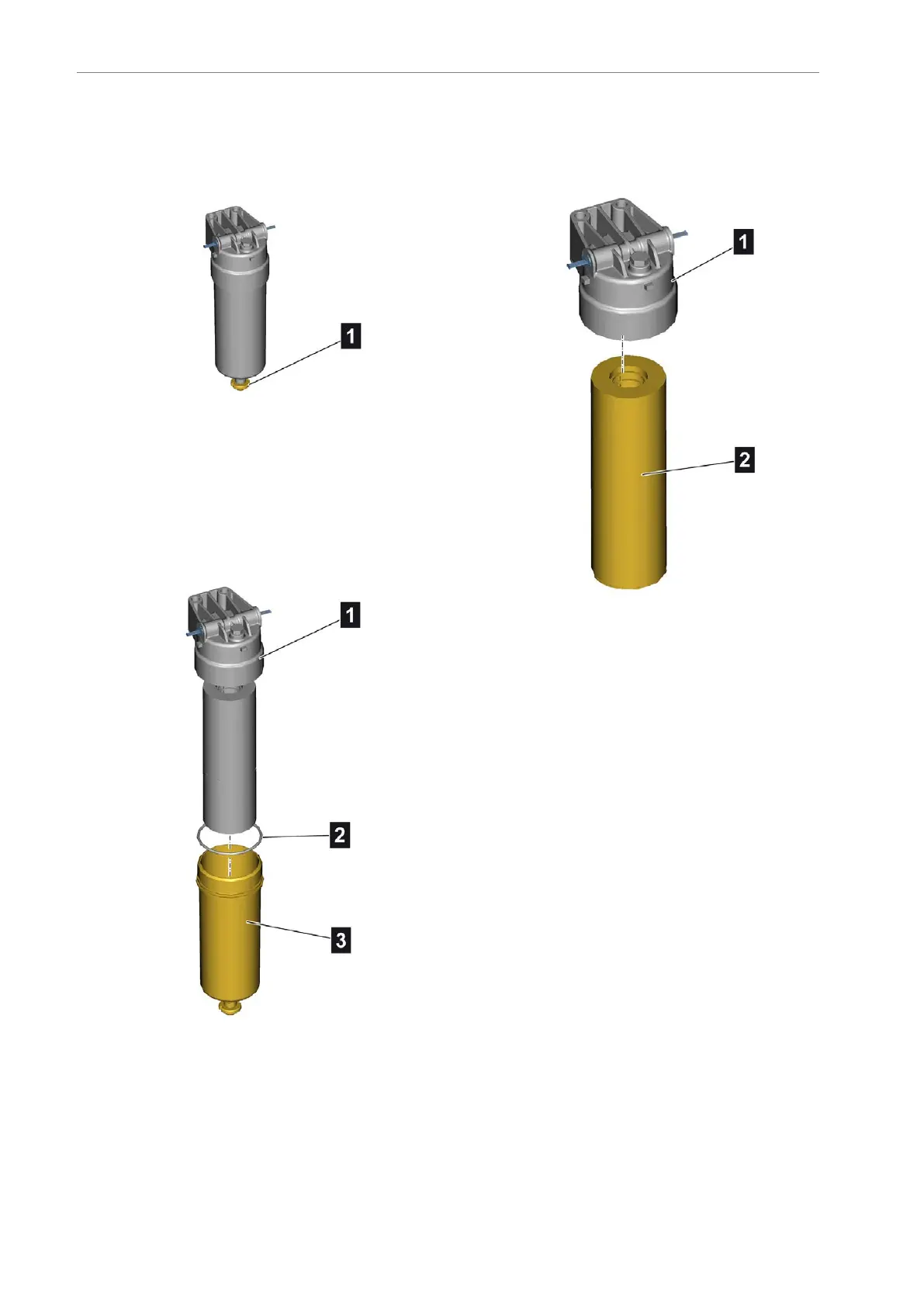

Dismantlingthefuellter

Allowingthefuelltercovertoempty

•Openthedrainplug(1)andallowthefuellter

covertoempty

•Tightenthedrainplug(1)to3Nm

Detachingthecover

•Unscrewthecover(3)fromthehousing(1)with

theHexagonsocketwrench,size36[57]

•RemovetheO-ring(2)

Detachingthefuellterinsert

•Removethefuellterinsert(2)fromthe

housing(1)

162AE63stedition
