Man D2862 LE221 User Manual

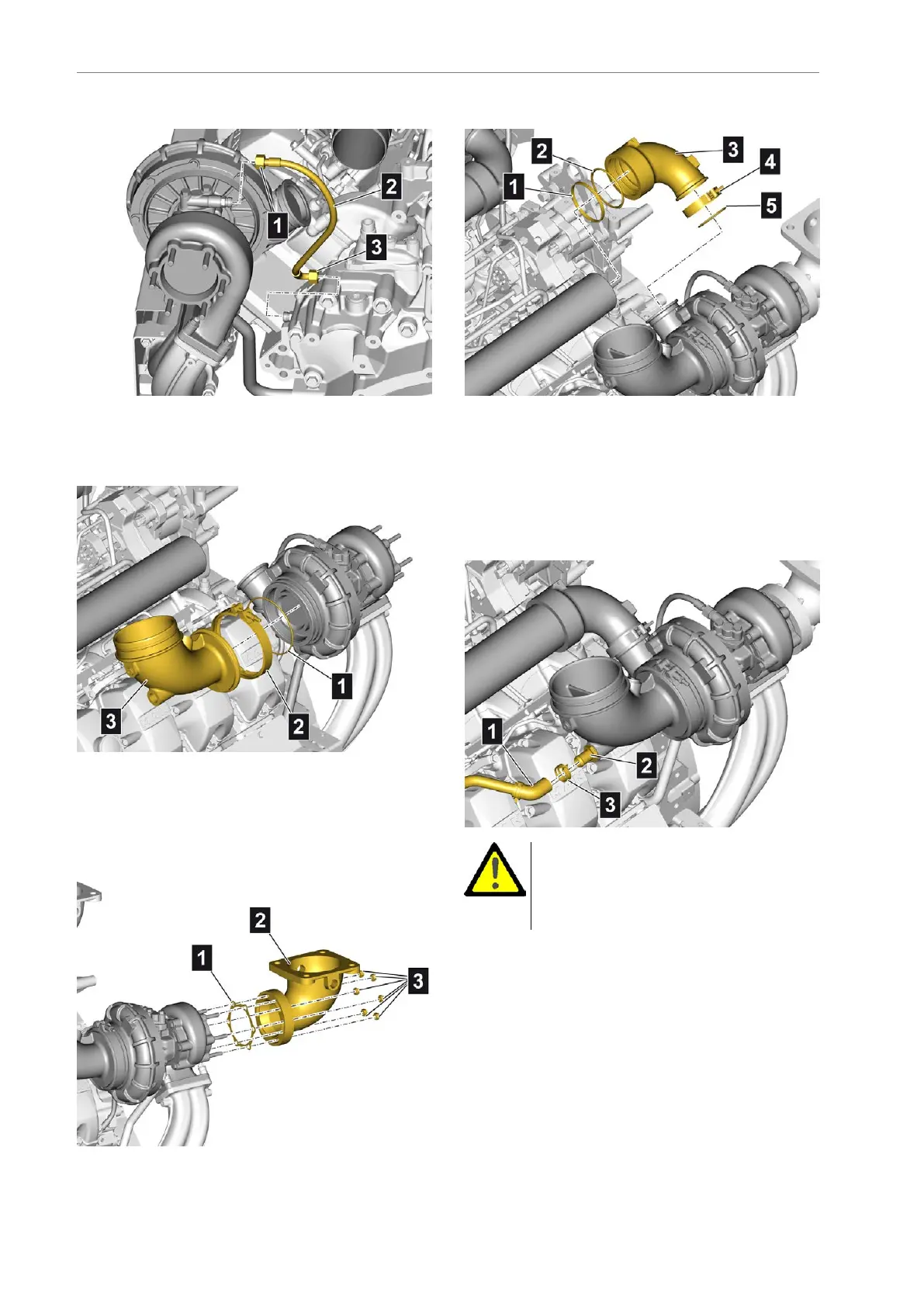

TURBOCHARGING
Attachingtheoilpressureline
•Positiontheoilpressureline(2)
•Screwonandtightenunionnuts(1)and(3)
Attachingtheexhaustmanifold
•Cleanthesealingsurfaces
•Positiontheintakemanifold(3)asmarked,with
jubileeclip(2)andanewO-ring
•Tightentheproleclip(2)to15Nm
Attachingtheexhaustmanifold
•Cleanthesealingsurfaces
•Positiontheexhaustmanifold(2)withanewseal
(1)
•Screwonandtightenthemountingnuts(3)
Attachingthechargeairmanifold
•Cleanthesealingsurfaces
•InsertanewO-ring(2)andguideband(1)intothe
chargeairmanifold(3)
•Putonthechargeairmanifold(3)withanew
O-ring(5)andT-pinclamp(4)
•TightentheT-pinclamp(4)15Nm
Attachingtheventline
WARNING
Dangerofdamagetopropertyifthe
hoseconnectionisleaking
•Fitthejubileeclipascloseaspossible
tothebead
•Pulltheventlinehose(1)ontothehoseport(2)
•Attachthejubileeclip(3)withHoseclamppliers
forjubileeclips[62]
178AE63stedition
