TURBOCHARGING

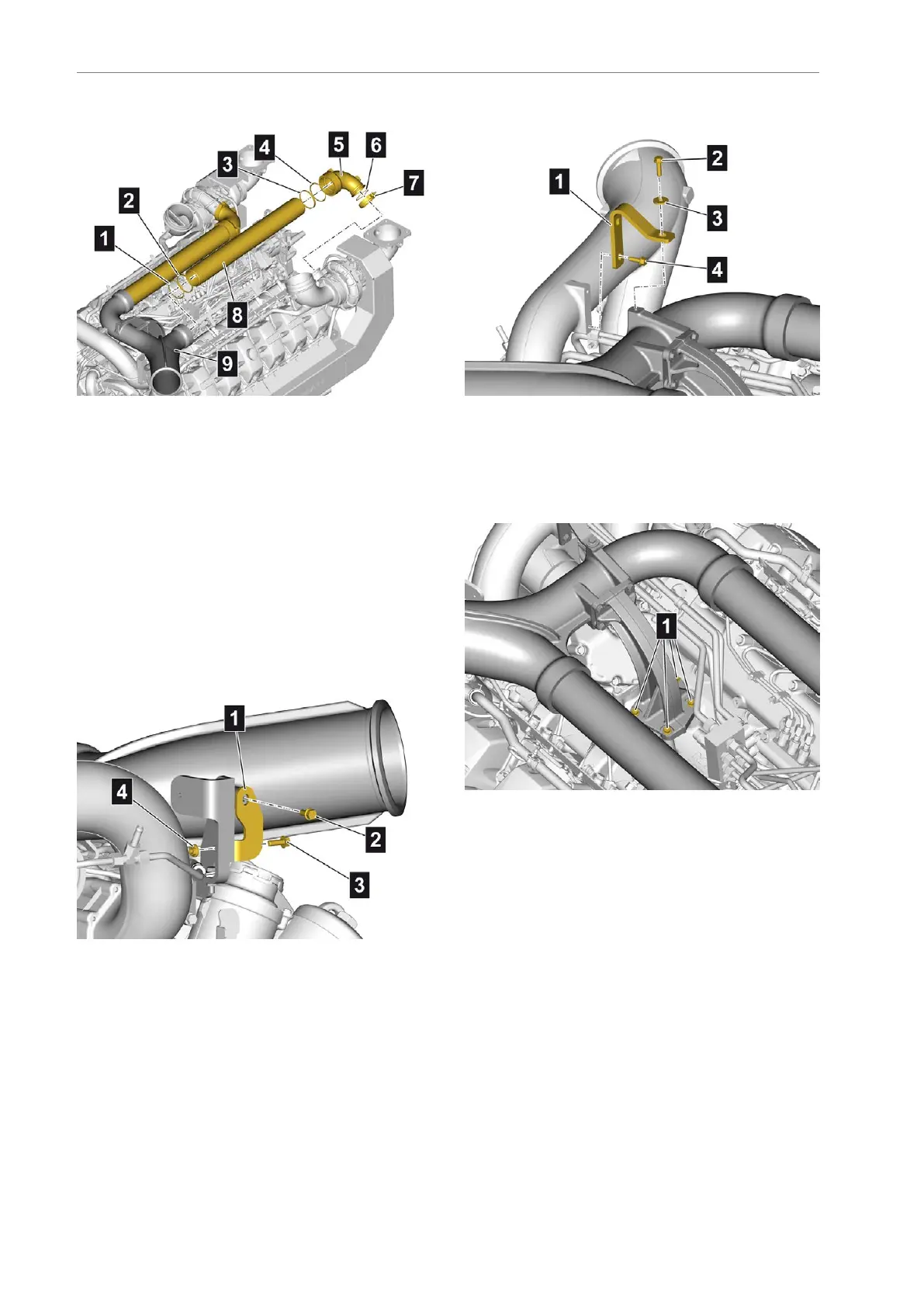

Attachingthechargeairmanifold
•Cleanthesealingsurfaces
•InsertanewO-ring(1)andguideband(2)intothe
chargeairmanifoldinlet(9)
•Inserttheinsertpipe(8)intothechargeair
manifoldinlet(9)
•InsertanewO-ring(4)andguideband(3)intothe
chargeairmanifold(5)
•Putonthechargeairmanifold(5)withanew
O-ring(6)andT-pinclamp(7)
•TightentheT-pinclamp(7)with15Nm
•Repeattheprocedurefortheotherchargeair
manifold
Attachingthechargeairmanifoldholder
•Positiontheholder(1)
•Insertthemountingbolt(3)
•Screwonthemountingnut(4)
•Screwinandtightenthemountingbolt(2)
•Tightenthemountingnut(4)
Attachingthechargeairmanifoldholder
•Positiontheholder(1)
•Screwinandtightenthemountingbolts(4)
•Screwinthemountingbolt(2)withwasher(3)and
tightenit
Tighteningthebracket
•Tightenthemountingbolts(1)
184AE63stedition
