INTAKE/EXHAUSTSYSTEM

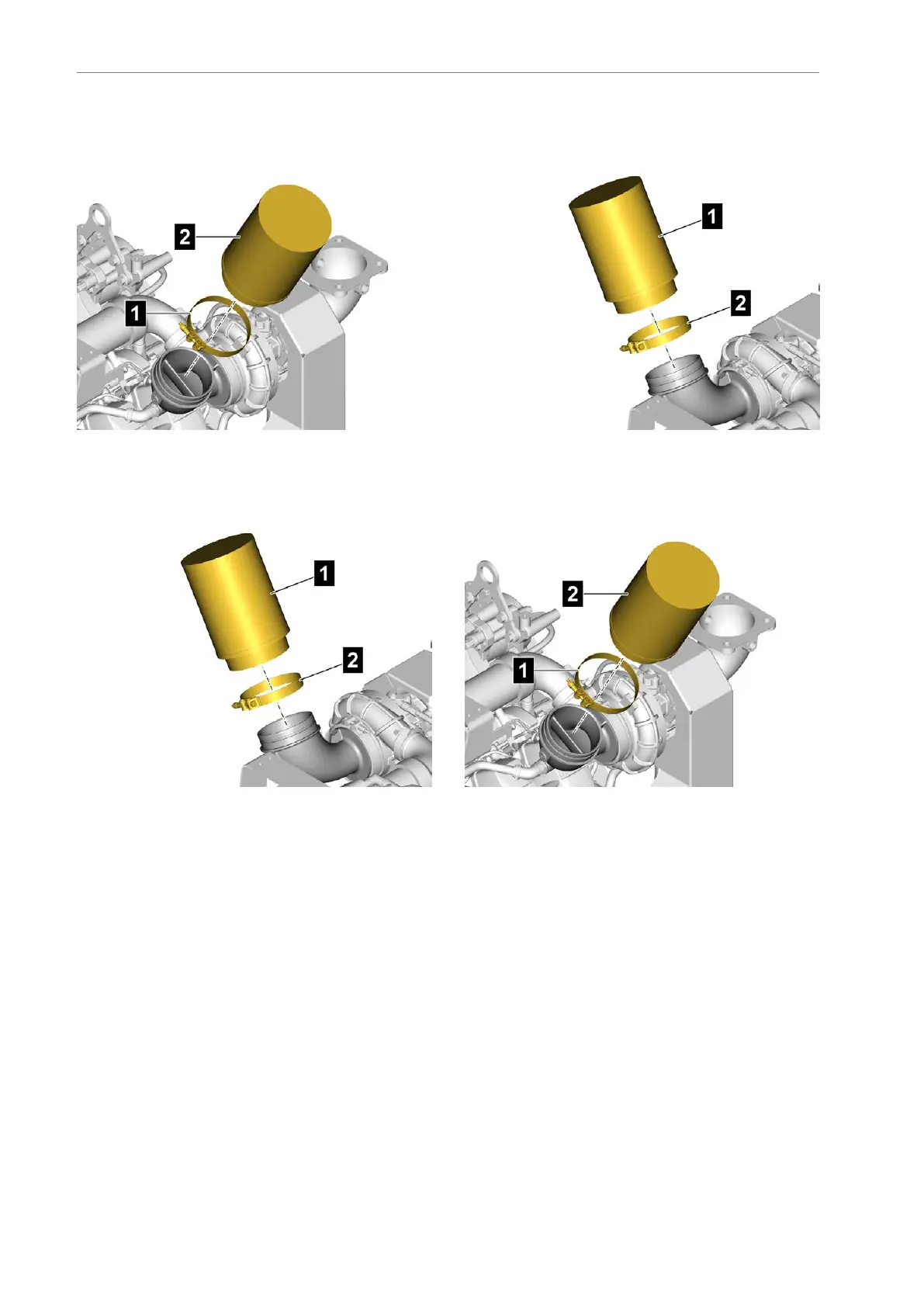

Removingtheairlter

Detachingtheleftairlter

•Unfastenthehoseclamp(1)

•Removetheairlter(2)withhoseclamp(1)

Detachingtherightairlter

•Unfastenthehoseclamp(2)

•Removetheairlter(1)withhoseclamp(2)

Installingtheairlter

Attachingtherightairlter

•Positiontheairlter(1)withhoseclamp(2)

•Tightenthehoseclamp(2)

Attachingtheleftairlter

•Positiontheairlter(2)withhoseclamp(1)

•Tightenthehoseclamp(1)

192AE63stedition
