INTAKE/EXHAUSTSYSTEM

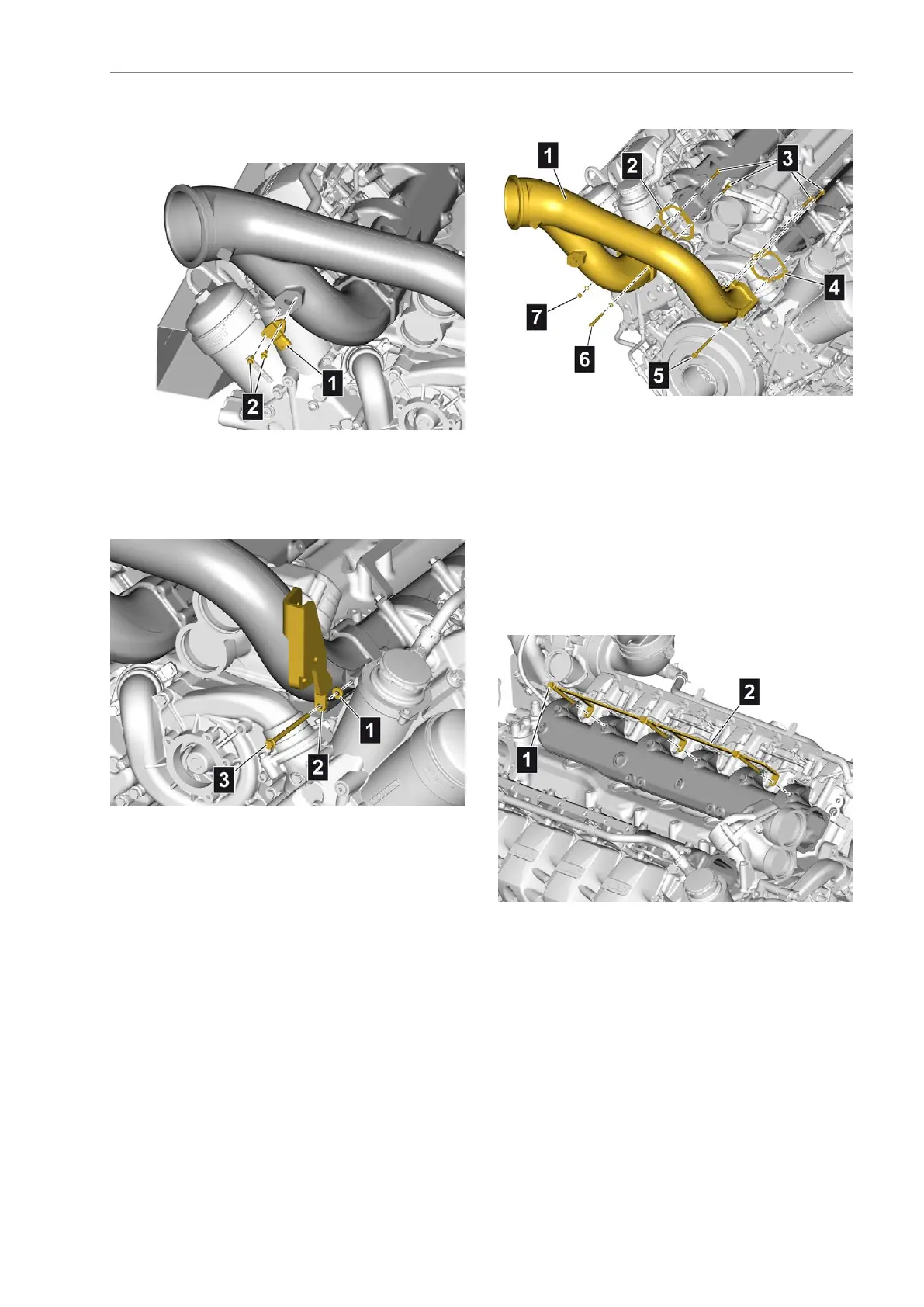

Removingtheleftairdistributionpipe
Detachingthepressuresensor
•Unscrewthemountingbolts(2)
•Pulloutthepressuresensor(1)
•Cleanthesealingsurfaces
Detachingtheholder
•Unscrewthemountingbolt(3)
•Removetheholder(2)andwasher(1)
Removingthechargeairmanifold
•Marktheinstallationpositionofthemountingbolts
(3),(5)and(6)
•Unscrewthemountingbolts(3)and(5)
•Unscrewthemountingbolts(6)andremovewith
thewasher
•Unscrewthemountingnut(7)andremovewiththe
washer
•Removethechargeairmanifold(1)withseals(2)
and(4)
•Cleanthesealingsurfaces
Detachingtheholder
•Unscrewthemountingbolts(1)
•Removetheholder(2)
