INTAKE/EXHAUSTSYSTEM

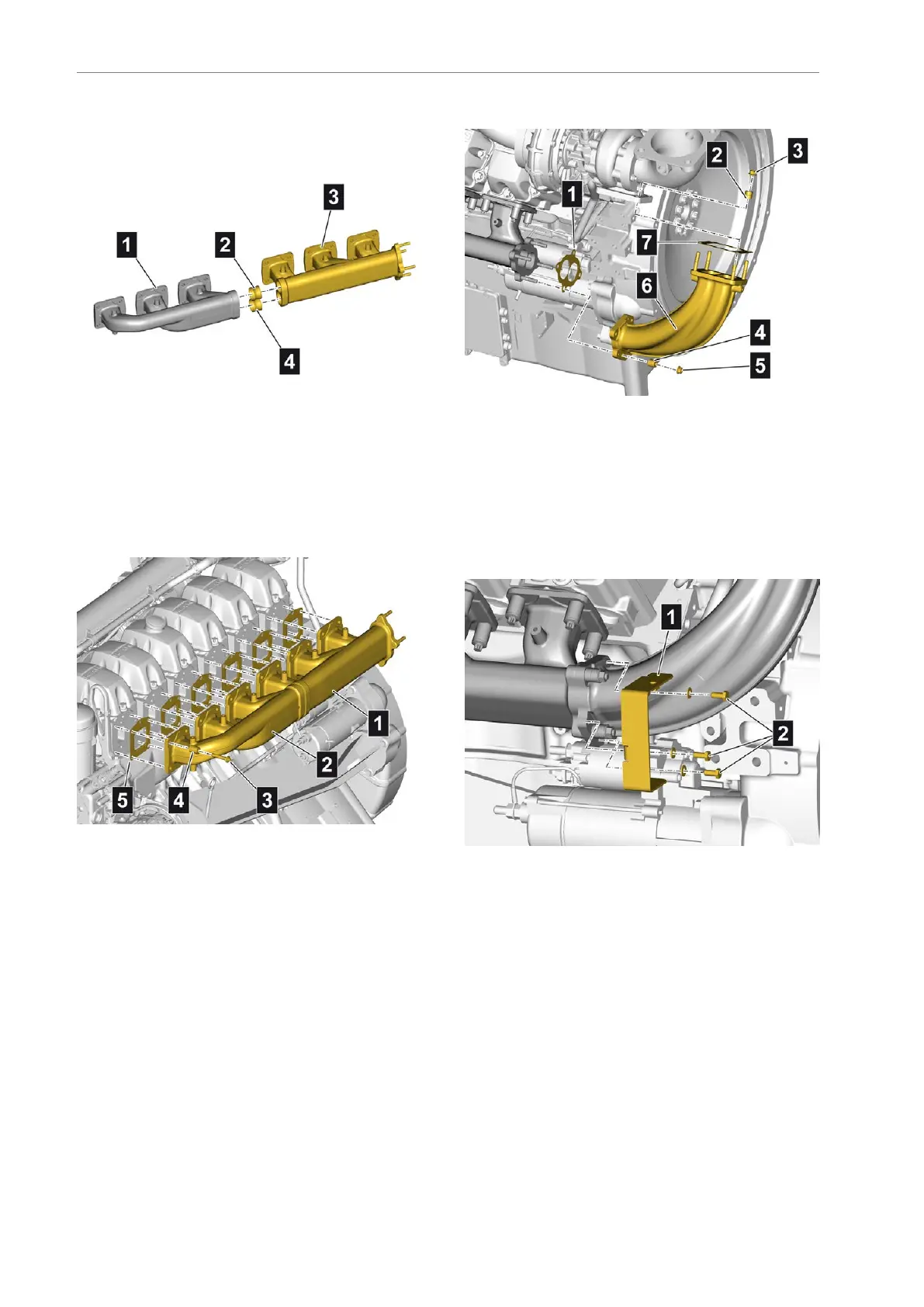

Installingexhaustpipes
Installingconnectingpieces
•Cleanthesealingsurfaces
•Installnewconnectingpieces(2)and(4)inthe
exhaustpipe(1)
•Positiontheexhaustpipe(3)
Mountingtheexhaustpipe
•Cleanthesealingsurfaces
•Fitexhaustpipes(1)and(2)withnewseals(5)
andpositionthem
•Screwinnewmountingbolts(3)withbushes(4)
andtightentoInitialtorque22Nm
•Tightenthemountingbolts(3)to2ndtightening
90°
•Tightenthemountingbolts(3)toFinaltightening
10°
Attachingtheexhaustmanifold
•Cleanthesealingsurfaces
•Positiontheexhaustmanifold(6)withnewseals
(1)and(7)
•Screwonandtightenmountingnuts(5)with
bushes(4)andtightento60Nm
•Screwonandtightenmountingnuts(3)with
bushes(2)andtightento60Nm
Attachingthecoverplateholder
•Positiontheholder(1)
•Screwinmountingbolts(2)withwashersand
tightenthem
208AE63stedition
