ENGINELUBRICATION
Dismantlingtheoilmodule

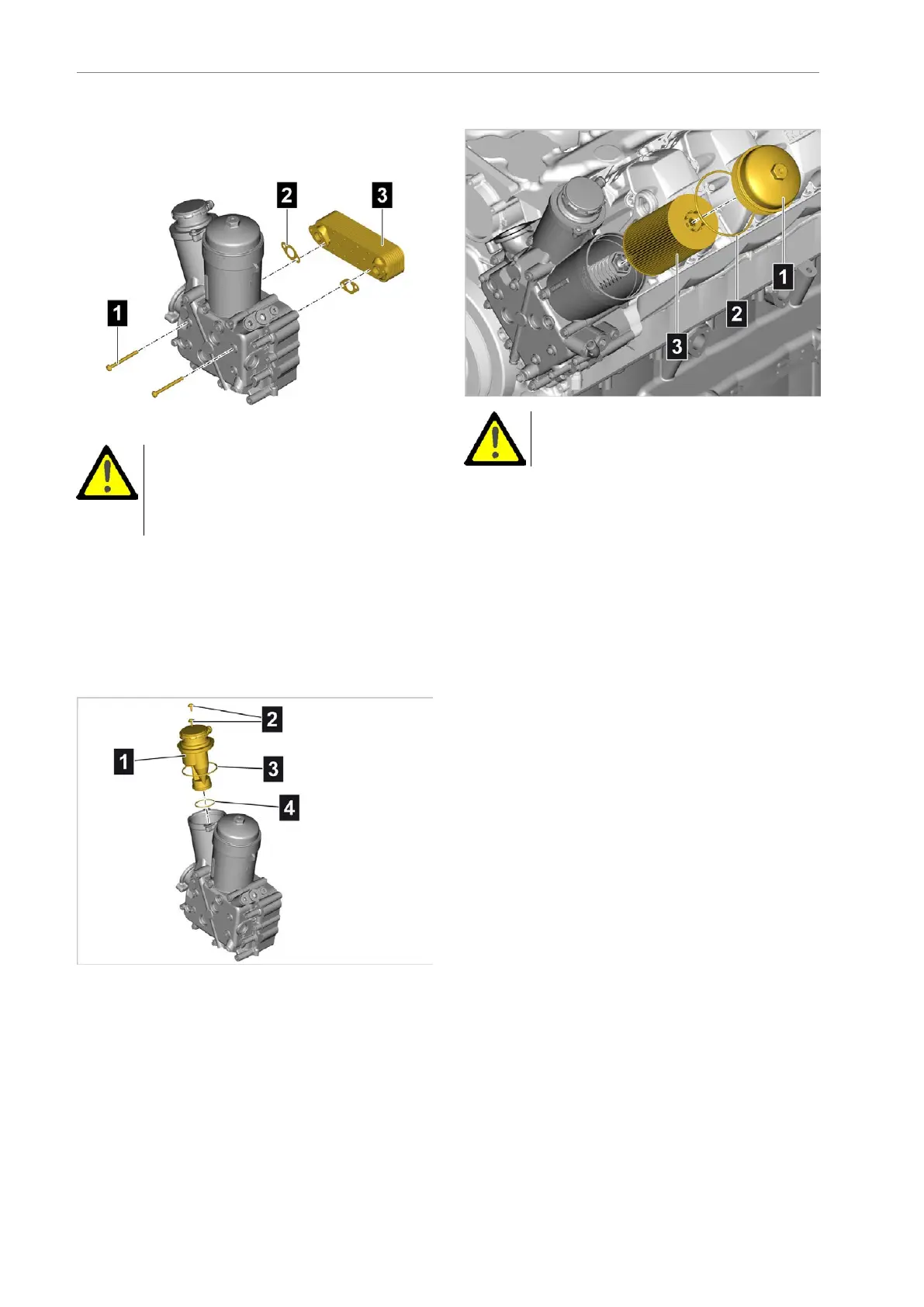

Removingtheoilcooler
WARNING
Componentdamageduetosetting
asidetheoilmoduleincorrectly
•Puttheoilmoduleasidesoasnotto
damagetheoilcooler
•Marktheinstallationpositionofthemounting
bolts(1)
•Unscrewthemountingbolts(1)
•Removetheoilcooler(3)withtheseals(2)
•Cleanthesealingsurfaces
Removingtheoilseparator
•Unscrewthemountingbolts(2)
•Pulltheoilseparator(1)outoftheoilmodule
•RemovetheO-rings(3)and(4)
Removingtheoillter
WARNING
Engineoilcontamination
•Alwaysallowalloftheengineoiltodrain
•Unscrewtheoilltercover(1)2-3turnswiththe
Socket,size36[106]
•Unscrewandremovetheoilltercover(1)with
Socket,size36[106]afterapprox.1-2minutes
•Removetheoillterinsert(3)fromtheoillter
cover(1)
•RemovetheO-ring(2)
276AE63stedition
