CRANKSHAFTOILSEALS

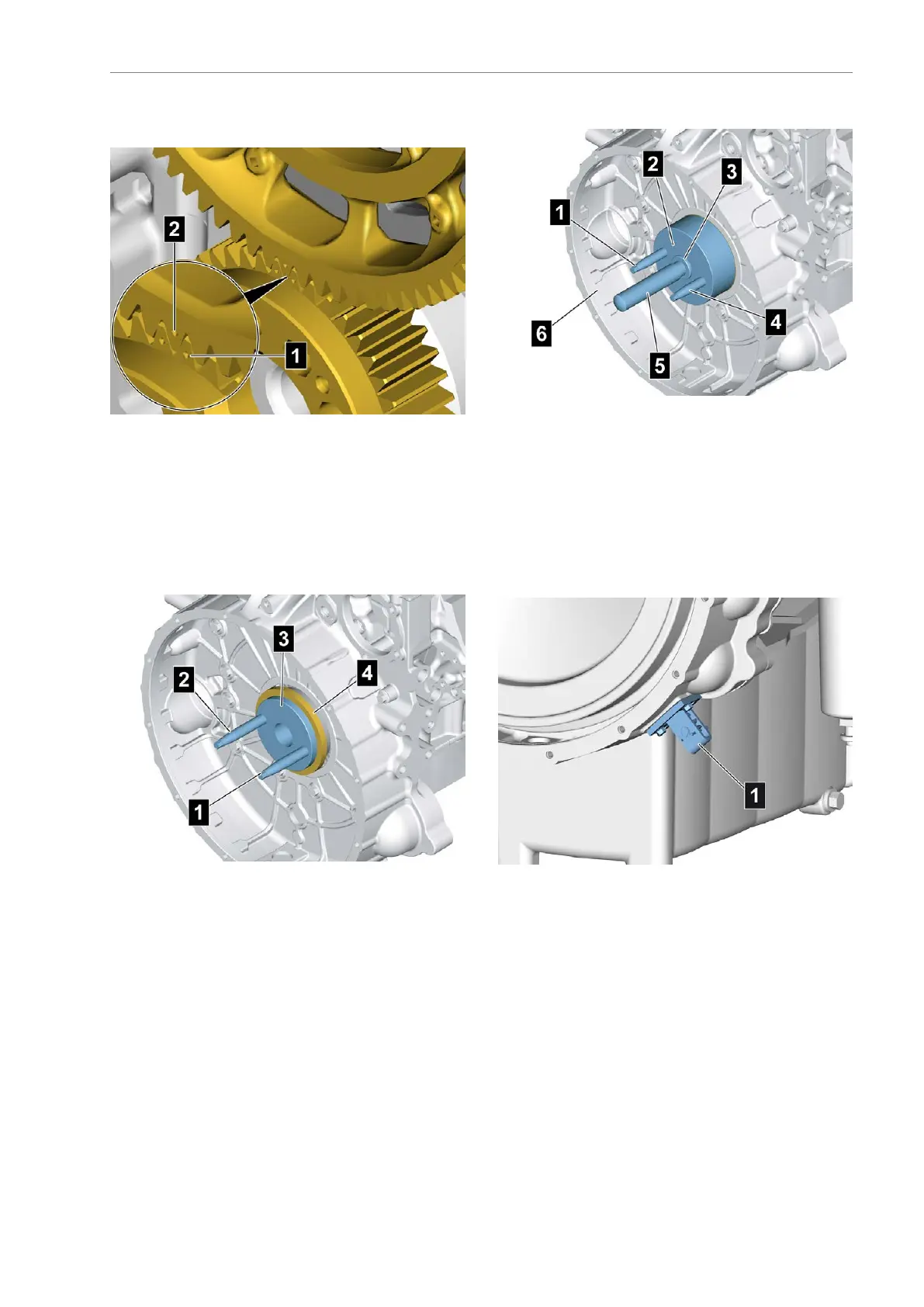

Checkingthecrankshaftgearmarksinrelation
tothecamshaftgear
•Checkthemarksonthecrankshaftgear(1)in
relationtothecamshaftgear(2)
Marks(1)and(2)matchup.
Ifthemarks(1)and(2)donotmatchup,removethe
crankshaftgearandinstallatthemark.Alignthe
crankshaftwiththealignmentpinifnecessary.
Preparingtoinstalltheradialshaftseal
•Separatetwoopposite-facingdiscsfromthe
transportsleeveineachcase
•Positiontheradialshaftseal(4)withsupplied
transportsleeveattheGuideplate[120](3)
•Carefullypushtheradialshaftseal(4)ontothe
Guideplate[120](3)
•PushtheGuideplate[120](3)overtheAligning
tool[122](1)and(2)
•Removethetransportsleeve
Pressingintheradialshaftseal
•AssemblethePress-inbush[121](2)withthe
Plug-onhandle[118](5)andWasher[119](3)
•PushthespecialtoolontotheGuideplate[120]
overtheAligningtool[122](1)and(4)
•Presstheradialshaftsealintotheywheel
housing(6)usingthespecialtooluntilthe
Pressingplate[114](2)isattheGuideplate[120]
•Removethespecialtool
Detachingtheenginebarringgear
•RemovetheEnginebarringgear[115](1)fromthe
ywheelhousing
•AttachtheTDCmarkingplate
•Attachthecapwithnewsealontheywheel
housing
AE63stedition305
