CRANKMECHANISM

Dismantlingthevibrationdamper

WARNING

Componentdamageduetoputtingthe

vibrationdamperasideincorrectly

•Donotlaythevibrationdamperdown

onthediscs

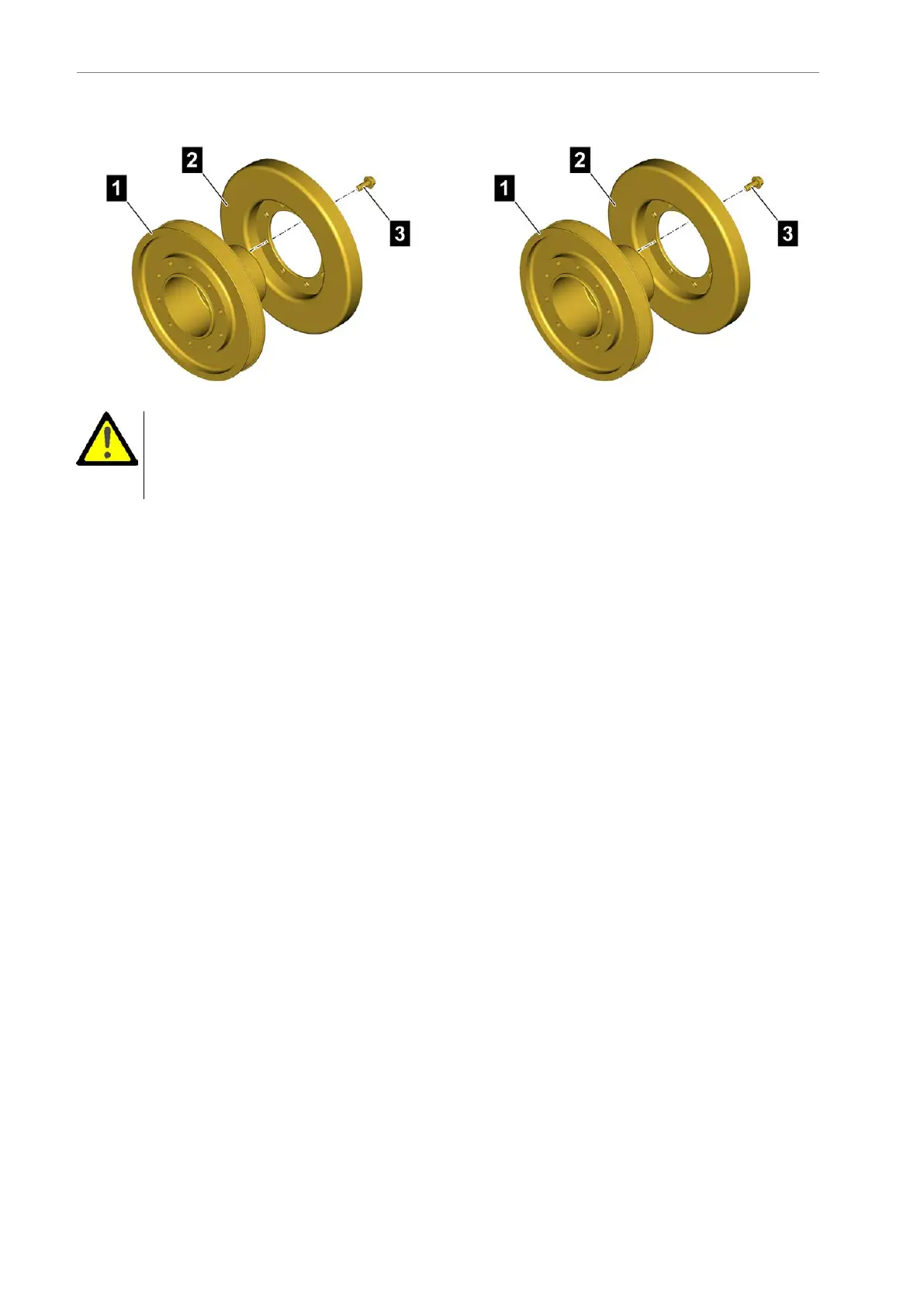

•Unscrewthemountingbolts(3)

•Removethehub(1)fromthevibrationdamper(2)

Assemblingthevibrationdamper

•Insertthehub(1)intothevibrationdamper(2)

•Screwinandtightenthemountingbolts(3)
