CRANKMECHANISM

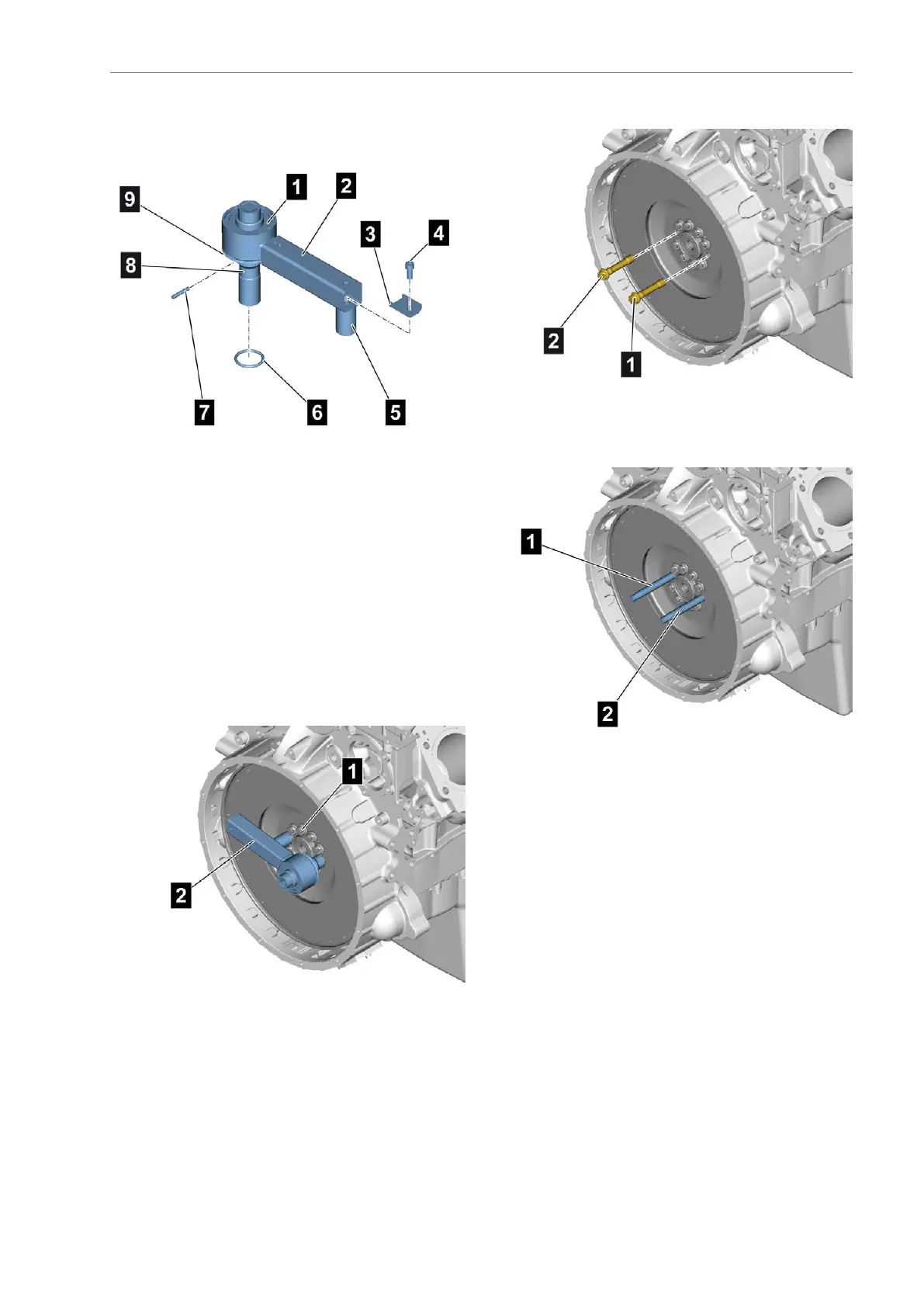

Removingtheywheel
Assemblingthespecialtool
•InserttheT orquemultiplieri=1:3.3[128](1)into
theSupport[129](2)
•AttachtheHoldingdevice[131](5)withthe
Cylinderheadbolt[133](4)andtheAdapter[136]
(3)ontheSupport[129](2)
•PuttheT orqueanglegauge[130](9)ontheT orque
multiplieri=1:3.3[128](1)
•PuttheSocket,size22[127](8)ontheT orque
multiplieri=1:3.3[128](1)andsecureusing
theConnectingpin[134](7)andRubberring
42mm[135](6)
•InsertoneSocketE24[137]eachintotheHolding
device[131](5)andtheSocket,size22[127](8)
Unscrewingtheywheelmountingbolts
•Placethespecialtool(2)ontothemountingbolt
(1)thatisgoingtobeunscrewed
•Unscrewthemountingbolts(1)usingthespecial
tool(2)inconjunctionwiththeSocket[132]
Unscrewingtheywheelmountingbolts
•Unscrewtwooppositemountingbolts(1)and(2)
Screwinginthealigningtools
•ScrewintheAligningtool[126](1)and(2)
•Unscrewtheremainingmountingbolts
AE63stedition319
