CRANKCASE

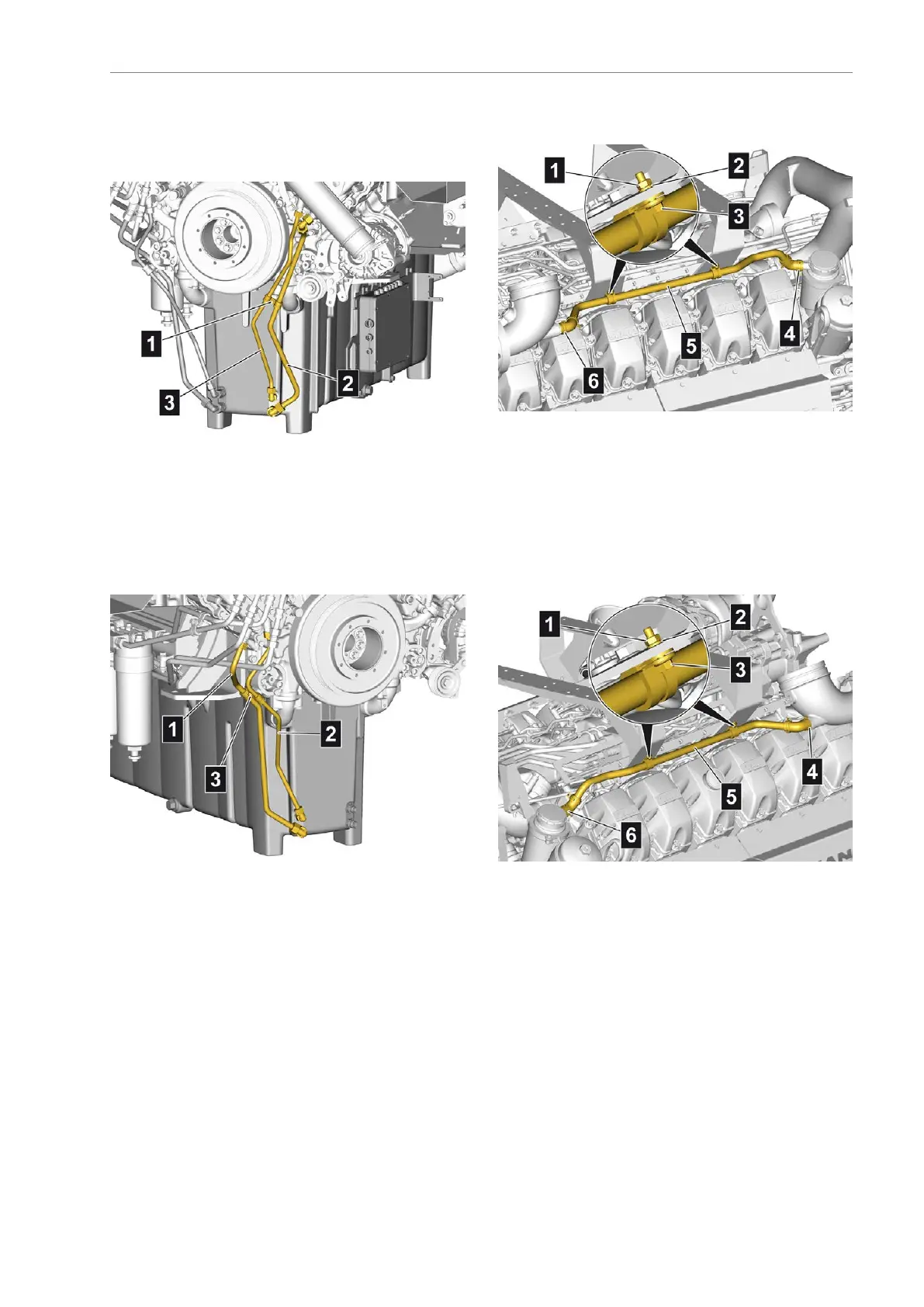

Installingthepositivecrankcase
ventilation
Attachingtheleftoilreturnline
•Positiontheoilreturnlines(2)and(3)sothatthey
arestrain-free
•Tightentheunionnutsfortheoilreturnlines(2)
and(3)
•Mountthefastening(1)
Attachingtherightoilreturnline
•Positiontheoilreturnlines(1)and(2)sothatthey
arestrain-free
•Tightentheunionnutsfortheoilreturnlines(1)
and(2)
•Mountthefastening(3)
Attachingtherightpositivecrankcase
ventilation
•Positiontheventline(5)andpullonthehoseswith
jubileeclips(4)and(6)
•Insertthemountingbolts(3)
•Screwonthemountingnuts(1)withwashers(2)
andtightenthem
•Attachthejubileeclips(4)and(6)usingtheHose
clamppliersforjubileeclips[166]
Attachingtheleftpositivecrankcaseventilation
•Positiontheventline(5)andpullonthehoseswith
jubileeclips(4)and(6)
•Insertthemountingbolts(3)
•Screwonthemountingnuts(1)withwashers(2)
andtightenthem
•Attachthejubileeclips(4)and(6)usingtheHose
clamppliersforjubileeclips[166]
AE63stedition357
