CRANKCASE

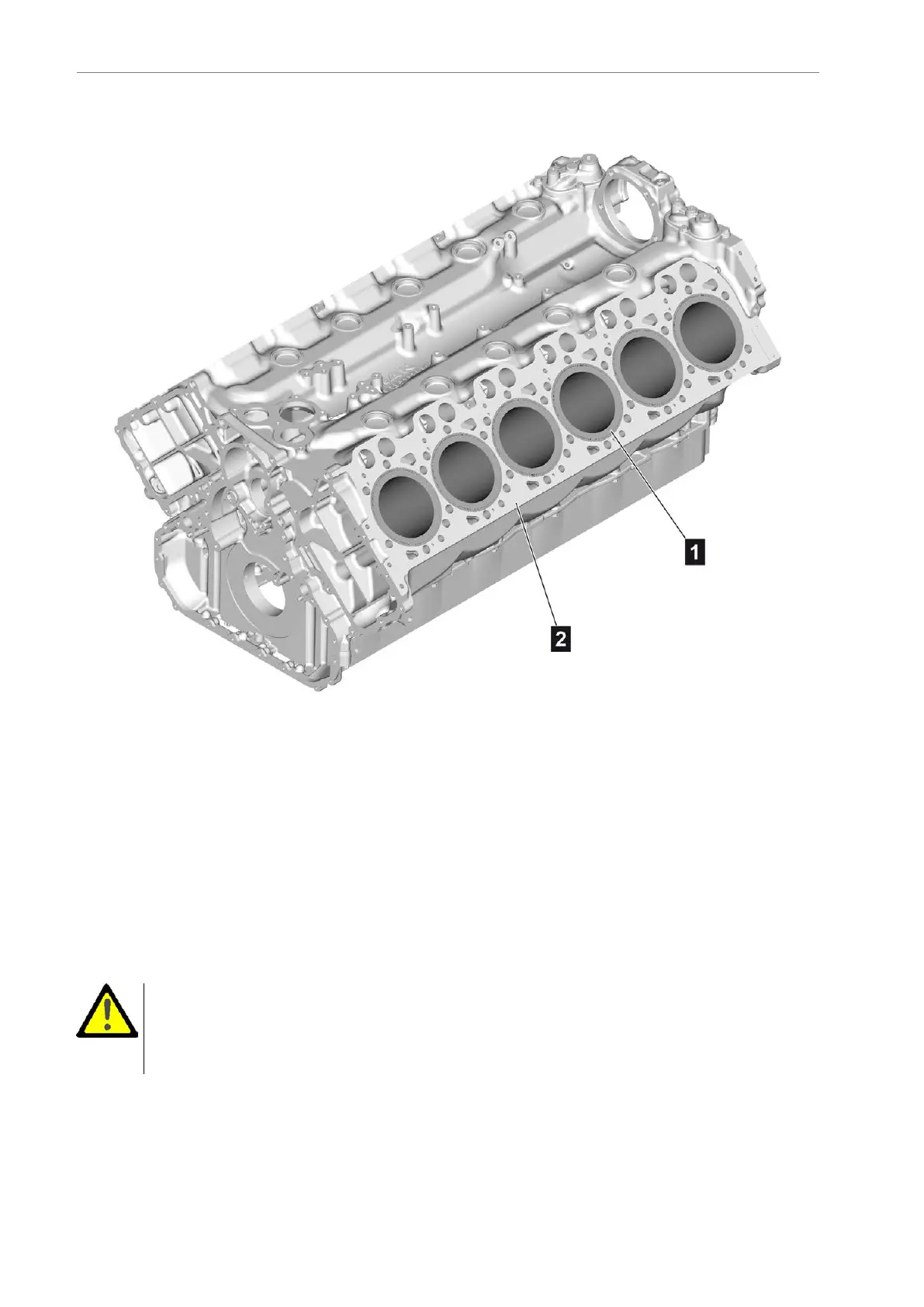

(1)Cylinderliner(2)Crankcase
Cylinderlinerstandard
Totalheightofcylinderliner......................................................................................................262.00mm
Outsidediameterofcylinderlineratcollar...................................................................163.15–163.35mm
Outsidediameterofcylinderlinerstem...................................................................149.439–149.457mm
Collarheightstandard...................................................................................................10.04–10.07mm
Cylinderlinerinsidediameter.................................................................................127.990–128.001mm
Technicaldata
Cylinderlinerstandout..................................................................................................0.035–0.085mm
Depthofcollarrecessincrankcase..............................................................................9.850–10.150mm
Importantinformation
WARNING
Componentdamageduetoincorrectlytightenedscrew/boltconnections
•Ifimpactwrenchesareused,thesemayonlybeusedforpretighteningtomax.50%ofthe
speciedtighteningtorque
•Finaltighteningmustalwaysbeperformedmanuallyusingatorquewrench
368AE63stedition
