ENGINEELECTRICS

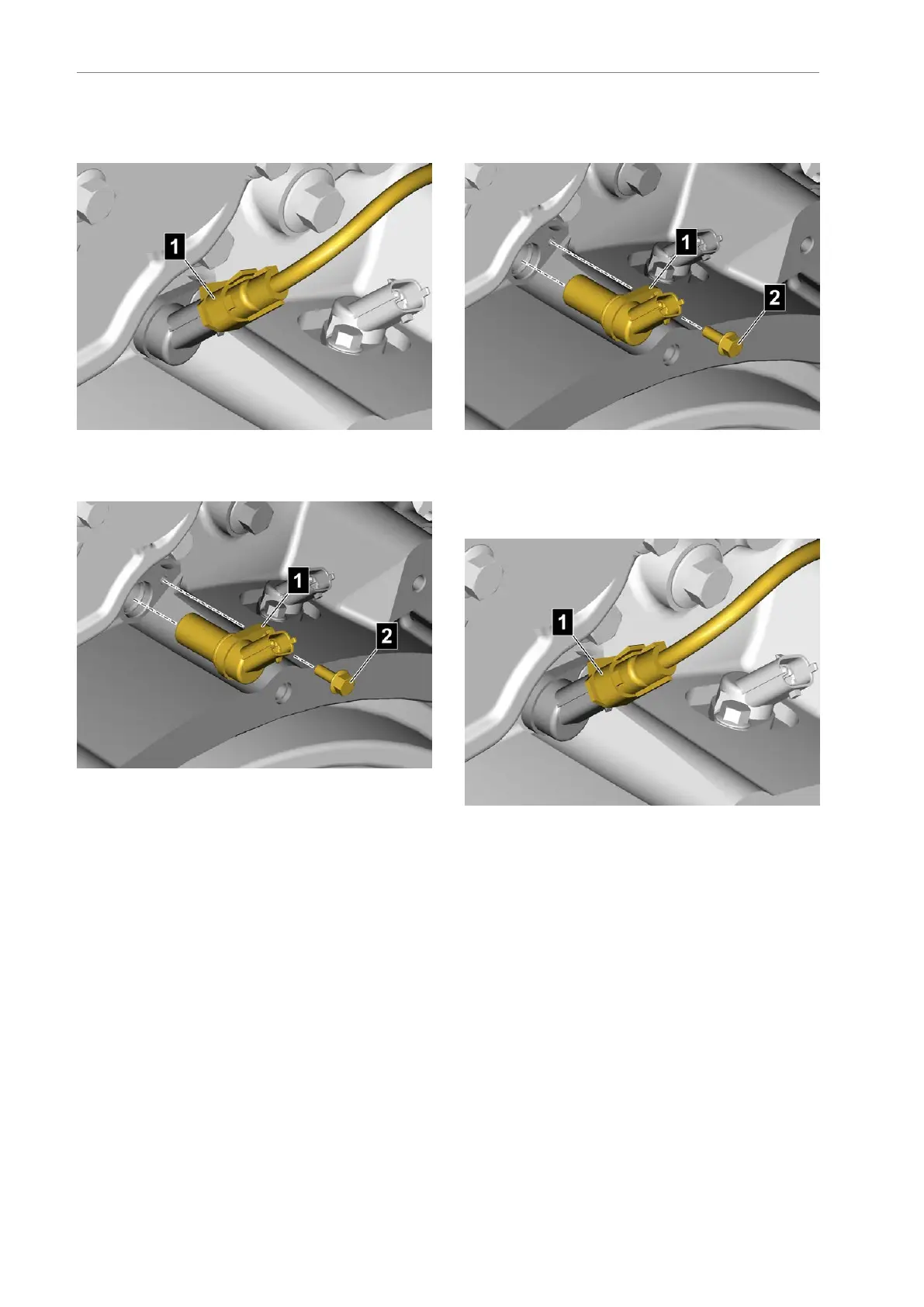

Removingthecamshaftspeedsensor

Disconnectingtheelectricalconnection

•Disconnecttheelectricalconnection(1)

Removingthespeedsensor

•Unscrewandremovethemountingbolt(2)

•Pulloutthespeedsensor(1)

Installingthecamshaftspeedsensor

Installingthespeedsensor

•Insertthespeedsensor(1)withanewO-ring

•Screwinthemountingbolt(2)andtightento8Nm

Connectingtheelectricalconnection

•Connecttheelectricalconnection(1)

44AE63stedition
