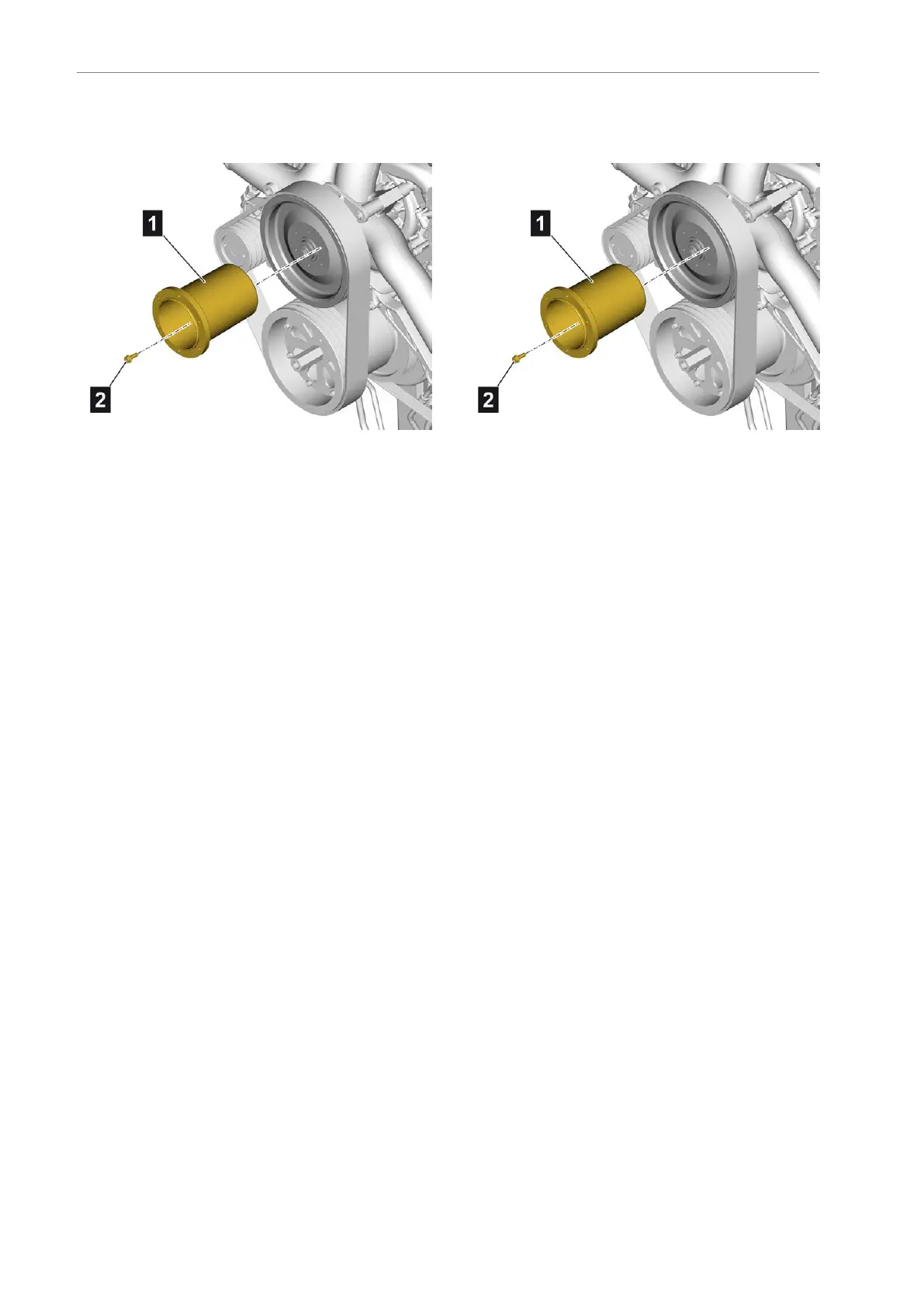

COOLING
SYSTEM
Removing
the
intermediate
ange
Detaching
the
intermediate
ange
•
Unscrew
the
mounting
bolts
(2)
•
Remove
the
intermediate
ange
(1)
Installing
the
intermediate
ange
Attaching
the
intermediate
ange
•
Position
the
intermediate
ange
(1)
•
Screw
in
and
tighten
the
mounting
bolts
(2)
64
AE6
3st
edition
65
67
