ADD-ONUNITS
Removingthestarter

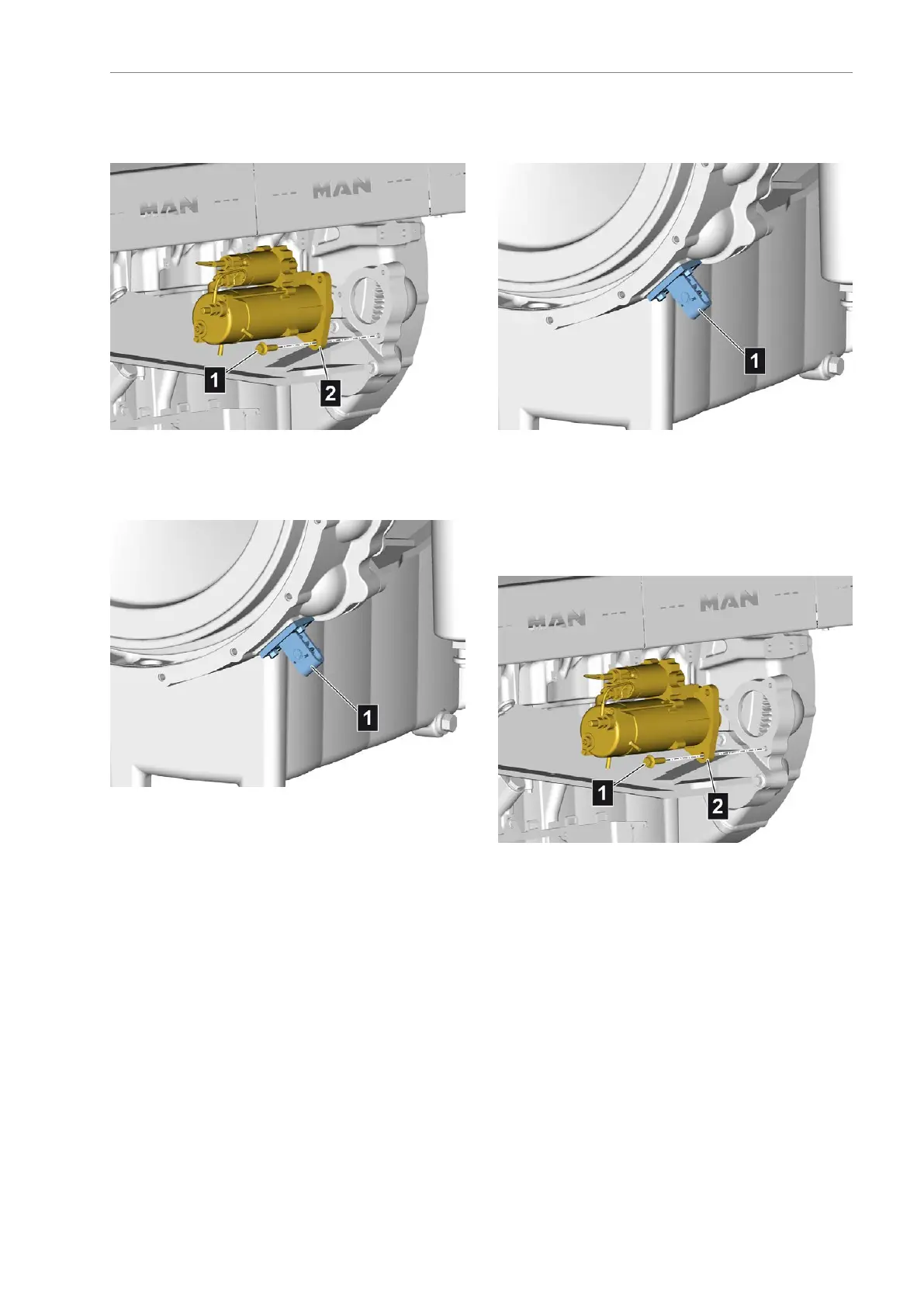

Detachingthestarter
•Unscrewthemountingbolts(1)
•Removethestarter(2)fromtheywheelhousing
Attachingtheenginebarringgear
•RemovethecapwithsealandTDCmarkingplate
fromtheywheelhousing
•AttachtheEnginebarringgear[3](1)tothe
ywheelhousing
•Turntheenginethrough360°withGearratchet[4]
andcheckthestarterringgearforwear
Installingthestarter
Detachingtheenginebarringgear
•RemovetheEnginebarringgear[3](1)fromthe
ywheelhousing
•AttachtheTDCmarkingplate
•Attachthecapwithnewsealontheywheel
housing
Attachingthestarter
•Insertthestarter(2)intotheywheelhousing
•Screwinandtightenthemountingbolts(1)
