ADD-ONUNITS
Removingthefancarrierwithfan
bearing

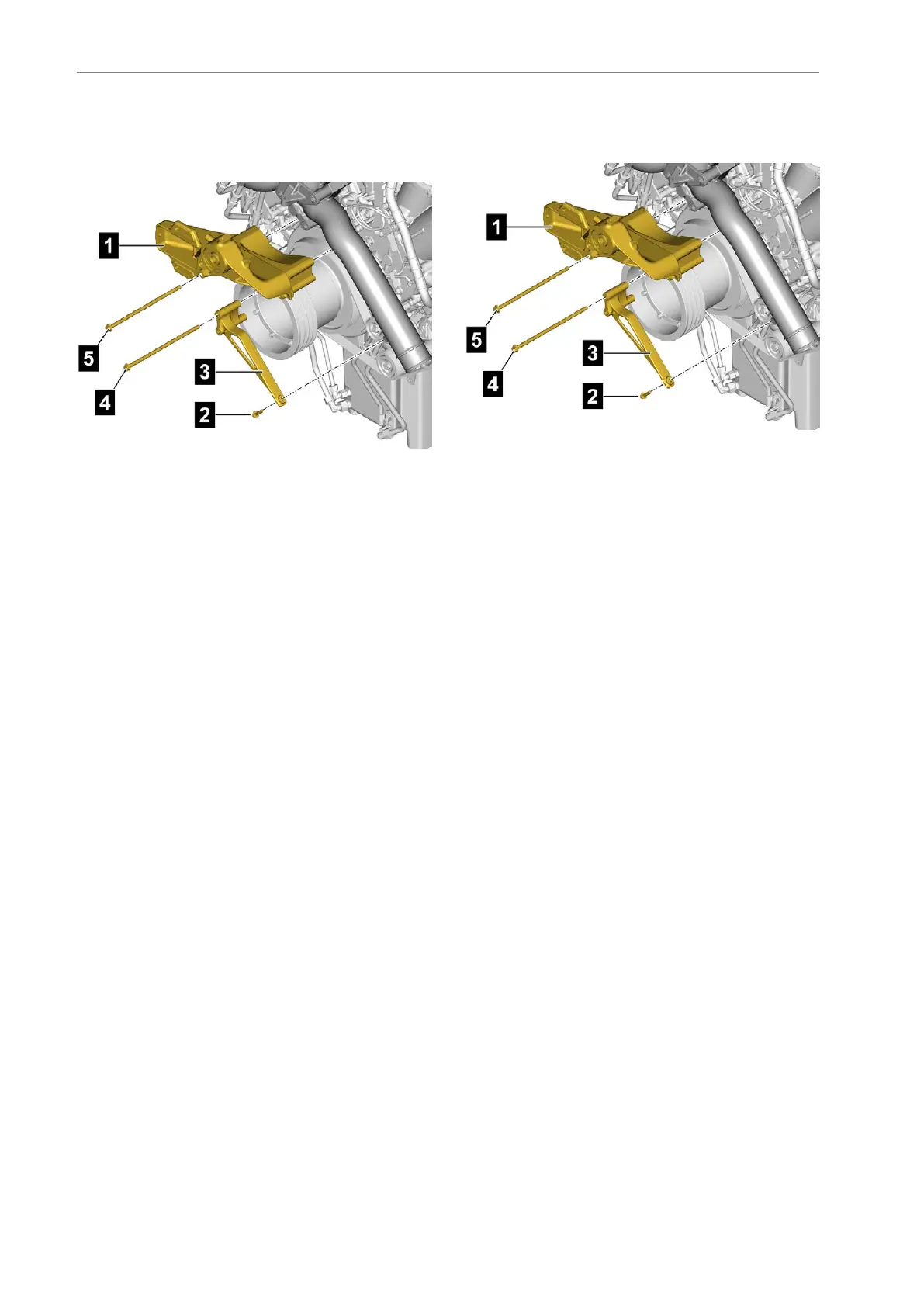

Detachingthefancarrierwithfanbearing
•Unscrewthemountingbolts(2)and(4)
•Removetheholder(3)
•Unscrewthemountingbolts(5)
•Removethefancarrier(1)
Installingthefancarrierwithfanbearing
Attachingthefancarrierwithfanbearing
•Positionthefancarrier(1)
•Screwinandtightenthemountingbolts(5)
•Positiontheholder(3)
•Screwinthemountingbolts(2)and(4)andthen
tightenthem
