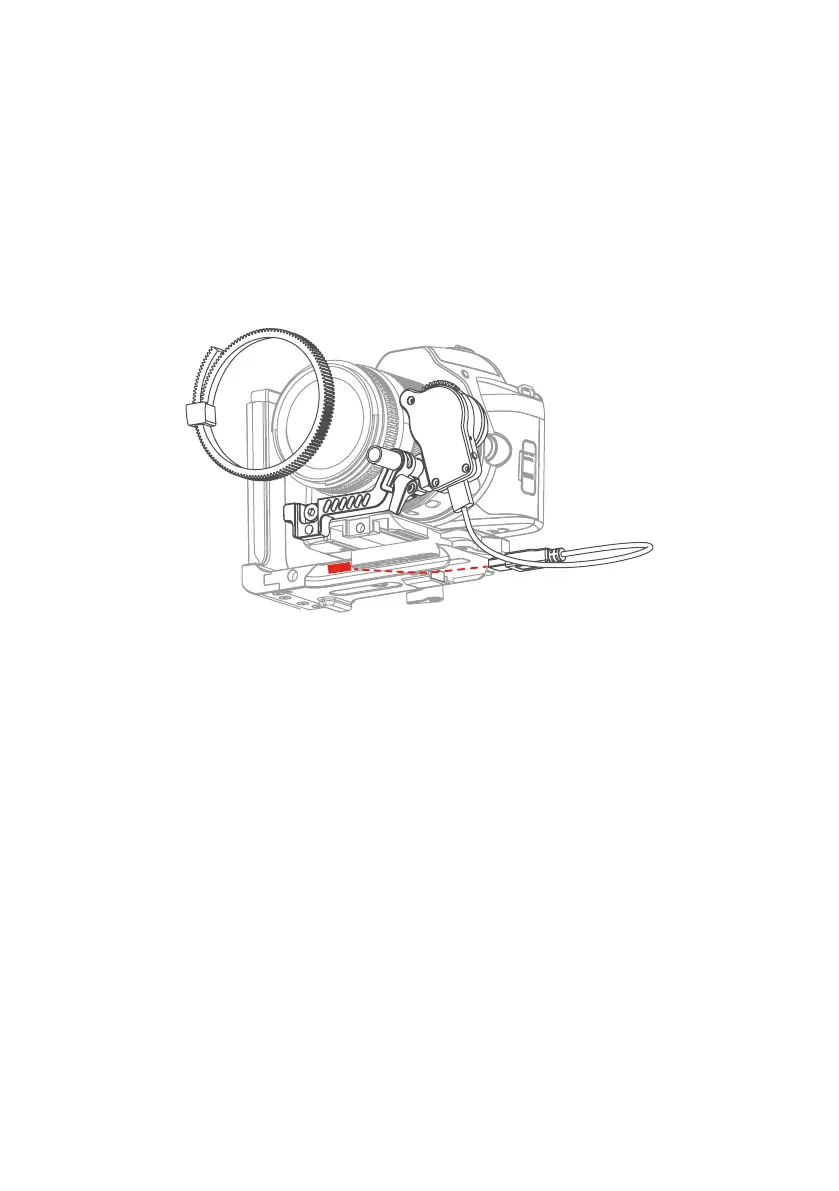

6.2.2 Follow focus (FF) - only on model MVG460FFR
(1) Fix the lens gear to the camera's focus ring position.
(2) Fasten the fixed bracket to the quick release plate of the Gimbal with a hexag-
onal screw, and insert the aluminum tube.
(3) Insert the follower into the aluminum tube, lock the fixed thumb screw on the
follower, move the aluminum tube to adjust the front and rear position so as to
make the follower gear and the lens gear engage, and lock the fixed thumb screw
on the fixed bracket.
(4) Insert the data cable into the USB port of the fixed plate and the installation is
completed.
Disclaimer
Thanks for using Manfrotto Gimbal. The information in this document affects
your safety and your legal rights and responsibilities. Read the entire document
carefully to ensure proper configuration before use, Failure to read and follow in-
structions and warnings in this document may result in serious injury to yourself
or others, or damage to your products or damage to other objects in the vicinity.
By using this product, you hereby signify that you have read this disclaimer and
warning carefully and that you understand and agree to abide by the terms and
conditions herein. You agree that you are solely responsible for your own conduct
while using this product, and for any consequences thereof. You agree to use this
product only for purposes that are proper and in accordance with all applicable
laws, rules, and regulations, and all terms, precautions, practices, policies and
guideline Manfrotto has made and may make available.
Manfrotto accepts no liability for damage, injury or any legal responsibility in-
curred directly or indirectly from the use of product.
Manfrotto will not provide any service for any product obtained from abnormal
channels.
