8

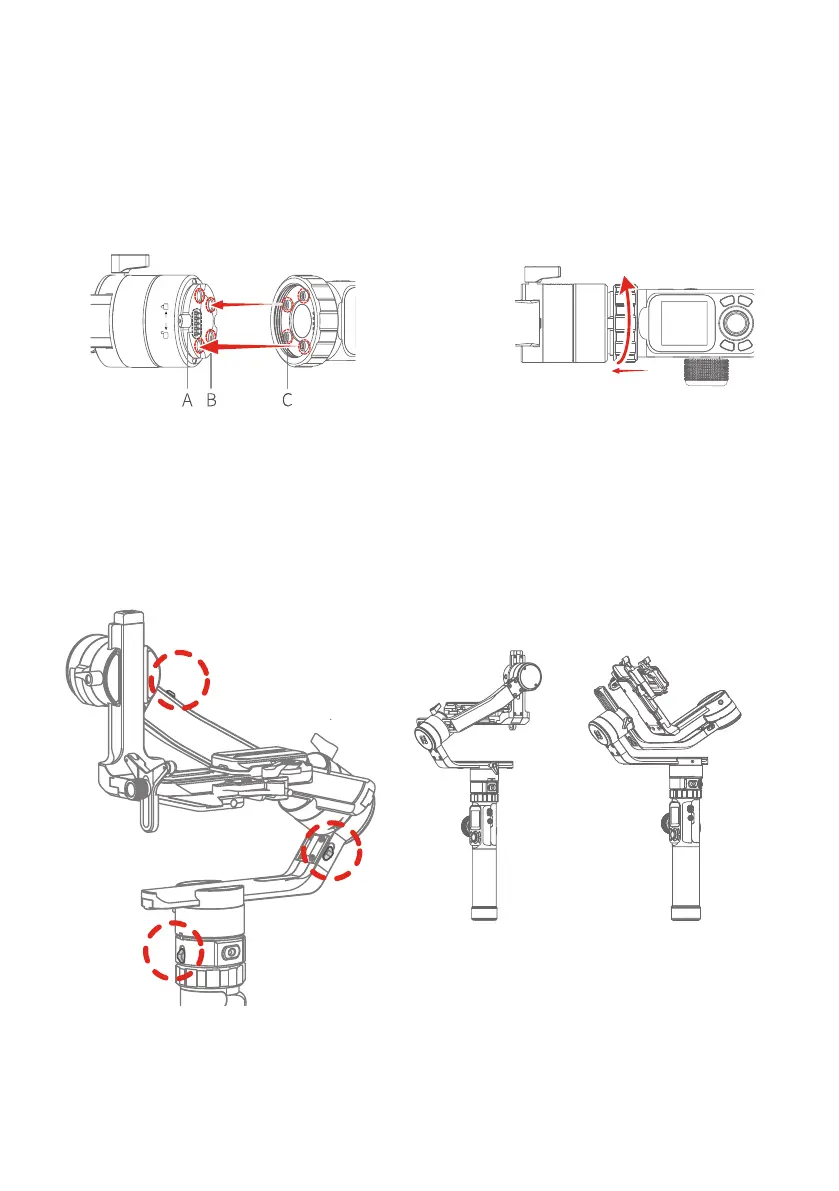

2.3 Handle Installation
Align the handle positioning screw with the corresponding positioning holes
under the pan axis machine and then tighten the fixing ring.
⚠
The four positioning screws must be aligned with the corresponding
positioning holes and then tighten the fixing ring.
Alignment
Tight
Alignment
A. Stylus
B. Positioning hole
C. Positioning screw
Loose
2.4 Positioning Lock
Each of the three rotating axis has one positioning lock for convenient
positioning and storage purposes. Be sure to unlock them before using the
Gimbal.
Balanced lock Stored lock
