Manitou MAN'GO 12 Repair Manual

17
MOTORIZATION
10
647534EN
10 - 10/01/2017

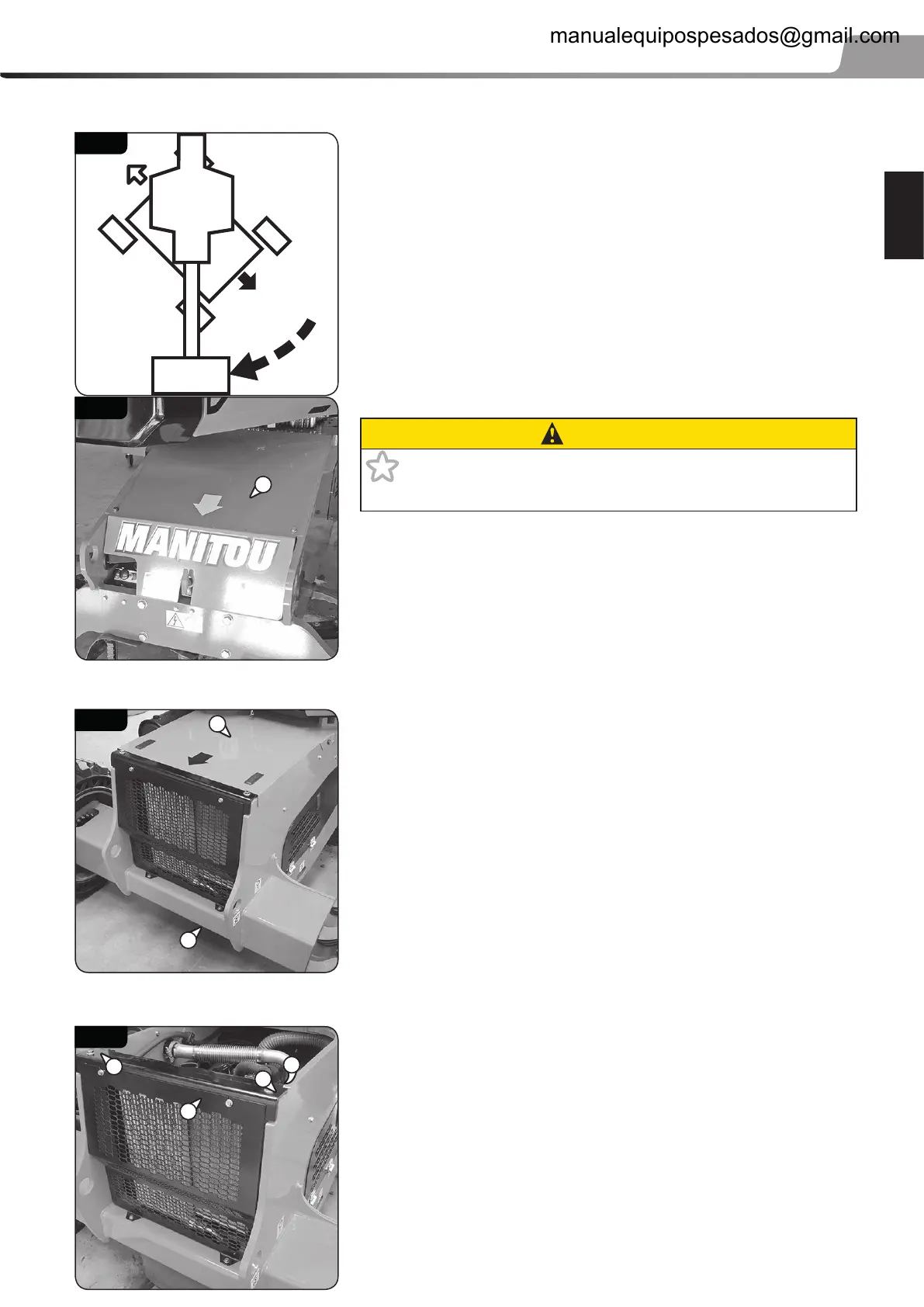

10.2 ENGINE REMOVAL - REFITTING
10.2.1 PREPARATION AND SAFETY INSTRUCTIONS
Place the basket 45° towards the left.
Take o the front casing (1, 010 - 2).
PRECAUTION
1 Battery cut-o: the alternator is still connected, it is therefore
necessary to disconnect the battery.
Disconnect the battery's negative terminal, then the positive
terminal.
10.2.2 RADIATOR REMOVAL
Remove the engine cover (1, 010 - 3).
Remove the protective plate from the underside of the frame (2,
010 - 3).
Place a container under the machine, remove the radiator drain
plug and ller plug.
Remove the grill (1, 010 - 4).
Remove the upper crossbar (3 screws) (2, 010 - 4).
10 - 1
10 - 2
1
10 - 3
1
2
10 - 4
2
1
2
2
