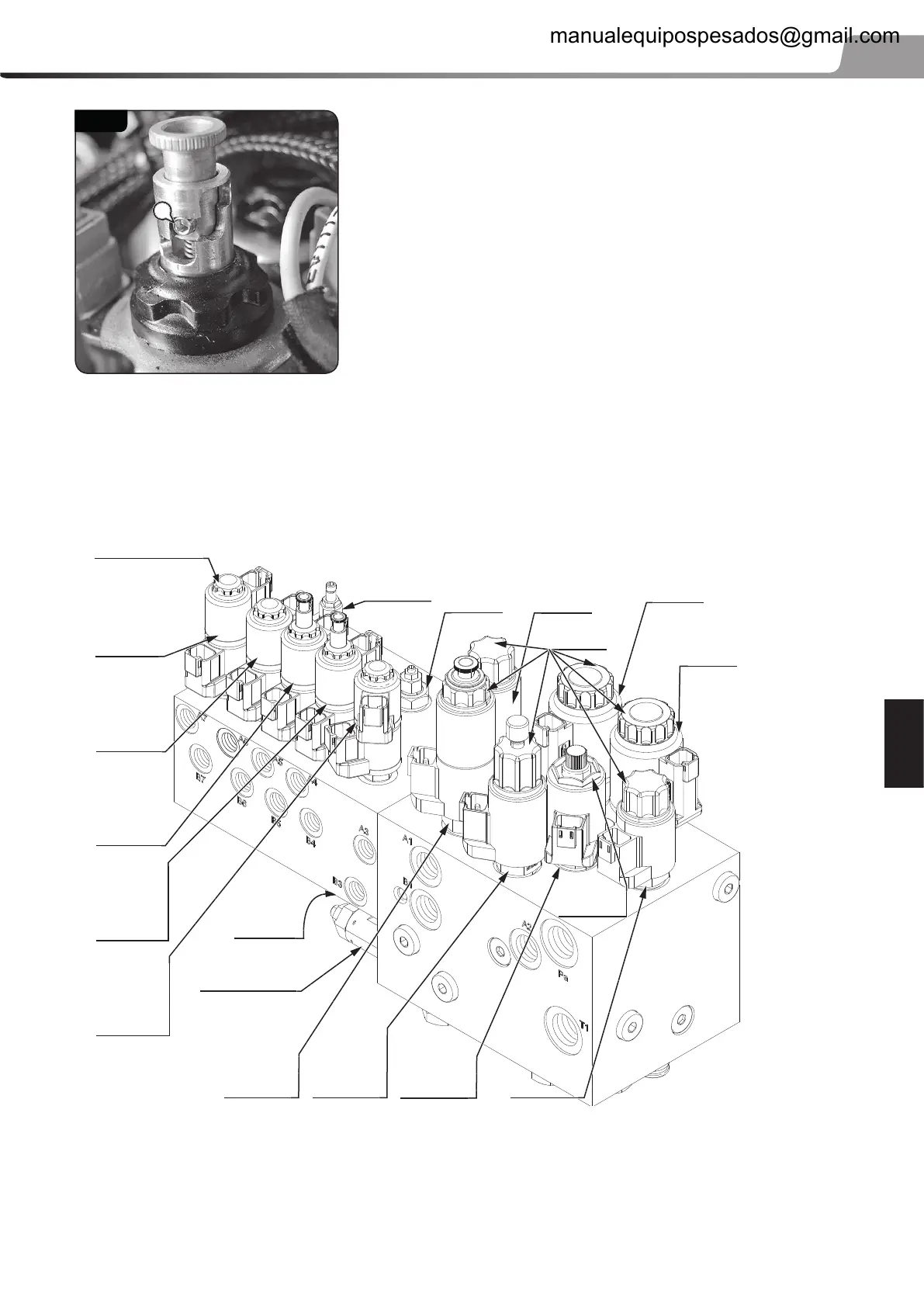

70.4.3 VALVE NEUTRAL POSITION
Neutral position (1, 070 - 1).
70.4.4 HYDRAULIC BLOCK TIGHTENING TORQUE
70 - 1
1
2±1 N.m (1±0.74 ft-lb)
EV112
EV113
11/16 in
18±2 N.m
(13±1.48 ft-lb)
EV106
EV107
11/16 in
18±2 N.m
(13±1.48 ft-lb)
EV108
EV109
11/16 in
18±2 N.m
(13±1.48 ft-lb)
EV114
EV115
11/16 in
18±2 N.m
(13±1.48 ft-lb)
EV110
EV111
11/16 in
18±2 N.m
(13±1.48 ft-lb)
L1
32 mm
53±3 N.m
(39±2.21 ft-lb)
L2
21 mm - 30±1.5 N.m
(22±1.11 ft-lb)
EV118
EV119
1 in
53±3 N.m
(39±2.21 ft-lb)
EV120
1 in
53±3 N.m
(39±2.21 ft-lb)
EV121
1 in
53±3 N.m
(39±2.21 ft-lb)
EV101
1 in
53±3 N.m
(39±2.21 ft-lb)
1 in - 4±1 N.m
(3±0.74 ft-lb)
R1
11/16 in
18±2 N.m
(13±1.48 ft-lb)
L4
21 mm
25±1.5 N.m
(18±1.11 ft-lb)
EW108
24 mm
43±2 N.m
(32±1.48 ft-lb)
EW105
1-1/18 in
53±3 N.m
(39±2.21 ft-lb)
EW106
1-1/18 in
53±3 N.m
(39±2.21 ft-lb)
4±1 N.m
(3±0.74 ft-lb)
