Manitou MAN'GO 12 Repair Manual

TRANSMISSION
28
20
647534EN
20 - 15/01/2017

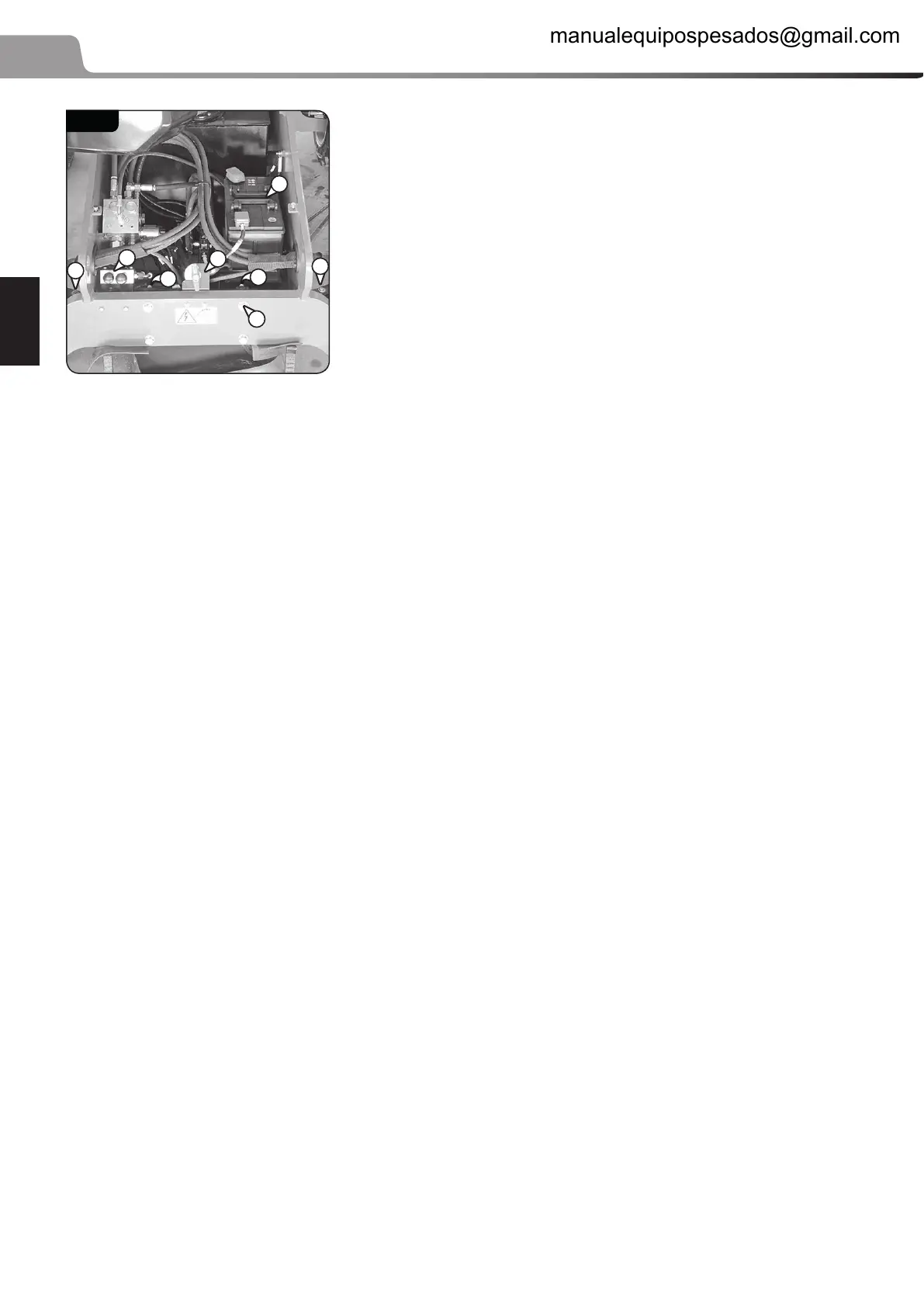

Disconnect the battery (1, 020 - 26), slide the cables towards the rear.
Remove the battery cut-o support bracket (2, 020 - 26).
Remove the freewheel valve support bracket (3 , 020 - 26).
Disconnect the two hoses from the steering cylinder (4 , 020 - 26).
Remove the pin locking screws (5 , 020 - 26).
Remove the fastening bolts (6 , 020 - 26) and take out the cylinder.
STEERING CYLINDER REFIT
Ret the cylinder connections towards the bottom.
2 Steering rod pin: Bring into contact.
2 Pin locking screws: 26 N.m (230.12 lb-in) ±10%.
2 Fastening screws: 255 N.m (2256.94 lb-in) ±10%.
20 - 26
1
5
6
4
2
4
3
5
