Manitou MAN'GO 12 Repair Manual

27
TRANSMISSION
20
647534EN
20 - 15/01/2017

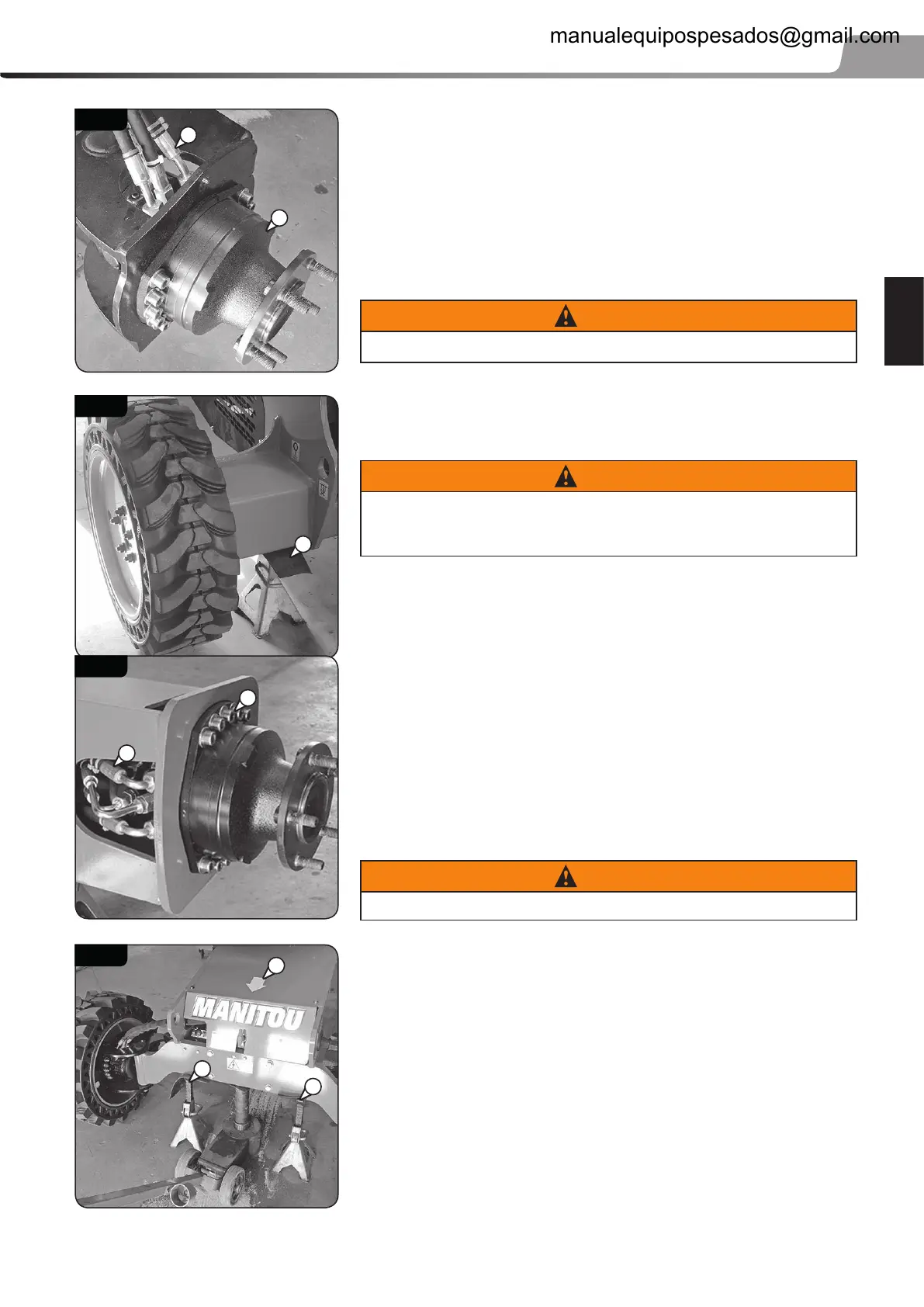

Identify the 4 hoses (1, 020 - 22) and disconnect them.
Remove the rear wheel engine (2, 020 - 22).
FRONT WHEEL ENGINE REFIT
Check the cleanliness of the engine bearing, the passage of the
hoses and seat the engine rmly on its bearing.
2 Wheel motor fastening nuts: 111 N.m (982.43 lb-in) ±10%.
2 Wheel screws: 250 N.m (2212.69 lb-in) ±10%.
WARNING
Change the Norlock washers following each removal.
20.4.3 REAR WHEEL MOTOR REMOVAL  REFIT
WARNING
Reminder: Load on one wheel (3 96 kg (211 lbs)): from 1000 kg (2204 lbs)
(transport) to 2700 kg (5952 lbs) (max working).
Change the Norlock washers following each removal.
Place the rear axle on 2 axle stands (1, 020 - 23).
Remove the wheel.
Place an oil container under the wheel engine.
Identify the 4 hoses (1, 020 - 24) and disconnect them.
Remove the rear wheel engine (2, 020 - 24).
REAR WHEEL ENGINE REFIT
Check the cleanliness of the engine bearing, the passage of the
hoses and seat the engine rmly on its bearing.
2 Wheel motor fastening nuts: 111 Nm (982.43 lb-in) ±10%.
2 Wheel screws: 250 N.m (2212.69 lb-in) ±10%.
WARNING
Change the Norlock washers following each removal.
20.4.4 STEERING CYLINDER REMOVAL  REFIT
Place the axle on two axle stands (1, 020 - 25), place a container
beneath it.
Remove the front cover (2, 020 - 25)
20 - 22
1
2
Move to 85 N.m (752.31 lb-in) (Dacromet black screw)
when DT is applied.
Old screw 111 N.m (982.43 lb-in) (yellow + washer).
Consult After-Sales Service or Product Quality to
speak of screw change when retting.
20 - 23
1
20 - 24
1
2
Move to 85 N.m (752.31 lb-in) (Dacromet black screw)
when DT is applied.
Old screw 111 N.m (982.43 lb-in) (yellow + washer).
Consult After-Sales Service or Product Quality to
speak of screw change when retting.
20 - 25
2
1
1
