Manitou MAN'GO 12 Repair Manual

HYDRAULICS
48
70
647534EN
70 - 10/01/2017

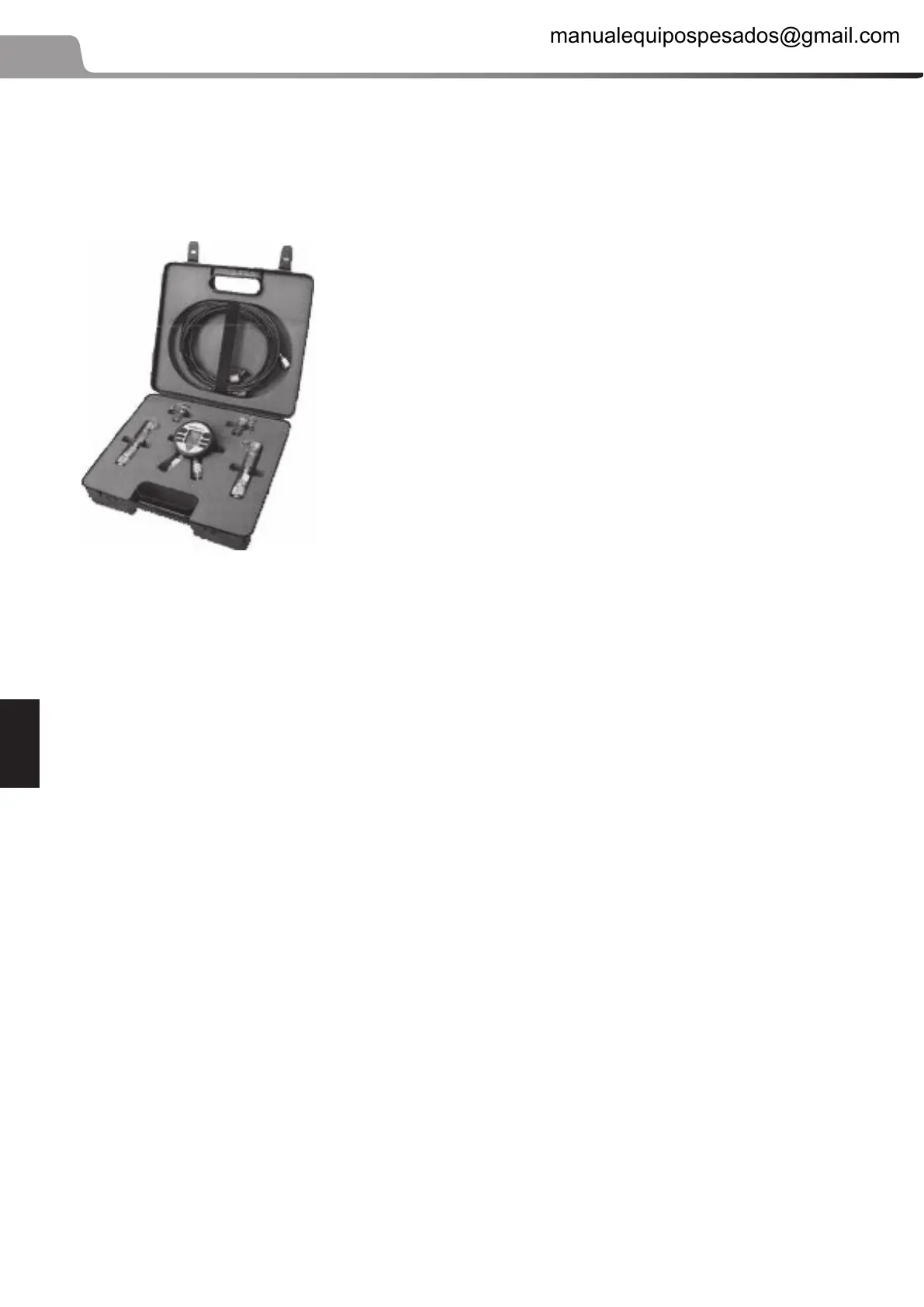

70.6.2 DIGITAL MANOMETER BOX
Digital Manometer kit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .662187
Consisting of:
1 -
1 digital gauge P HP 700 bar
2 -
1 measurement hose DN2 1215/1620, L = 1,5m, 630 bar
3 -
2 measurement hoses DN2 1620/1620, L = 1,5m, 630 bar
4 -
2 gauge adaptors 1620
FUNCTIONS:
• Gauge function
: the display allows the following combinations:
⇒ The upstream pressure temperature at +/- 2°C
⇒
The upstream temperature P1 with its mini and maxi (700bar
in class 0.1)
⇒
Downstream pressure P2 with its min. and max. (700 bar
in class 0.1)
⇒ Di erential pressure P=P1-P
• Hold function
: The user can freeze the screen display at any
time to take notes
• Unit function
: The user can change the unit of measurement
at any time (bar, psi, kPa, mCe).
• Function Tare: Enables o set to zero
• Leak test function
: Can measure a pressure variation over a
speci ed time
• Record function
: A maximum of 16000 readings can be recorded.
The sampling period can be con gured.
• Reset function: The 2 sensors are reset to zero
