Manitou MT 625 H 75K ST5 S1 User Manual

2 - 31
B
C
A
F E G
G
G
D
A
13 - CIGARETTE LIGHTER
For12 V appliance and max. amperage15A.

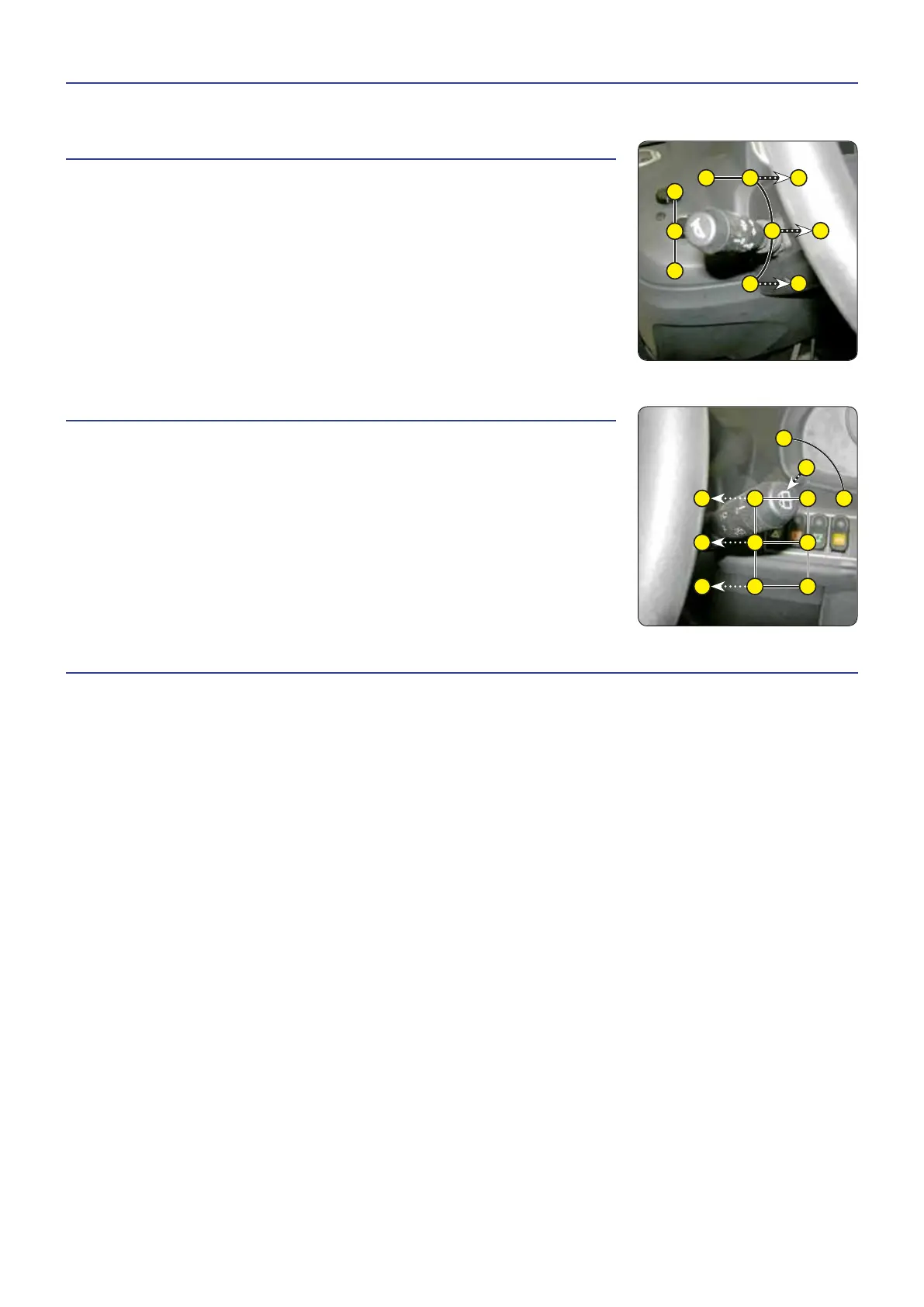

14 - LIGHTING, HORN AND INDICATOR SWITCH
The switch controls the visual and sound alarms.
• A-All lights are off, the indicator lights do not flash.
• B-The right hand indicator lights flash.
• C-The left hand indicator lights flash.
• D-Sidelights and rear lights on.
• E-The dipped headlights and the rear lights are on.
• F-The main beam headlights and the rear lights are on.
• G-Headlight signalling.
Pressing the end of the switch sounds the horn.
NOTE: Positions D-E-F-G can be used without switching on the ignition.
15 - FRONT AND REAR WINDSCREEN WIPER SWITCH
FRONT WINDSCREEN WIPER
• A-Front windscreen wiper stop.
• B-Front windscreen wiper low speed.
• C-Front windscreen wiper high speed.
• D-Front windscreen wiper intermittent.
• E-Front windscreen washer by pressing.
REAR WINDSCREEN WIPER
• F-Rear windscreen wiper stop.
• G-Rear windscreen wiper.
• H-Rear windscreen washer by pressing.
16 - FUNCTION FILES
These files contain, among other things, the description of the hydraulic controls and the load charts for the attachments
used on the lift truck.
B
A
C
E
E
E
A
D
C
F
G
H
647732 (31/10/2019) MT 625 H 75K ST5 S1 / MT 625 H 75K COMFORT ST5 S1
