AIR SYSTEM FILTER
Folio 1037-2

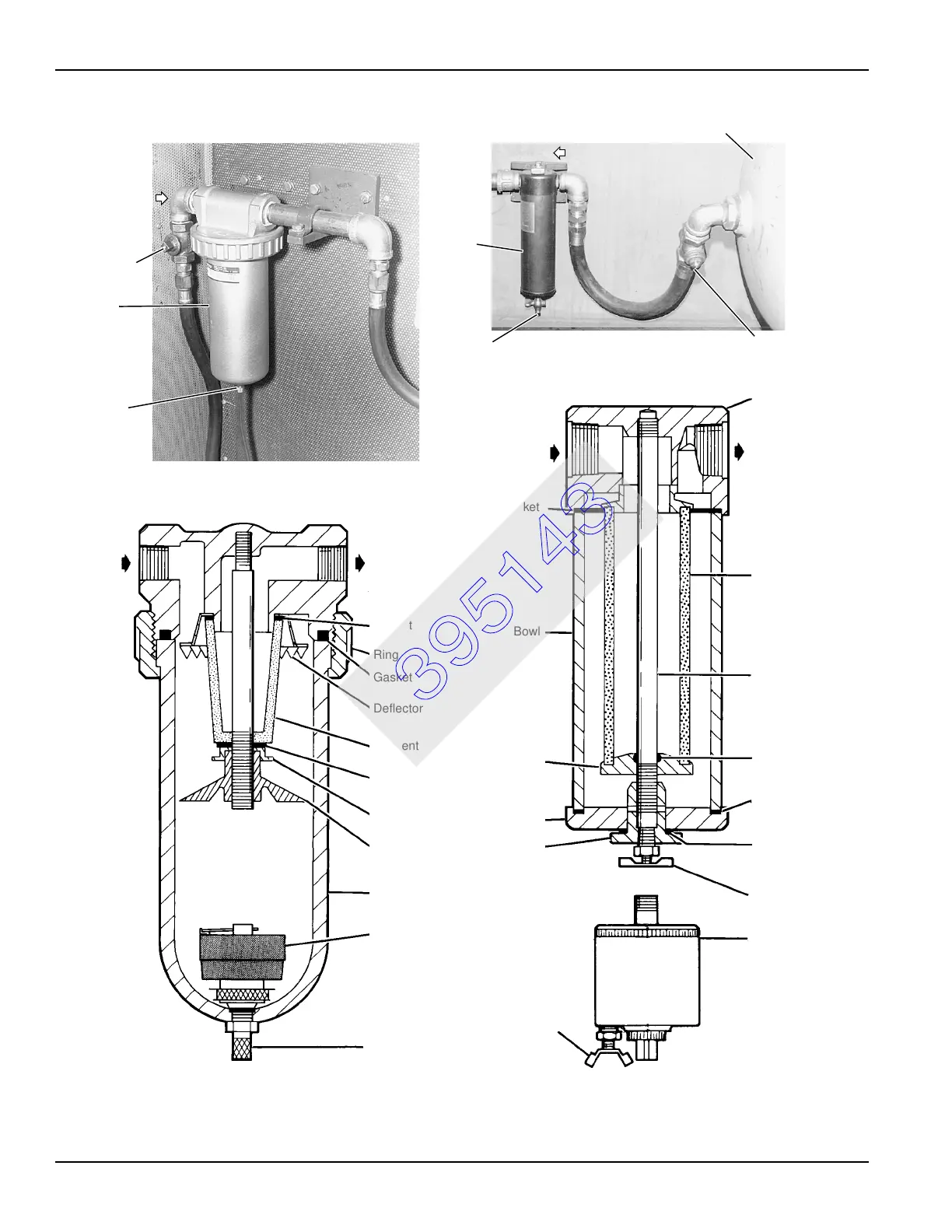

FIGURE 1
Watts Air Filter
Manual Drain Valve
Gasket
Ring
Gasket
Deflector
Element
Gasket
Secondary Baffle
Primary Baffle
Bowl
Gasket
Bowl
Element
Retainer
Base
Nut
Manual
Drain Valve
Automatic
Drain
(if equipped)
Air
OUT
Air
IN
Balston Air Filter
Head
Air
OUT
Air
Element
Stud
O-Ring
Gasket
O-Ring
Manual
Drain Valve
OR
Automatic
Drain Valve
IN
Shut-Off
Valve
Air
Filter
Manual
Drain
Valve
Air
IN
Air Tank
Air
Filter
Manual
Drain Valve
Shut-Off
Valve
P307
S128
S129
P308
Air
IN
