Manitowoc 3900W - Worksheet D - Determining Total Load and Maximum Working Radius from Lower Boom Point with Luffing Jib Attached

CAPACITY CHART INFORMATION
F2081-6

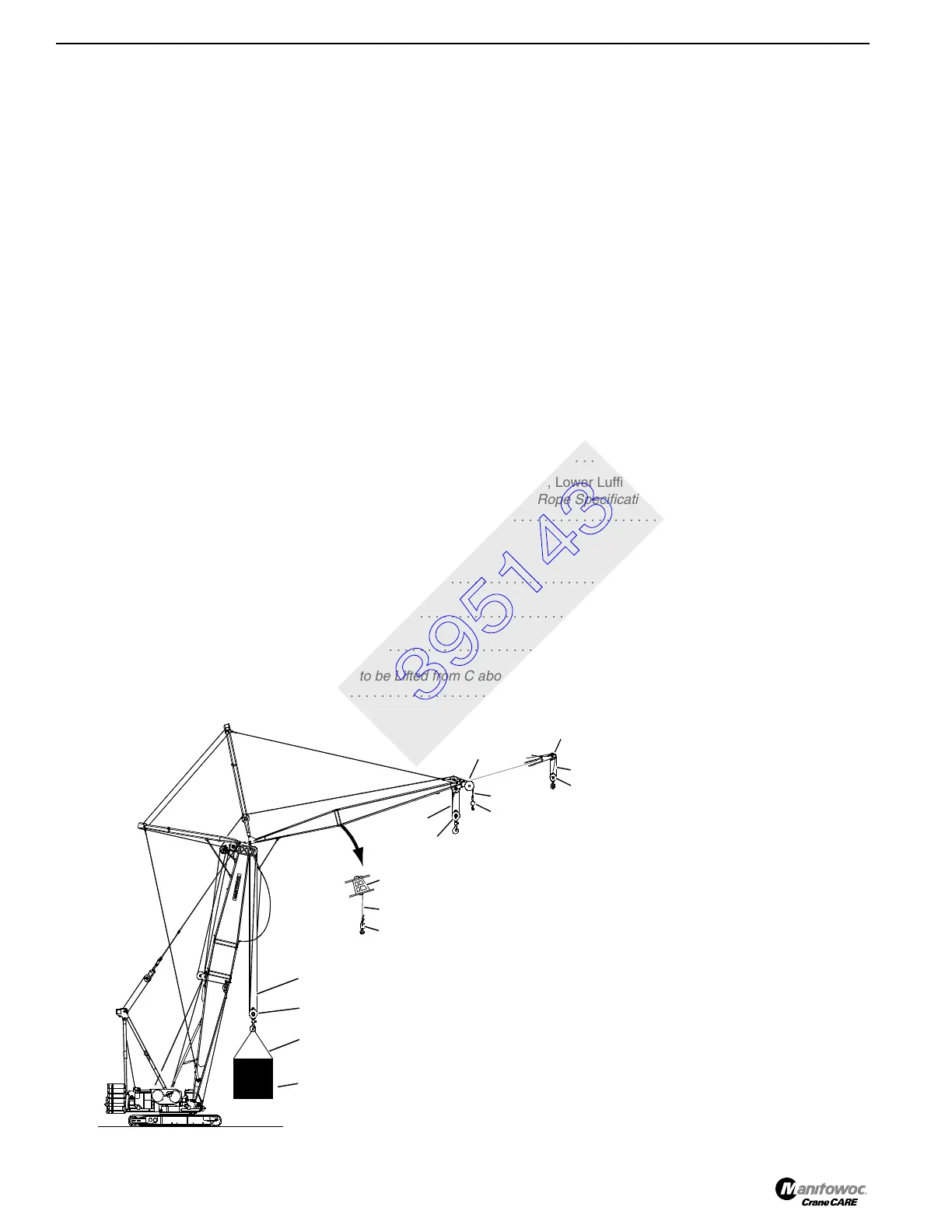

Worksheet D – Determining Total Load and Maximum Working Radius From Lower Boom Point with Luffing Jib Attached
(see Note 1:)
DESCRIPTION WEIGHT
Component Weights
1 Load Block/Hook and Weight Ball Below Lower Boom Point (see Note 2:). . . . . . . . . . . . . . . . . . . . . . . .
___________
2 Fixed Jib (see Jib Deduct Table in capacity chart) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
3 Load Block/Hook and Weight Ball (below fixed jib point, if installed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
4 Upper Luffing Jib Point (from capacity chart if noted) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
5 Load Block/Hook and Weight Ball (below upper luffing jib point, if installed) . . . . . . . . . . . . . . . . . . . . . . .
___________
6 Load Block/Hook and Weight Ball (below lower luffing jib point, if installed) . . . . . . . . . . . . . . . . . . . . . . .
___________
7 Intermediate Fall Point (see Intermediate Fall Deduct Table in capacity chart) . . . . . . . . . . . . . . . . . . . . .
___________
8 Load Block/Hook and Weight Ball (below intermediate fall point) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
9
Total Weight of Slings and Other Lifting Equipment Below Fixed Jib Point, Upper Luffing Jib Point, Lower
Luffing Jib Point, Intermediate Fall Point, and Lower Boom Point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
1
0
Total Weight of Wire Rope Below Fixed Jib Point, Upper Luffing Jib Point, Lower Luffing Jib Point,
Intermediate Fall Point, and Lower Boom Point
(see Load Line or Wire Rope Specifications Chart for
weight of wire rope)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
Totals
A Total Component Weights (ADD items 1-10 above) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
B Weight of Load to be Lifted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
C Total Load to be Lifted (ADD A and B above) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
D
Maximum Working Radius (for Total Load to be Lifted from C above — see
correct capacity chart)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
A922
1
10
10
6, 9
5, 9
10
B
9
Note 1: For most applications, weight of luffing jib and a certain
amount of weight below lower luffing jib point have
been included in boom capacity determination and do
not have to be added to total load.
See capacity chart
for detailed information
.
Note 2: Depending on jib length, some lower boom point
sheaves may have to be removed.
See capacity chart
for detailed information
.
7
8, 9
10
4
3, 9
10
2
B
