CAPACITY CHART INFORMATION
F2081-16
OPERATING RADIUS
OPERATING RADIUS is the horizontal distance from the
crane’s centerline of rotation to the center of the freely
suspended load line or load block.

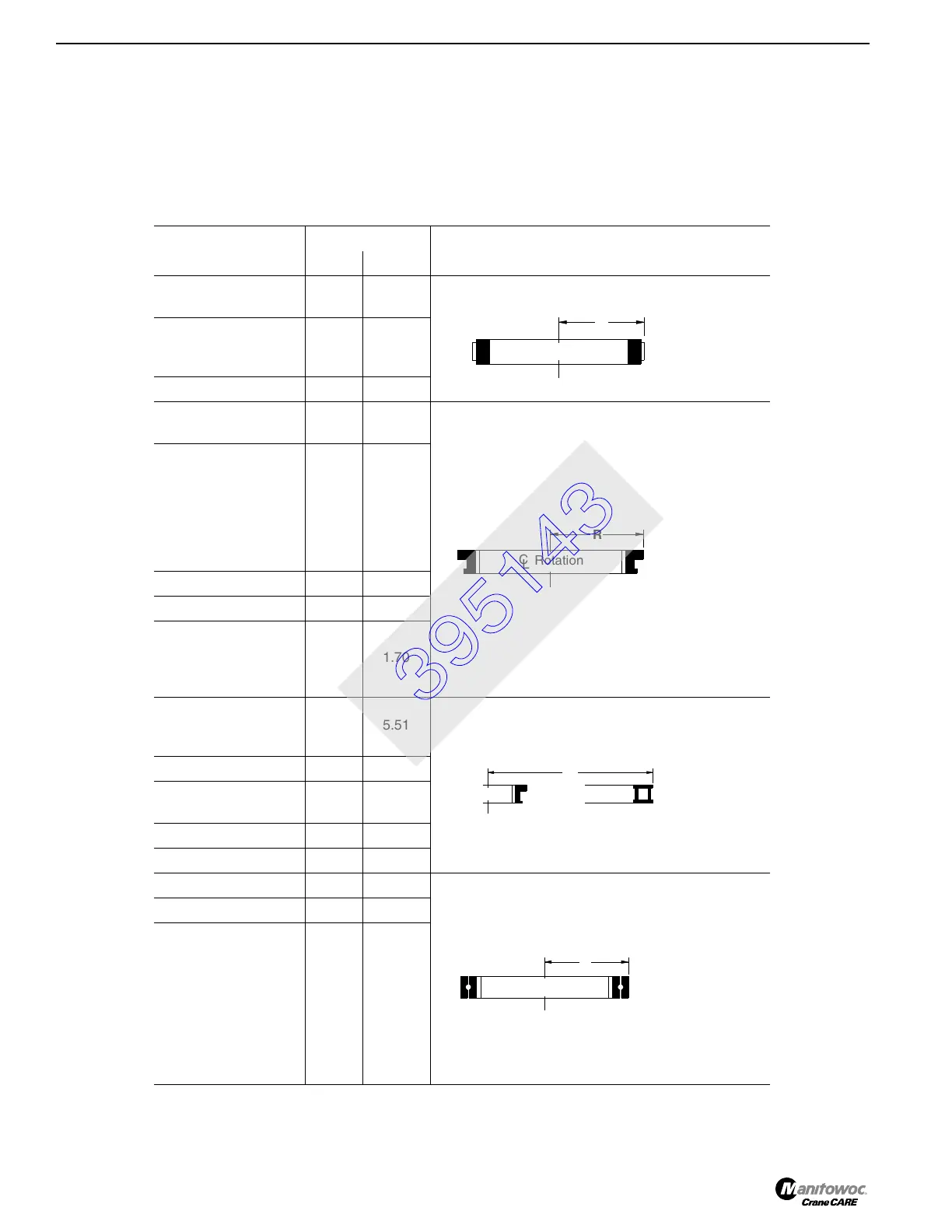

The centerline of rotation is difficult to locate. Therefore,
deduct the radius (R) given in the table from the operating
radius given on the capacity chart. Then measure from the
point indicated in the appropriate illustration to the center of
the load line or load block.
This practice will eliminate the need to find the crane’s
centerline of rotation when measuring operating radius.
Model
Radius – R
Identification
ft-in. meters
2000
2300
2-7 0.79
3000
3000W
3600
3-2 0.96
888 4-6 1.37
2900T
2900WC
3-7 1.09
3900
3900T
3900W or WT
3950D
3950W or WT
4000
4000W
4-5 1.35
4100W 4-6 1.37
4600 S-1, 2, 3 5-6 1.68
4600 S-4, 5
6000W
6000 S-2
6400
5-7 1.70
4000W RINGER®
4100W RINGER
36' P.R.
18-1 5.51
7000 18-4 5.59
4600 RINGERS
60' P.R.
30-0 9.14
M-1200 RINGER 30-2 9.19
888 RINGER 22-7 6.88
M-50W 2-4 0.71
M-80W 2-9 0.84
M-65SC
M-65T
M-65W
M-85T
M-85W
111
180
222
222 Wagon
2-8 0.81
A921
Outside Edge
of Ring Gear
R
C
L
Rotation
C
L
Rotation
R
Outside Edge
of Roller Path
C
L
Rotation
R
To p O uts id e
Edge of
Roller Path
R
C
L
Rotation
Outside Edge
of Turntable
Bearing
395143
