Manitowoc 3900W - Worksheet K - Determining Total Load and Maximum Working Radius from Tower Intermediate Fall

CAPACITY CHART INFORMATION
F2081-12

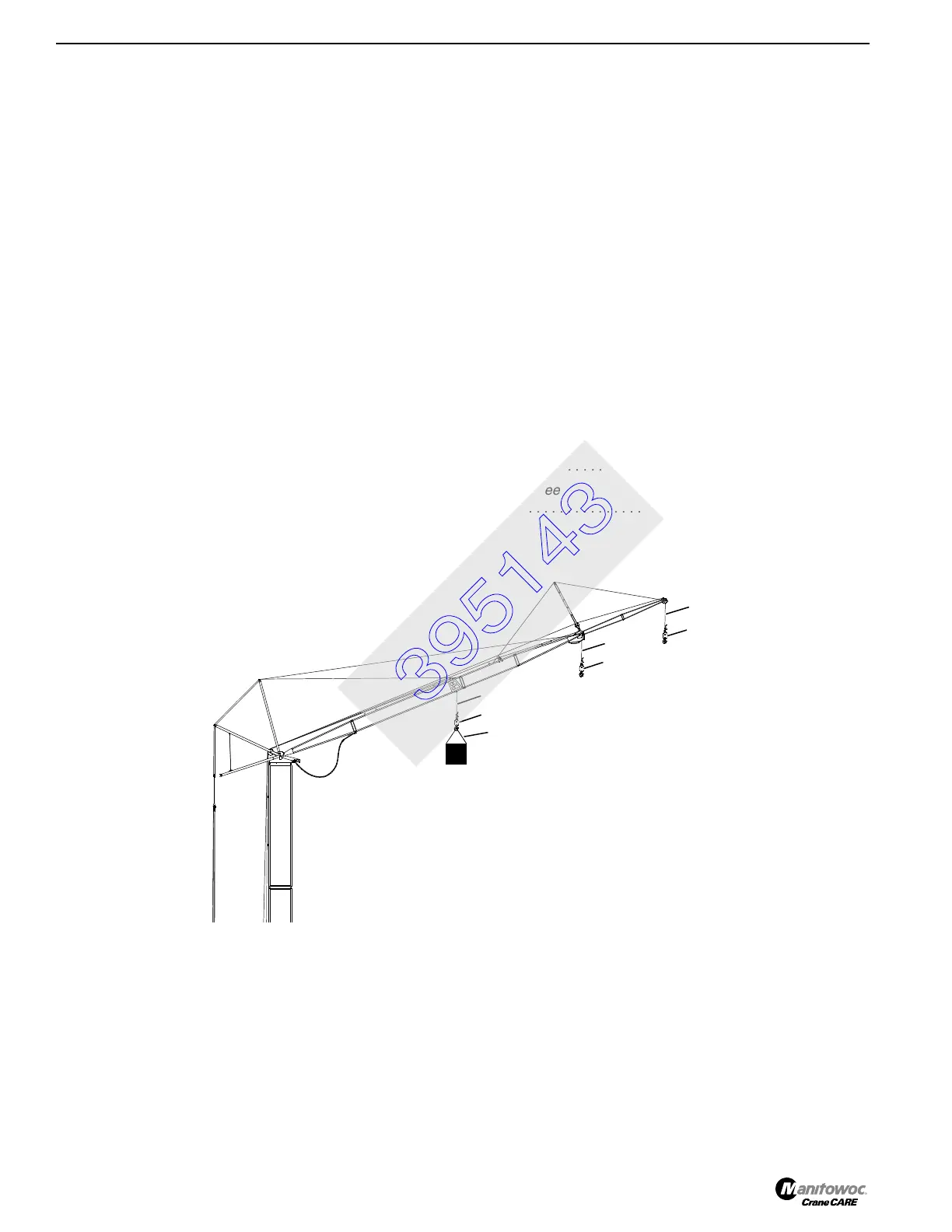

Worksheet K – Determining Total Load and Maximum Working Radius From Tower Intermediate Fall
(see Note 1:)
DESCRIPTION WEIGHT
Component Weights
1 Load Block/Hook and Weight Ball
(below jib point, if installed) (see Note 1:) . . . . . . . . . . . . . . . . . . . . . .
___________
2 Load Block/Hook and Weight Ball (below boom point, if installed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
3 Load Block/Hook and Weight Ball (below intermediate fall) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
4 Total Weight of Slings and Other Lifting Equipment Below Jib Point, Boom Point, and
Intermediate Fall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
5 Total Weight of Wire Rope Below Jib Point, Boom Point, and Intermediate Fall (see
Load Line or Wire Rope Specifications Chart for weight of wire rope)
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
Totals
A Total Component Weights
(ADD items 1-5 above) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
B Weight of Load to be Lifted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
C Total Load to be Lifted (ADD A and B above) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
D Maximum Working Radius (for Total Load to be Lifted from C above — see
correct capacity chart)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
___________
Note 1: Weight of jib has been included in
capacity determination and does not
require deduction.
