Manitowoc 3900W - Worksheet J - Determining Total Load and Maximum Working Radius Tower Jib Point

F2081-11
CAPACITY CHART INFORMATION

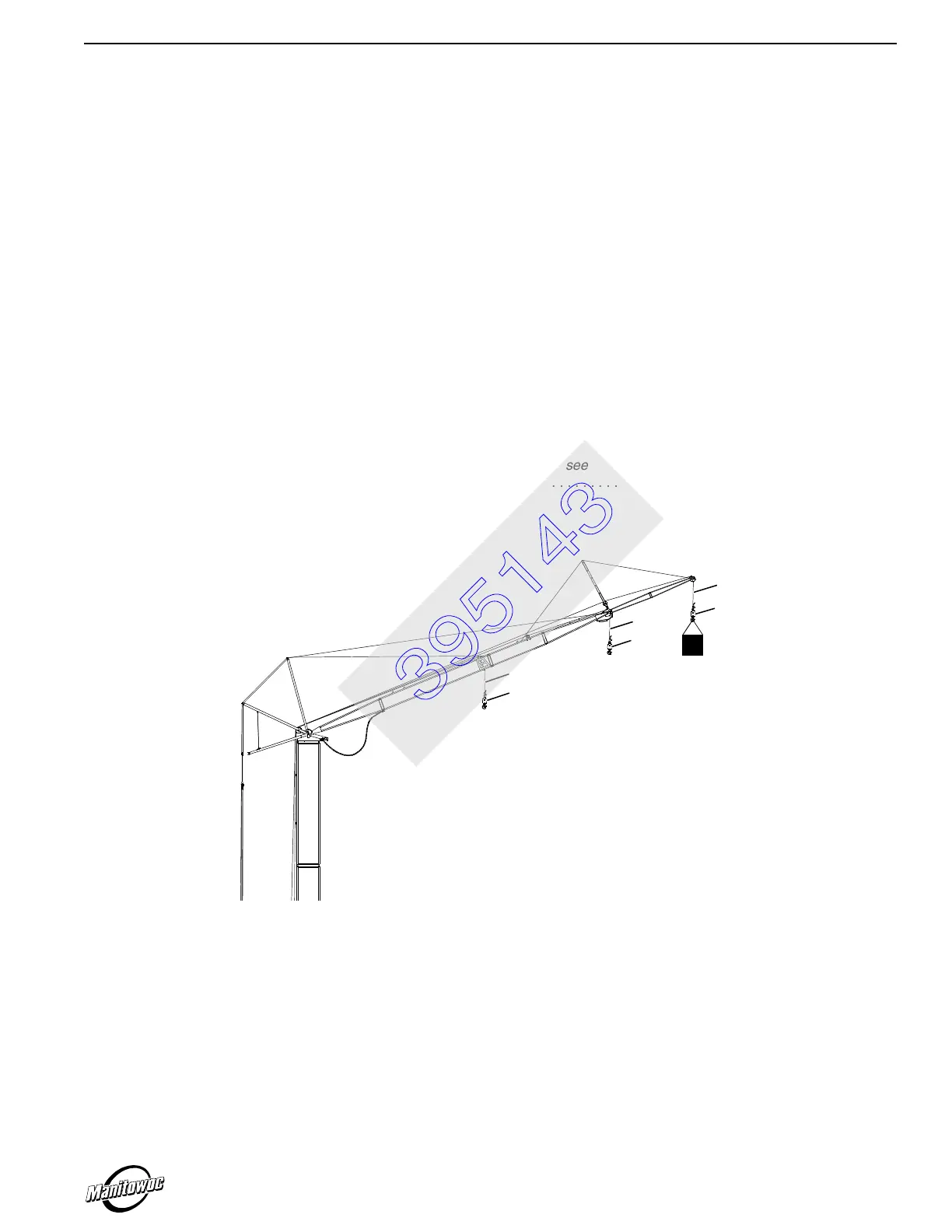

Worksheet J – Determining Total Load and Maximum Working Radius Tower Jib Point
DESCRIPTION WEIGHT
Component Weights
1 Load Block/Hook and Weight Ball
(below jib point) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
__________
2 Load Block/Hook and Weight Ball (below boom point, if installed) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
__________
3 Load Block/Hook and Weight Ball (below intermediate fall, if installed) . . . . . . . . . . . . . . . . . . . . . . . . . . .
__________
4 Total Weight of Slings and Other Lifting Equipment Below Jib Point, Boom Point, and
Intermediate Fall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
__________
5 Total Weight of Wire Rope Below Jib Point, Boom Point, and Intermediate Fall (see
Load Line or Wire Rope Specifications Chart for weight of wire rope)
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
__________
Totals
A Total Component Weights
(ADD items 1-5 above) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
__________
B Weight of Load to be Lifted. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
__________
C Total Load to be Lifted (ADD A and B above) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
__________
D Maximum Working Radius (for Total Load to be Lifted from C above — see
correct capacity chart)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
__________
5
5
1, 4
5
2, 4
A922
B
3, 4
395143
